LT1034CZ-2.5 - Micropower Dual Reference
LT1034 - Micropower Dual Reference - Linear Technology（凌力尔特）
Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete
Download Complete Datasheet for Details

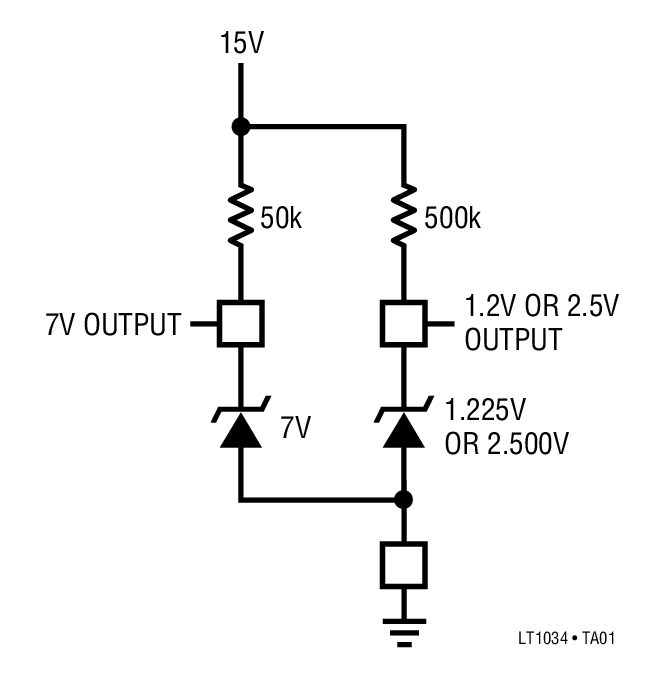

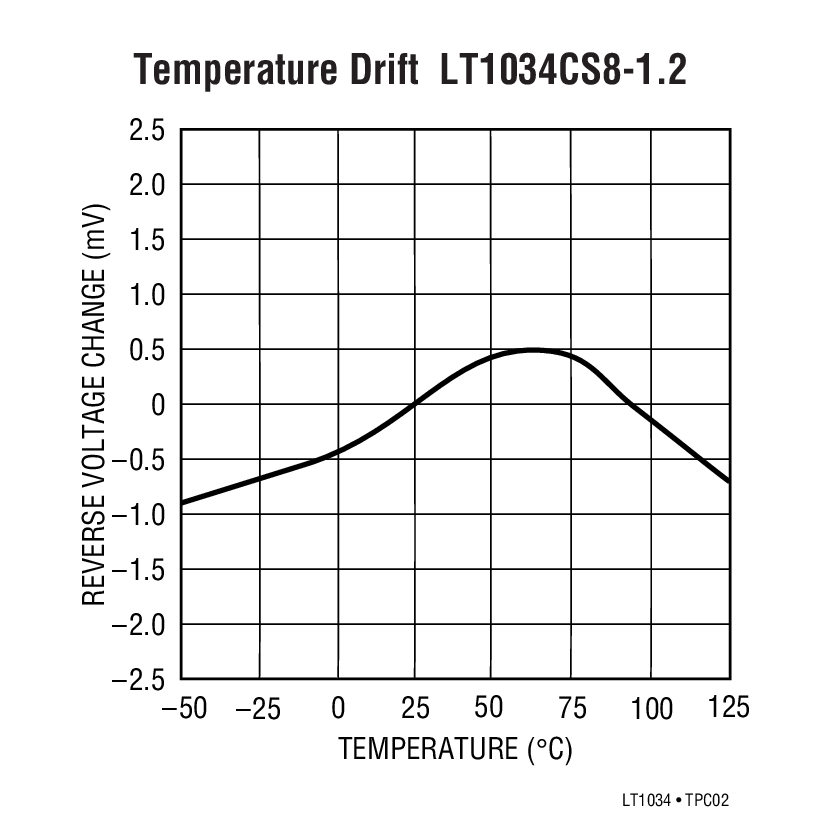

The LT1034 is a micropower, precision 1.2V/2.5 reference combined with a 7V auxiliary reference. The 1.2V/2.5V reference is a trimmed, thin-film, band-gap, voltage reference with 1% initial tolerance and guaranteed 20ppm/°C temperature drift. Operating on only 20µA, the LT1034 offers guaranteed drift, low temperature cycling hysteresis and good long-term stability. The low dynamic impedance makes the LT1034 easy to use from unregulated supplies. The 7V reference is a subsurface zener device for less demanding applications.
The LT1034 reference can be used as a high performance upgrade of the LM385 or LT1004, where guaranteed temperature drift is desired.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1034BCZ-1.2 | TO-92 | C | $3.33 | $2.75 |
| LT1034BCZ-1.2#PBF | TO-92 | C | $3.33 | $2.75 |
| LT1034BCZ-1.2#TR | TO-92 | C | $2.81 | |
| LT1034BCZ-1.2#TRPBF | TO-92 | C | $2.81 | |
| LT1034BCZ-2.5 | TO-92 | C | $3.33 | $2.75 |
| LT1034BCZ-2.5#PBF | TO-92 | C | $3.33 | $2.75 |
| LT1034BCZ-2.5#TR | TO-92 | C | $2.81 | |
| LT1034BCZ-2.5#TRPBF | TO-92 | C | $2.81 | |
| LT1034BIZ-1.2 | TO-92 | I | $5.83 | $4.75 |
| LT1034BIZ-1.2#PBF | TO-92 | I | $5.83 | $4.75 |
| LT1034BIZ-1.2#TR | TO-92 | I | $4.81 | |
| LT1034BIZ-1.2#TRPBF | TO-92 | I | $4.81 | |
| LT1034BIZ-2.5 | TO-92 | I | $5.83 | $4.75 |
| LT1034BIZ-2.5#PBF | TO-92 | I | $5.83 | $4.75 |
| LT1034BIZ-2.5#TR | TO-92 | I | $4.81 | |
| LT1034BIZ-2.5#TRPBF | TO-92 | I | $4.81 | |
| LT1034CS8-1.2 | SO-8 | C | $3.00 | $2.35 |
| LT1034CS8-1.2#PBF | SO-8 | C | $3.00 | $2.35 |
| LT1034CS8-1.2#TR | SO-8 | C | $2.41 | |
| LT1034CS8-1.2#TRPBF | SO-8 | C | $2.41 | |
| LT1034CS8-2.5 | SO-8 | C | $3.00 | $2.35 |
| LT1034CS8-2.5#PBF | SO-8 | C | $3.00 | $2.35 |
| LT1034CS8-2.5#TR | SO-8 | C | $2.41 | |
| LT1034CS8-2.5#TRPBF | SO-8 | C | $2.41 | |
| LT1034CZ-1.2 | TO-92 | C | $2.50 | $2.05 |
| LT1034CZ-1.2#PBF | TO-92 | C | $2.50 | $2.05 |
| LT1034CZ-1.2#TR | TO-92 | C | $2.11 | |
| LT1034CZ-1.2#TRPBF | TO-92 | C | $2.11 | |
| LT1034CZ-2.5 | TO-92 | C | $2.50 | $2.05 |
| LT1034CZ-2.5#PBF | TO-92 | C | $2.50 | $2.05 |
| LT1034CZ-2.5#TR | TO-92 | C | $2.11 | |
| LT1034CZ-2.5#TRPBF | TO-92 | C | $2.11 | |
| LT1034IS8-1.2 | SO-8 | I | $4.17 | $3.30 |
| LT1034IS8-1.2#PBF | SO-8 | I | $4.17 | $3.30 |
| LT1034IS8-1.2#TR | SO-8 | I | $3.36 | |
| LT1034IS8-1.2#TRPBF | SO-8 | I | $3.36 | |
| LT1034IS8-2.5 | SO-8 | I | $4.17 | $3.30 |
| LT1034IS8-2.5#PBF | SO-8 | I | $4.17 | $3.30 |
| LT1034IS8-2.5#TR | SO-8 | I | $3.36 | |
| LT1034IS8-2.5#TRPBF | SO-8 | I | $3.36 | |
| LT1034IZ-1.2 | TO-92 | I | $3.58 | $2.95 |
| LT1034IZ-1.2#PBF | TO-92 | I | $3.58 | $2.95 |
| LT1034IZ-1.2#TR | TO-92 | I | $3.01 | |
| LT1034IZ-1.2#TRPBF | TO-92 | I | $3.01 | |
| LT1034IZ-2.5 | TO-92 | I | $3.58 | $2.95 |
| LT1034IZ-2.5#PBF | TO-92 | I | $3.58 | $2.95 |
| LT1034IZ-2.5#TR | TO-92 | I | $3.01 | |
| LT1034IZ-2.5#TRPBF | TO-92 | I | $3.01 |
