LT1034IZ-2.5是Micropower Dual Reference

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1034IZ-2.5

LT1034IZ-2.5技术文档下载：

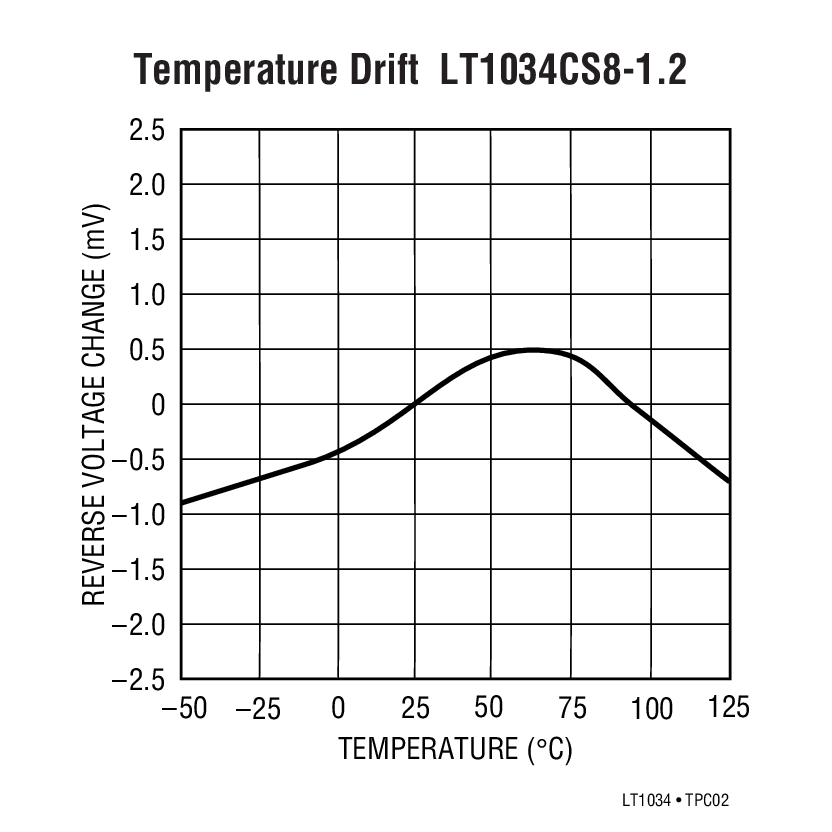

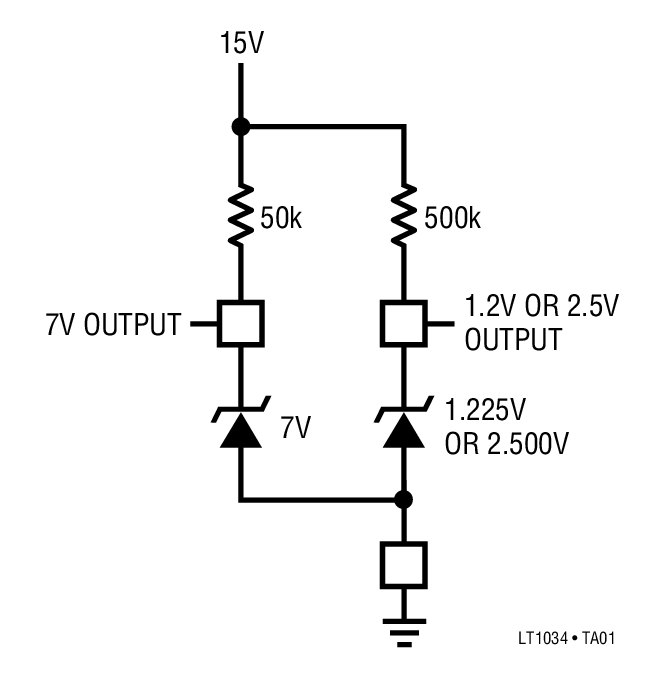

LT1034IZ-2.5 - 典型应用图例：

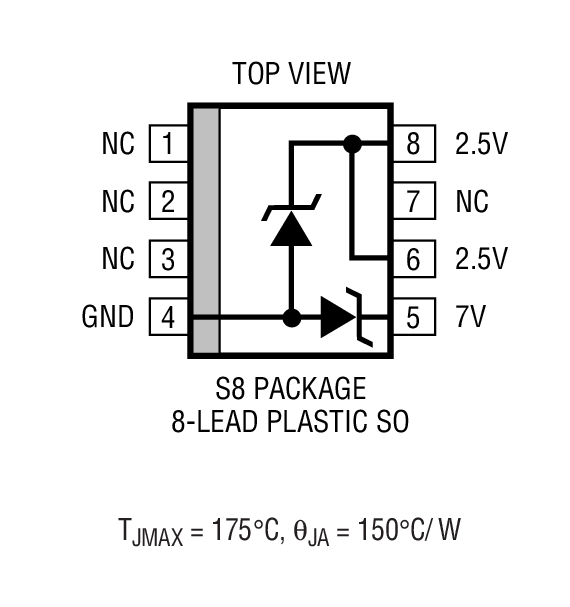

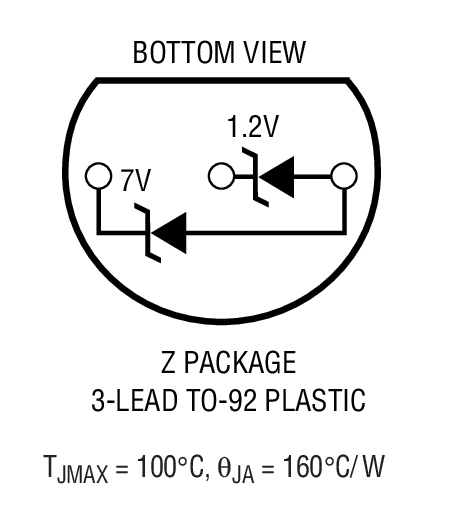

LT1034IZ-2.5 - 封装图解：

LT1034IZ-2.5 - LT1034IZ-2.5是Micropower Dual Reference

LT1034IZ-2.5是Linear公司的一款并联基准产品，LT1034IZ-2.5是Micropower Dual Reference，本站介绍了LT1034IZ-2.5的封装应用图解、特点和优点、功能等，并给出了与LT1034IZ-2.5相关的凌力尔特元器件型号供参考。

LT1034IZ-2.5 - Micropower Dual Reference

LT1034 - Micropower Dual Reference - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download Complete Datasheet for Details

The LT1034 is a micropower, precision 1.2V/2.5 reference combined with a 7V auxiliary reference. The 1.2V/2.5V reference is a trimmed, thin-film, band-gap, voltage reference with 1% initial tolerance and guaranteed 20ppm/°C temperature drift. Operating on only 20µA, the LT1034 offers guaranteed drift, low temperature cycling hysteresis and good long-term stability. The low dynamic impedance makes the LT1034 easy to use from unregulated supplies. The 7V reference is a subsurface zener device for less demanding applications.

The LT1034 reference can be used as a high performance upgrade of the LM385 or LT1004, where guaranteed temperature drift is desired.

特点

Guaranteed 20 ppm/°C Drift

1.2V 1% Initial Tolerance

20µA to 20mA Operation

1 ohms Dynamic Impedance

7V, 100µA Reference

应用

Portable Meters

Precision Regulators

Calibrators

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1034BCZ-1.2	TO-92	C	$3.33	$2.75
LT1034BCZ-1.2#PBF	TO-92	C	$3.33	$2.75
LT1034BCZ-1.2#TR	TO-92	C		$2.81
LT1034BCZ-1.2#TRPBF	TO-92	C		$2.81
LT1034BCZ-2.5	TO-92	C	$3.33	$2.75
LT1034BCZ-2.5#PBF	TO-92	C	$3.33	$2.75
LT1034BCZ-2.5#TR	TO-92	C		$2.81
LT1034BCZ-2.5#TRPBF	TO-92	C		$2.81
LT1034BIZ-1.2	TO-92	I	$5.83	$4.75
LT1034BIZ-1.2#PBF	TO-92	I	$5.83	$4.75
LT1034BIZ-1.2#TR	TO-92	I		$4.81
LT1034BIZ-1.2#TRPBF	TO-92	I		$4.81
LT1034BIZ-2.5	TO-92	I	$5.83	$4.75
LT1034BIZ-2.5#PBF	TO-92	I	$5.83	$4.75
LT1034BIZ-2.5#TR	TO-92	I		$4.81
LT1034BIZ-2.5#TRPBF	TO-92	I		$4.81
LT1034CS8-1.2	SO-8	C	$3.00	$2.35
LT1034CS8-1.2#PBF	SO-8	C	$3.00	$2.35
LT1034CS8-1.2#TR	SO-8	C		$2.41
LT1034CS8-1.2#TRPBF	SO-8	C		$2.41
LT1034CS8-2.5	SO-8	C	$3.00	$2.35
LT1034CS8-2.5#PBF	SO-8	C	$3.00	$2.35
LT1034CS8-2.5#TR	SO-8	C		$2.41
LT1034CS8-2.5#TRPBF	SO-8	C		$2.41
LT1034CZ-1.2	TO-92	C	$2.50	$2.05
LT1034CZ-1.2#PBF	TO-92	C	$2.50	$2.05
LT1034CZ-1.2#TR	TO-92	C		$2.11
LT1034CZ-1.2#TRPBF	TO-92	C		$2.11
LT1034CZ-2.5	TO-92	C	$2.50	$2.05
LT1034CZ-2.5#PBF	TO-92	C	$2.50	$2.05
LT1034CZ-2.5#TR	TO-92	C		$2.11
LT1034CZ-2.5#TRPBF	TO-92	C		$2.11
LT1034IS8-1.2	SO-8	I	$4.17	$3.30
LT1034IS8-1.2#PBF	SO-8	I	$4.17	$3.30
LT1034IS8-1.2#TR	SO-8	I		$3.36
LT1034IS8-1.2#TRPBF	SO-8	I		$3.36
LT1034IS8-2.5	SO-8	I	$4.17	$3.30
LT1034IS8-2.5#PBF	SO-8	I	$4.17	$3.30
LT1034IS8-2.5#TR	SO-8	I		$3.36
LT1034IS8-2.5#TRPBF	SO-8	I		$3.36
LT1034IZ-1.2	TO-92	I	$3.58	$2.95
LT1034IZ-1.2#PBF	TO-92	I	$3.58	$2.95
LT1034IZ-1.2#TR	TO-92	I		$3.01
LT1034IZ-1.2#TRPBF	TO-92	I		$3.01
LT1034IZ-2.5	TO-92	I	$3.58	$2.95
LT1034IZ-2.5#PBF	TO-92	I	$3.58	$2.95
LT1034IZ-2.5#TR	TO-92	I		$3.01
LT1034IZ-2.5#TRPBF	TO-92	I		$3.01
