LT1634CCZ-5技术文档下载：

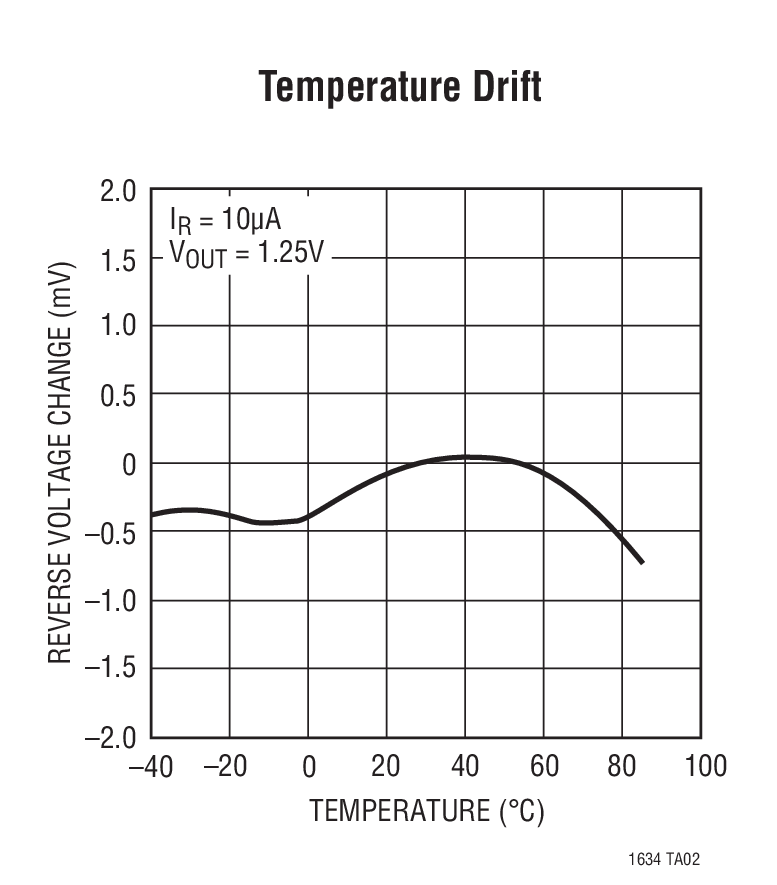

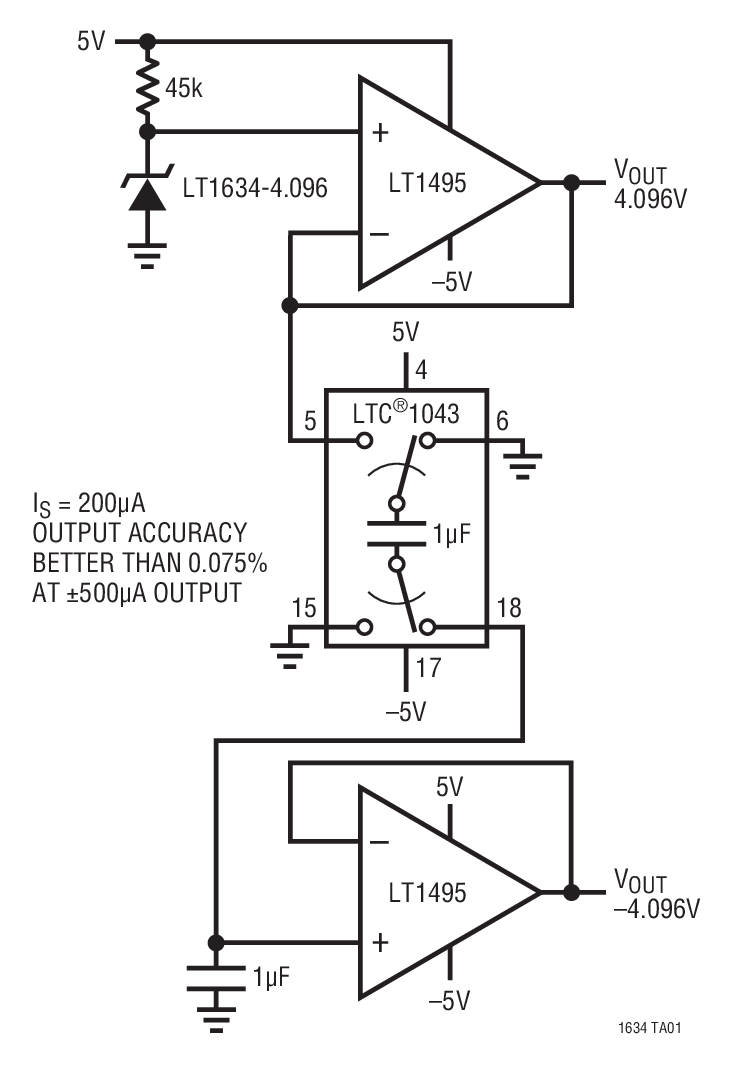

LT1634CCZ-5 - 典型应用图例：

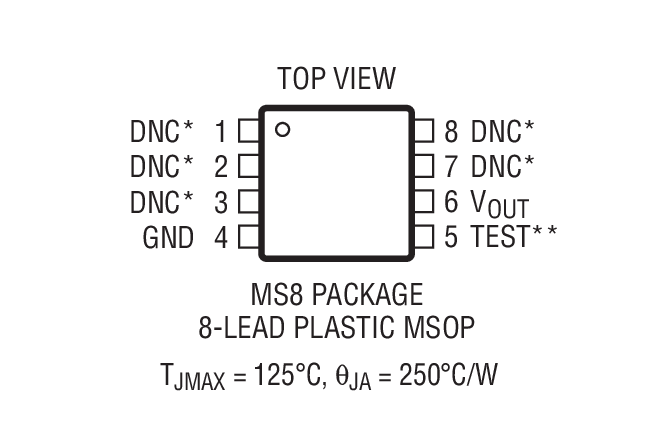

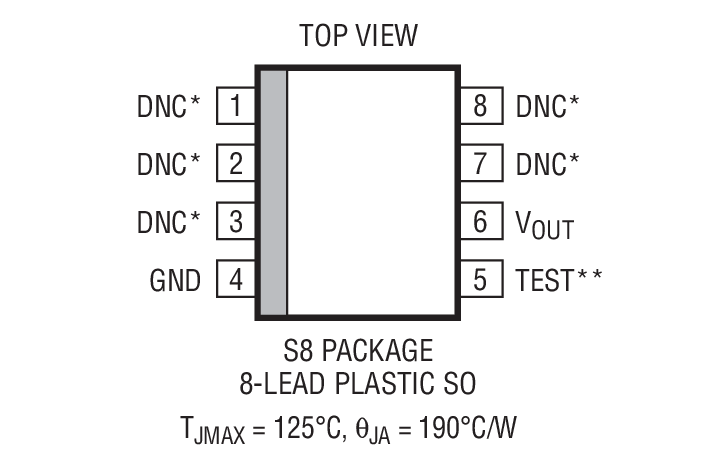

LT1634CCZ-5 - 封装图解：
LT1634CCZ-5 - LT1634CCZ-5是微功率精准并联电压基准
LT1634CCZ-5是Linear公司的一款并联基准产品，LT1634CCZ-5是微功率精准并联电压基准，本站介绍了LT1634CCZ-5的封装应用图解、特点和优点、功能等，并给出了与LT1634CCZ-5相关的凌力尔特元器件型号供参考。
LT1634CCZ-5 - 微功率精准并联电压基准
LT1634 - 微功率精准并联电压基准 - Linear Technology（凌力尔特）
功能描述
LT1634 是一款微功率、精准、并联电压基准。带隙基准采用经修整的精准薄膜电阻，旨在实现 0.05% 的初始电压准确度。改良的曲率校正方法确保了 10ppm/ºC 的最大温度漂移。设计、加工和封装工艺的进步保证了 10μA 的工作电流和低温循环迟滞。LT1634 不需要使用一个输出补偿电容器，但在采用容性负载时可保持稳定。低动态阻抗使 LT1634 基准能够容易地在采用未稳压电源的情况下使用。
在需要较低功率和保证温度漂移的场合，LT1634 基准可以用作 LM185 / LM385、LT1004 和 LT1034 的一款高性能升级版本。
特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1634ACS8-1.25 | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-1.25#PBF | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-1.25#TR | SO-8 | C | $4.56 | |
| LT1634ACS8-1.25#TRPBF | SO-8 | C | $4.56 | |
| LT1634ACS8-2.5 | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-2.5#PBF | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-2.5#TR | SO-8 | C | $4.56 | |
| LT1634ACS8-2.5#TRPBF | SO-8 | C | $4.56 | |
| LT1634ACS8-4.096 | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-4.096#PBF | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-4.096#TR | SO-8 | C | $4.56 | |
| LT1634ACS8-4.096#TRPBF | SO-8 | C | $4.56 | |
| LT1634ACS8-5 | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-5#PBF | SO-8 | C | $5.10 | $4.50 |
| LT1634ACS8-5#TR | SO-8 | C | $4.56 | |
| LT1634ACS8-5#TRPBF | SO-8 | C | $4.56 | |
| LT1634AIS8-1.25 | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-1.25#PBF | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-1.25#TR | SO-8 | I | $5.01 | |
| LT1634AIS8-1.25#TRPBF | SO-8 | I | $5.01 | |
| LT1634AIS8-2.5 | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-2.5#PBF | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-2.5#TR | SO-8 | I | $5.01 | |
| LT1634AIS8-2.5#TRPBF | SO-8 | I | $5.01 | |
| LT1634AIS8-4.096 | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-4.096#PBF | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-4.096#TR | SO-8 | I | $5.01 | |
| LT1634AIS8-4.096#TRPBF | SO-8 | I | $5.01 | |
| LT1634AIS8-5 | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-5#PBF | SO-8 | I | $5.70 | $4.95 |
| LT1634AIS8-5#TR | SO-8 | I | $5.01 | |
| LT1634AIS8-5#TRPBF | SO-8 | I | $5.01 | |
| LT1634BCMS8-1.25 | MS-8 | C | $2.95 | $2.60 |
| LT1634BCMS8-1.25#PBF | MS-8 | C | $2.95 | $2.60 |
| LT1634BCMS8-1.25#TR | MS-8 | C | $2.66 | |
| LT1634BCMS8-1.25#TRPBF | MS-8 | C | $2.66 | |
| LT1634BCMS8-2.5 | MS-8 | C | $2.95 | $2.60 |
| LT1634BCMS8-2.5#PBF | MS-8 | C | $2.95 | $2.60 |
| LT1634BCMS8-2.5#TR | MS-8 | C | $2.66 | |
| LT1634BCMS8-2.5#TRPBF | MS-8 | C | $2.66 | |
| LT1634BCS8-1.25 | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-1.25#PBF | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-1.25#TR | SO-8 | C | $2.41 | |
| LT1634BCS8-1.25#TRPBF | SO-8 | C | $2.41 | |
| LT1634BCS8-2.5 | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-2.5#PBF | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-2.5#TR | SO-8 | C | $2.41 | |
| LT1634BCS8-2.5#TRPBF | SO-8 | C | $2.41 | |
| LT1634BCS8-4.096 | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-4.096#PBF | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-4.096#TR | SO-8 | C | $2.41 | |
| LT1634BCS8-4.096#TRPBF | SO-8 | C | $2.41 | |
| LT1634BCS8-5 | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-5#PBF | SO-8 | C | $2.75 | $2.35 |
| LT1634BCS8-5#TR | SO-8 | C | $2.41 | |
| LT1634BCS8-5#TRPBF | SO-8 | C | $2.41 | |
| LT1634BIS8-1.25 | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-1.25#PBF | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-1.25#TR | SO-8 | I | $2.91 | |
| LT1634BIS8-1.25#TRPBF | SO-8 | I | $2.91 | |
| LT1634BIS8-2.5 | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-2.5#PBF | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-2.5#TR | SO-8 | I | $2.91 | |
| LT1634BIS8-2.5#TRPBF | SO-8 | I | $2.91 | |
| LT1634BIS8-4.096 | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-4.096#PBF | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-4.096#TR | SO-8 | I | $2.91 | |
| LT1634BIS8-4.096#TRPBF | SO-8 | I | $2.91 | |
| LT1634BIS8-5 | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-5#PBF | SO-8 | I | $3.35 | $2.85 |
| LT1634BIS8-5#TR | SO-8 | I | $2.91 | |
| LT1634BIS8-5#TRPBF | SO-8 | I | $2.91 | |
| LT1634CCZ-1.25 | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-1.25#PBF | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-1.25#TR | TO-92 | C | $2.16 | |
| LT1634CCZ-1.25#TRPBF | TO-92 | C | $2.16 | |
| LT1634CCZ-2.5 | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-2.5#PBF | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-2.5#TR | TO-92 | C | $2.16 | |
| LT1634CCZ-2.5#TRPBF | TO-92 | C | $2.16 | |
| LT1634CCZ-4.096 | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-4.096#PBF | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-4.096#TR | TO-92 | C | $2.16 | |
| LT1634CCZ-4.096#TRPBF | TO-92 | C | $2.16 | |
| LT1634CCZ-5 | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-5#PBF | TO-92 | C | $2.50 | $2.10 |
| LT1634CCZ-5#TR | TO-92 | C | $2.16 | |
| LT1634CCZ-5#TRPBF | TO-92 | C | $2.16 |
