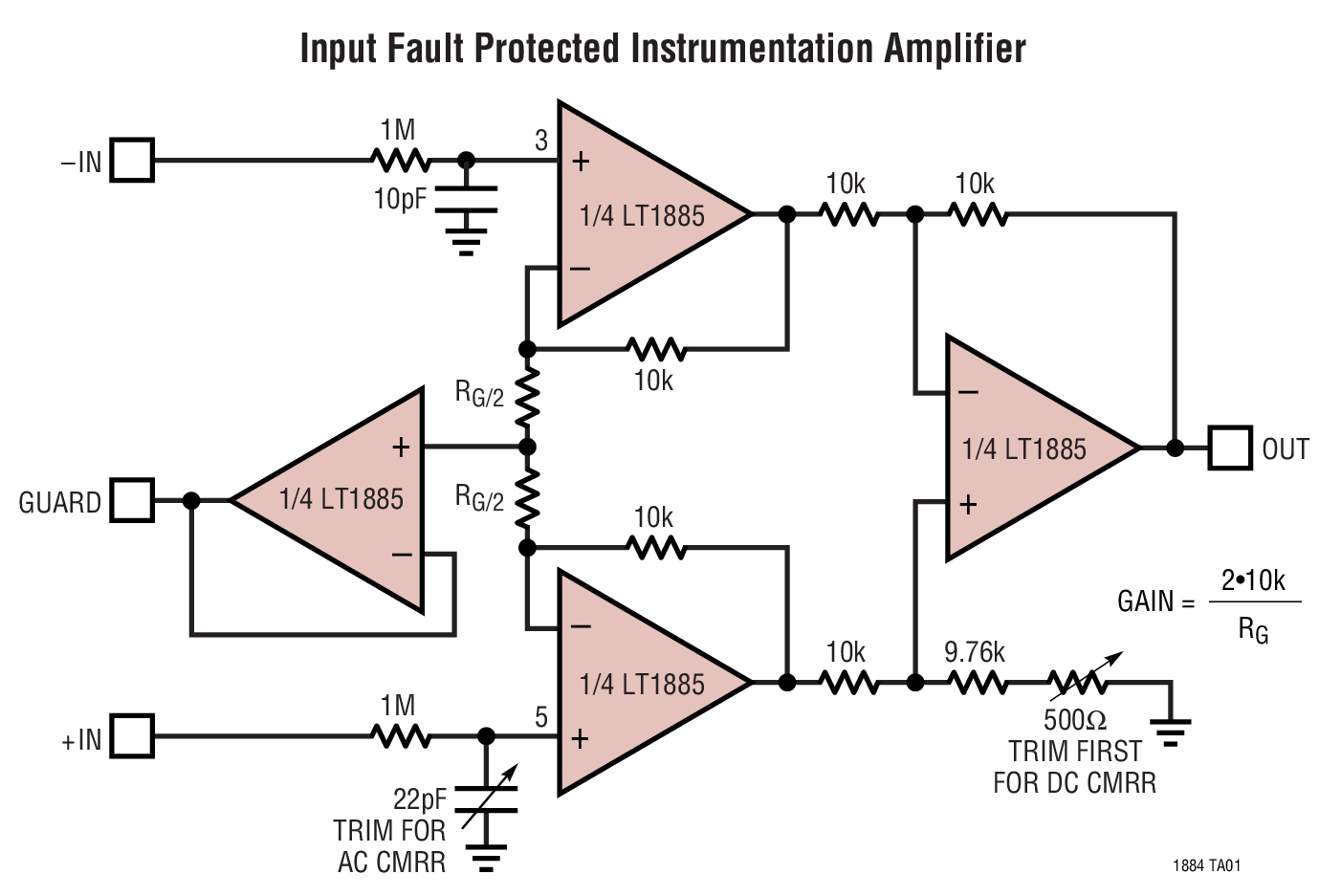

LT1885 - 典型应用图例：

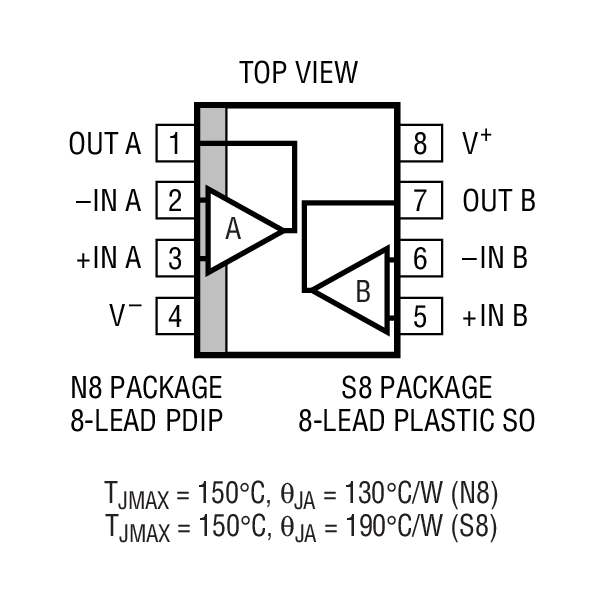

LT1885 - 封装图解：

LT1885 - LT1885是Dual/Quad Rail-to-Rail Output, Picoamp Input Precision Op Amps

LT1885是Linear公司的一款精准放大器产品，LT1885是Dual/Quad Rail-to-Rail Output, Picoamp Input Precision Op Amps，本站介绍了LT1885的封装应用图解、特点和优点、功能等，并给出了与LT1885相关的凌力尔特元器件型号供参考。

LT1885 - Dual/Quad Rail-to-Rail Output, Picoamp Input Precision Op Amps

LT1885 - Dual/Quad Rail-to-Rail Output, Picoamp Input Precision Op Amps - Linear Technology（凌力尔特）

功能描述

The LT?1884/LT1885 op amps bring high accuracy input performance to amplifiers with rail-to-rail output swing while providing faster response than other precision amplifiers. Input offset voltage is trimmed to less than 50μV and the low drift maintains this accuracy over the operating temperature range. Input bias currents are an ultralow 400pA maximum.The amplifiers work on any total power supply voltage between 2.7V and 36V (fully specified from 5V to ±15V). Output voltage swings to within 40mV of the negative supply and 220mV of the positive supply make these amplifiers good choices for low voltage single supply operation.Slew rates of 1V/μs with a supply current of less than 1mA per amplifier give superior response and settling time performance in a low power precision amplifier.The dual LT1884 is available with standard pinouts in 8-pin SO and PDIP packages. The quad LT1885 is also in the standard pinout 14-pin SO package.

特点

Offset Voltage: 50µV Max (LT1884A)

Input Bias Current: 400pA Max (LT1884A)

Offset Voltage Drift: 0.8µV/°C Max

Rail-to-Rail Output Swing

Operates with Single or Split Supplies

Open-Loop Voltage Gain: 1 Million Min

1mA Maximum Supply Current Per Amplifier

Slew Rate: 1V/µs

Standard Pinouts

应用

Thermocouple Amplifiers

Bridge Transducer Conditioners

Instrumentation Amplifiers

Battery-Powered Systems

Photo Current Amplifiers

Precision Integrators

Precision Current Sources

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1885CS	SO-14	C	$6.20	$4.85
LT1885CS#PBF	SO-14	C	$6.20	$4.85
LT1885CS#TR	SO-14	C		$4.91
LT1885CS#TRPBF	SO-14	C		$4.91
LT1885IS	SO-14	I	$7.10	$5.60
LT1885IS#PBF	SO-14	I	$7.10	$5.60
LT1885IS#TR	SO-14	I		$5.66
LT1885IS#TRPBF	SO-14	I		$5.66
