LT6656AIS6-2.5技术文档下载：

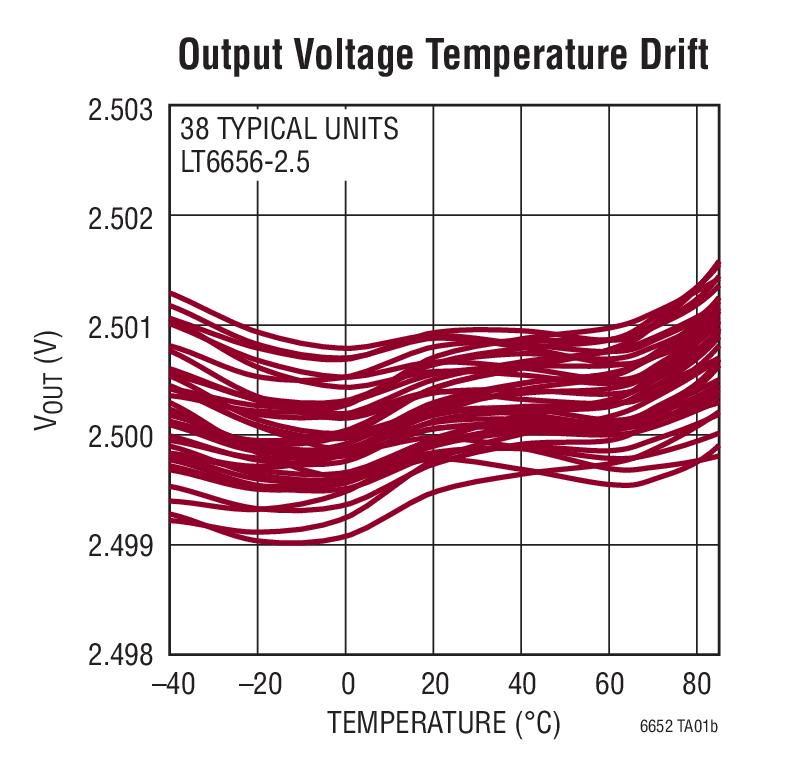

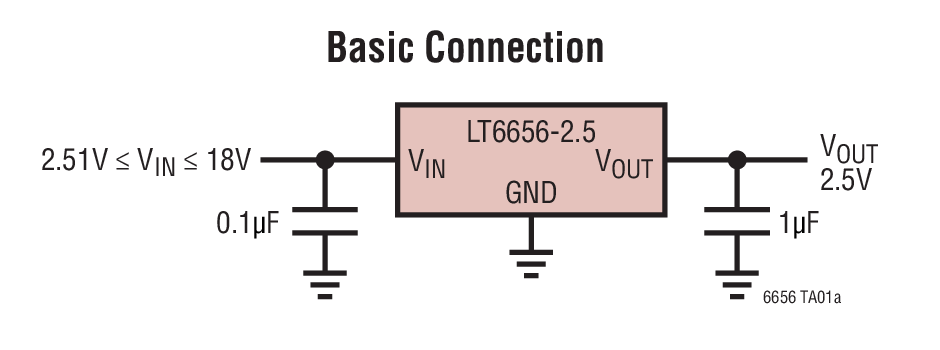

LT6656AIS6-2.5 - 典型应用图例：

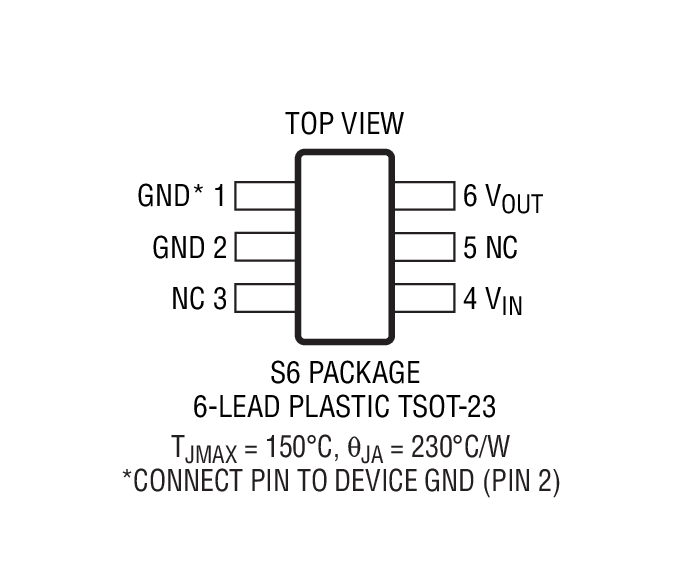

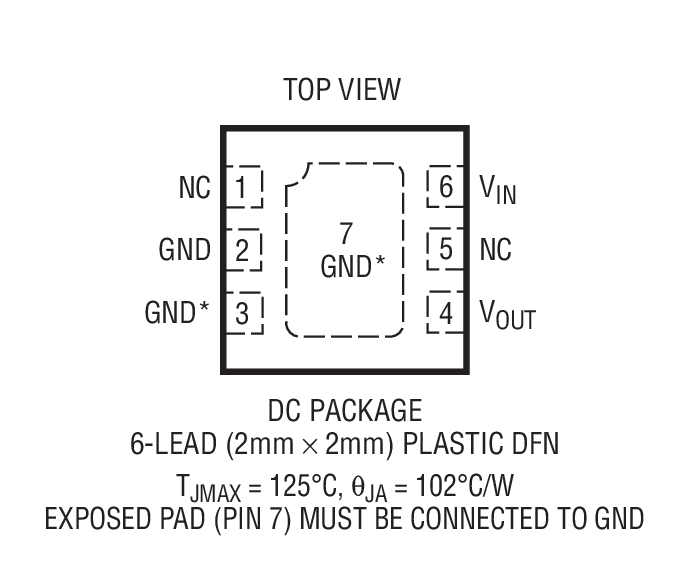

LT6656AIS6-2.5 - 封装图解：
LT6656AIS6-2.5 - LT6656AIS6-2.5是1μA 精准串联电压基准
LT6656AIS6-2.5是Linear公司的一款串联基准产品，LT6656AIS6-2.5是1μA 精准串联电压基准，本站介绍了LT6656AIS6-2.5的封装应用图解、特点和优点、功能等，并给出了与LT6656AIS6-2.5相关的凌力尔特元器件型号供参考。
LT6656AIS6-2.5 - 1μA 精准串联电压基准
LT6656 - 1μA 精准串联电压基准 - Linear Technology（凌力尔特）
功能描述
LT6656 是一款小型精准电压基准，所吸收的电源电流小于 1μA，并能够采用一个位于输出电压的 10mV 以内之工作电源电压。LT6656 提供了一个 0.05% 的初始准确度和 10ppm/ºC 的温度漂移。由于兼具低功率和精准特性，因此该器件非常适合于便携式和电池供电型仪表。
LT6656 能够提供高达 5mA 的输出驱动电流和 65ppm/mA 的负载调整率，从而使其可被用作一个低功率 ADC 的电源电压和基准输入。LT6656 可接受一个高达 18V 的电源电压，并安全地承受输入反接。
LT6656 的输出能够在采用 1μF 或更大的输出电容时保持稳定，并可在多种输出电容器 ESR 条件下运作。
该基准的技术规格针对 –40ºC 至 85ºC 的工作温度范围，并能够在 -55ºC 至 125ºC 的极限温度范围内运行。通过运用先进的设计、工艺和封装技术实现了低迟滞和一致的温度漂移。
LT6656 可提供 6 引脚 SOT-23、(2mm x 2mm) DFN 和8 引脚 LS8 封装。LS8 是一个5mm x 5mm 表面贴装密封式封装，能提供卓越的稳定性。
特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT6656ACDC-1.25#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-1.25#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-1.25#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-2.048#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-2.048#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-2.048#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-2.5#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-2.5#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-2.5#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-3.3#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-3.3#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-3.3#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-3#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-3#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-3#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-4.096#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-4.096#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-4.096#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACDC-5#PBF | 2x2 DFN-6 | C | $3.76 | |
| LT6656ACDC-5#TRMPBF | 2x2 DFN-6 | C | $3.76 | $2.75 |
| LT6656ACDC-5#TRPBF | 2x2 DFN-6 | C | $3.76 | $2.70 |
| LT6656ACS6-1.25#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-1.25#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-1.25#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-2.048#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-2.048#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-2.048#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-2.5#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-2.5#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-2.5#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-3.3#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-3.3#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-3.3#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-3#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-3#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-3#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-4.096#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-4.096#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-4.096#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656ACS6-5#PBF | SOT-23 | C | $3.42 | |
| LT6656ACS6-5#TRMPBF | SOT-23 | C | $3.42 | $2.50 |
| LT6656ACS6-5#TRPBF | SOT-23 | C | $3.42 | $2.45 |
| LT6656AIDC-1.25#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-1.25#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-1.25#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-2.048#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-2.048#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-2.048#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-2.5#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-2.5#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-2.5#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-3.3#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-3.3#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-3.3#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-3#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-3#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-3#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-4.096#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-4.096#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-4.096#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AIDC-5#PBF | 2x2 DFN-6 | I | $4.21 | |
| LT6656AIDC-5#TRMPBF | 2x2 DFN-6 | I | $4.21 | $3.07 |
| LT6656AIDC-5#TRPBF | 2x2 DFN-6 | I | $4.21 | $3.02 |
| LT6656AILS8-1.25#PBF | LS-8 | I | $4.88 | $3.50 |
| LT6656AIS6-1.25#PBF | SOT-23 | I | $3.42 | |
| LT6656AIS6-1.25#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-1.25#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-2.048#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-2.048#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-2.048#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-2.5#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-2.5#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-2.5#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-3.3#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-3.3#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-3.3#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-3#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-3#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-3#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-4.096#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-4.096#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-4.096#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656AIS6-5#PBF | SOT-23 | I | $3.83 | |
| LT6656AIS6-5#TRMPBF | SOT-23 | I | $3.83 | $2.80 |
| LT6656AIS6-5#TRPBF | SOT-23 | I | $3.83 | $2.75 |
| LT6656BCDC-1.25#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-1.25#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-1.25#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-2.048#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-2.048#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-2.048#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-2.5#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-2.5#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-2.5#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-3.3#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-3.3#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-3.3#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-3#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-3#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-3#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-4.096#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-4.096#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-4.096#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCDC-5#PBF | 2x2 DFN-6 | C | $2.44 | |
| LT6656BCDC-5#TRMPBF | 2x2 DFN-6 | C | $2.44 | $1.79 |
| LT6656BCDC-5#TRPBF | 2x2 DFN-6 | C | $2.44 | $1.74 |
| LT6656BCS6-1.25#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-1.25#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-1.25#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-2.048#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-2.048#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-2.048#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-2.5#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-2.5#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-2.5#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-3.3#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-3.3#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-3.3#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-3#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-3#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-3#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-4.096#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-4.096#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-4.096#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BCS6-5#PBF | SOT-23 | C | $2.44 | |
| LT6656BCS6-5#TRMPBF | SOT-23 | C | $2.44 | $1.79 |
| LT6656BCS6-5#TRPBF | SOT-23 | C | $2.44 | $1.74 |
| LT6656BIDC-1.25#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-1.25#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-1.25#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-2.048#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-2.048#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-2.048#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-2.5#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-2.5#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-2.5#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-3.3#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-3.3#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-3.3#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-3#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-3#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-3#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-4.096#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-4.096#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-4.096#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BIDC-5#PBF | 2x2 DFN-6 | I | $2.79 | |
| LT6656BIDC-5#TRMPBF | 2x2 DFN-6 | I | $2.79 | $2.03 |
| LT6656BIDC-5#TRPBF | 2x2 DFN-6 | I | $2.79 | $1.98 |
| LT6656BILS8-1.25#PBF | LS-8 | I | $3.80 | $2.73 |
| LT6656BIS6-1.25#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-1.25#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-1.25#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-2.048#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-2.048#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-2.048#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-2.5#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-2.5#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-2.5#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-3.3#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-3.3#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-3.3#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-3#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-3#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-3#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-4.096#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-4.096#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-4.096#TRPBF | SOT-23 | I | $2.79 | $1.98 |
| LT6656BIS6-5#PBF | SOT-23 | I | $2.79 | |
| LT6656BIS6-5#TRMPBF | SOT-23 | I | $2.79 | $2.03 |
| LT6656BIS6-5#TRPBF | SOT-23 | I | $2.79 | $1.98 |
