LTC1067是Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1067

LTC1067技术文档下载：

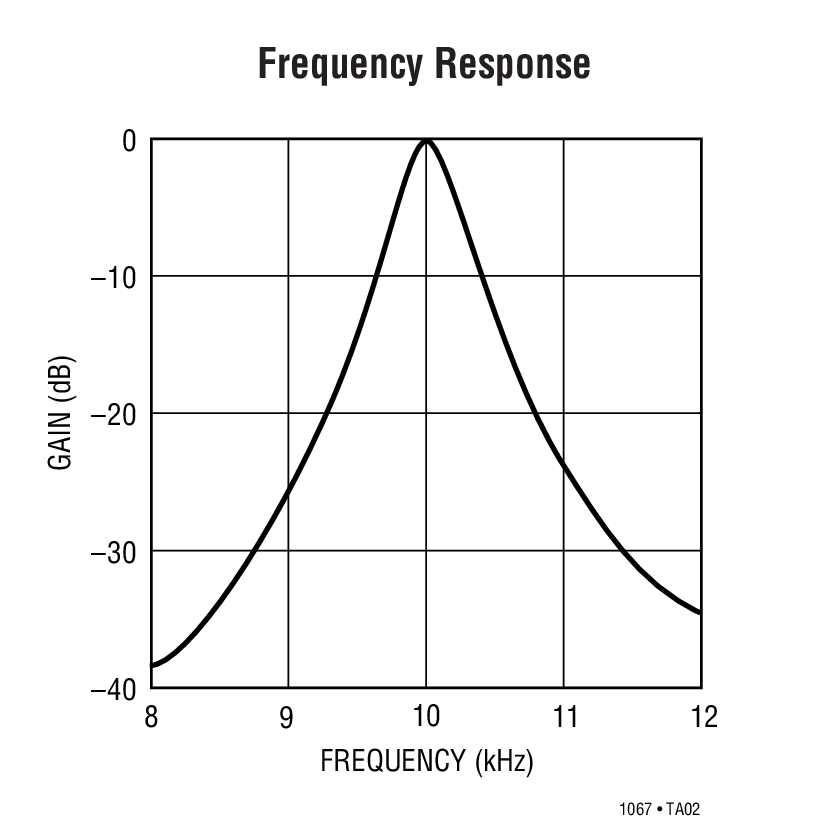

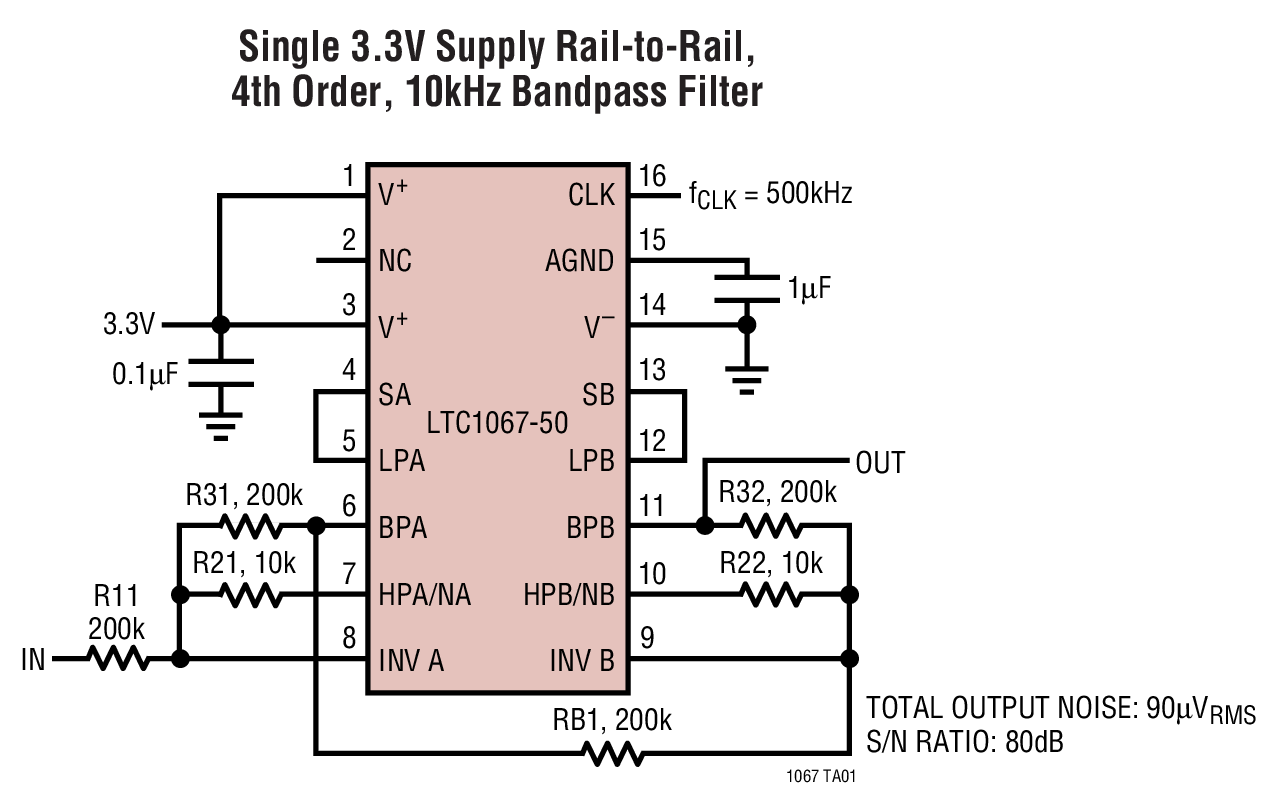

LTC1067 - 典型应用图例：

LTC1067 - 封装图解：

LTC1067 - LTC1067是Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block

LTC1067是Linear公司的一款滤波器单元式部件产品，LTC1067是Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block，本站介绍了LTC1067的封装应用图解、特点和优点、功能等，并给出了与LTC1067相关的凌力尔特元器件型号供参考。

LTC1067 - Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block

LTC1067 - Rail-to-Rail, Very Low Noise Universal Dual Filter Building Block - Linear Technology（凌力尔特）

功能描述

The LTC®1067/LTC1067-50 consist of two identical rail-to-rail, high accuracy and very wide dynamic range 2nd order switched-capacitor building blocks. Each building block, together with three to five resistors, provides 2nd order filter functions such as bandpass, highpass, lowpass, notch and allpass. High precision 4th order filters are easily designed. The center frequency of each 2nd order section is tuned by the external clock frequency. The internal clock-to-center frequency ratio (100:1 for the LTC1067 and 50:1 for the LTC1067-50) can be modified by the external resistors. These devices have a double sampled architecture which places aliasing and imaging components at twice the clock frequency. The LTC1067-50 is a low power device consuming about one half the current of the LTC1067. The LTC1067-50μs typical supply current is about 1mA from a 3.3V supply.The LTC1067 and LTC1067-50 are available in 16-pin narrow SSOP and SO packages. Mask programmable versions of the LTC1067 and LTC1067-50, with thin film resistors on-chip and custom clock-to-cutoff frequency ratios, can be designed in an SO-8 package to realize application specific monolithic filters. Please contact LTC Marketing for more details.

特点

Rail-to-Rail Input and Output Operation

Operates from a Single 3V to ±5V Supply

Dual 2nd Order Filter in a 16-Lead SSOP Package

>80dB Dynamic Range on Single 3.3V Supply

Clock-to-Center Frequency Ratio of 100:1 for the LTC1067 and 50:1 for the LTC1067-50

Internal Sampling-to-Center Frequency Ratio of 200:1 for the LTC1067 and 100:1 for the LTC1067-50

Center Frequency Error < ±0.2% Typ

Low Noise: <40µVRMS, Q </=5

Customizable with Internal Resistors

应用

Notch Filters

Narrowband Bandpass Filters

Tone Detection

Noise Reduction Systems
