LTC1098是Micropower Sampling 8-Bit Serial I/O A/D Converters

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1098

LTC1098技术文档下载：

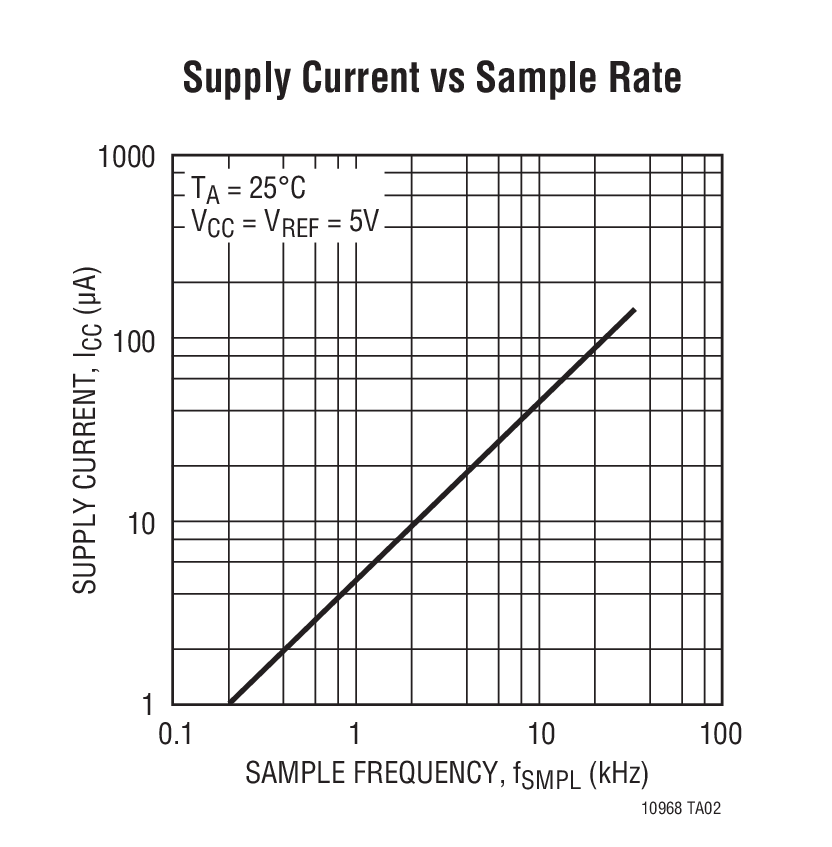

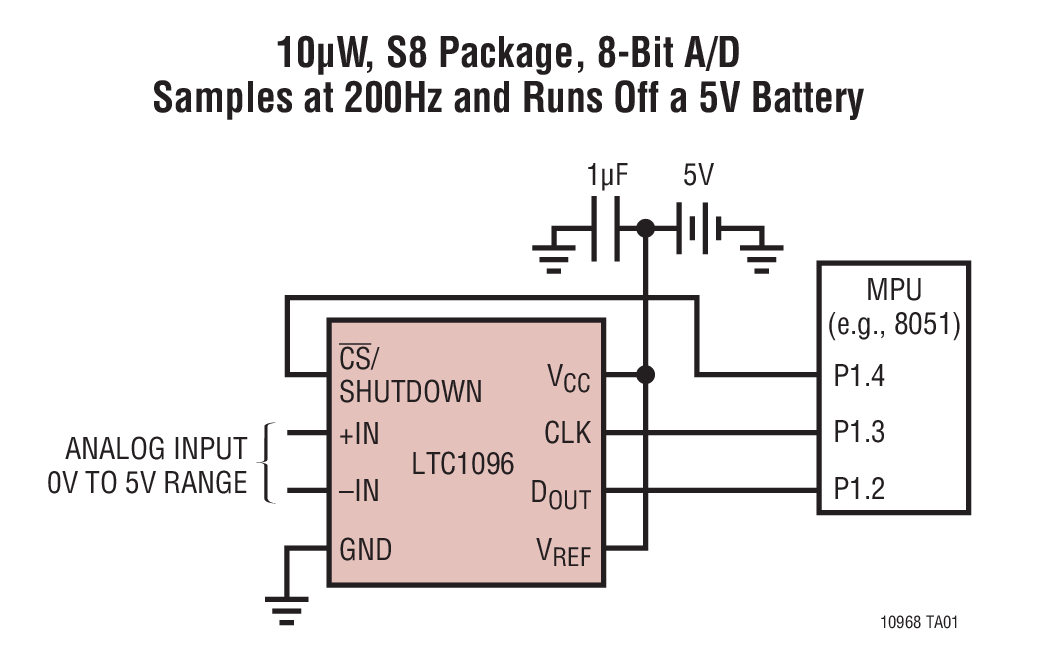

LTC1098 - 典型应用图例：

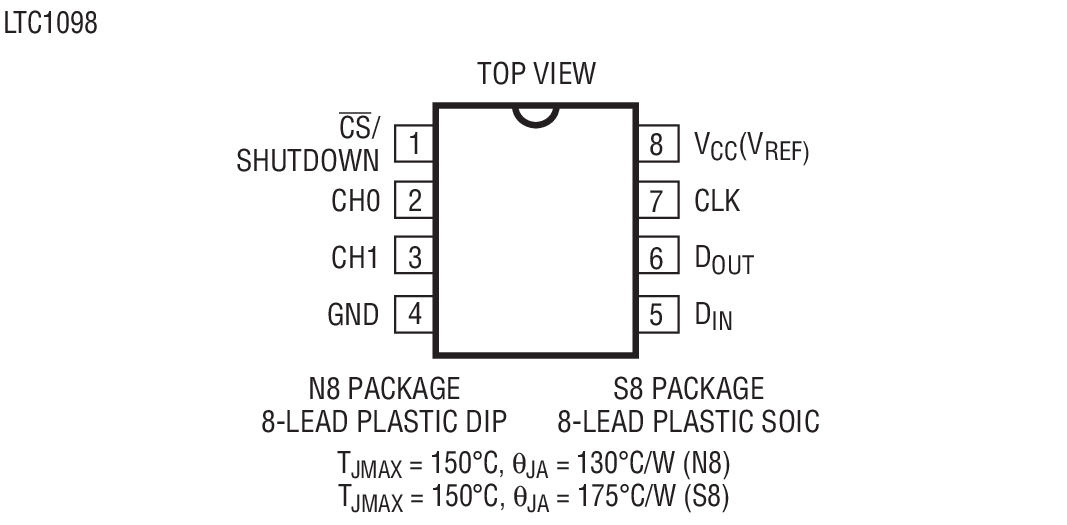

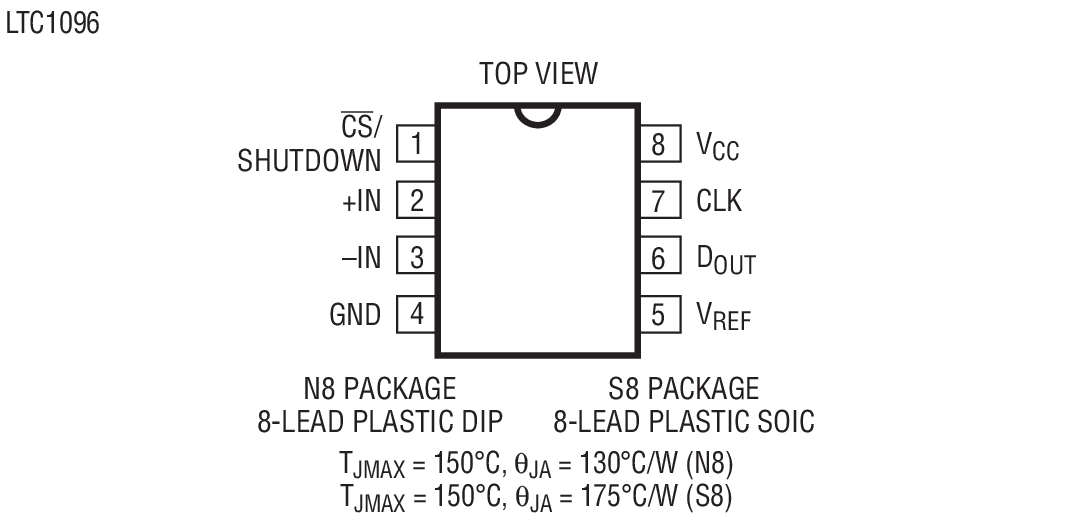

LTC1098 - 封装图解：

LTC1098 - LTC1098是Micropower Sampling 8-Bit Serial I/O A/D Converters

LTC1098是Linear公司的一款通用型 SAR ADC产品，LTC1098是Micropower Sampling 8-Bit Serial I/O A/D Converters，本站介绍了LTC1098的封装应用图解、特点和优点、功能等，并给出了与LTC1098相关的凌力尔特元器件型号供参考。

LTC1098 - Micropower Sampling 8-Bit Serial I/O A/D Converters

LTC1098 - Micropower Sampling 8-Bit Serial I/O A/D Converters - Linear Technology（凌力尔特）

功能描述

The LTC1096/LTC1098 are micropower, 8-bit A/D converters which draw only 80μA of supply current when converting. They automatically power down to 1nA typical supply current whenever they are not performing conversions. They are packaged in 8-pin SO packages and operate on 3V to 9V supplies. These 8-bit, switched-capacitor, successive approximation ADCs include sample-and-hold. The LTC1096 has a single differential analog input. The LTC1098 offers a software selectable 2-channel MUX.On-chip serial ports allow efficient data transfer to a wide range of microprocessors and microcontrollers over three wires. This, coupled with micropower consumption, makes remote location possible and facilitates transmitting data through isolation barriers.These circuits can be used in ratiometric applications or with an external reference. The high impedance analog inputs and the ability to operate with reduced spans (below 1V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.All grades are specified with offset and linearity errors of ?0.5LSB maximum over temperature. The A grade devices are specified with total unadjusted error of ?0.5LSB maximum over temperature.

特点

80µA Maximum Supply Current

1nA Typical Supply Current in Shutdown

8-Pin SOIC Plastic Package

Single Supply 3V to 9V Operation

2.7V and 5V Specified

Sample-and-Hold

16μs Conversion Time

33kHz Sample Rate

±1/2LSB Total Unadjusted Error Over Temp

Direct 3-Wire Interface to Most MPU Serial Ports andAll MPU Parallel I/O Ports

应用

Battery-Operated Systems

Remote Data Acquisition

Battery Monitoring

Battery Gas Gauges

Temperature Measurement

Isolated Data Acquisition
