LTC1293是Linear公司的一款通用型 SAR ADC产品，LTC1293是Single Chip 12-Bit Data Acquisition System，本站介绍了LTC1293的封装应用图解、特点和优点、功能等，并给出了与LTC1293相关的凌力尔特元器件型号供参考。
LTC1293 - Single Chip 12-Bit Data Acquisition System
LTC1293 - Single Chip 12-Bit Data Acquisition System - Linear Technology（凌力尔特）

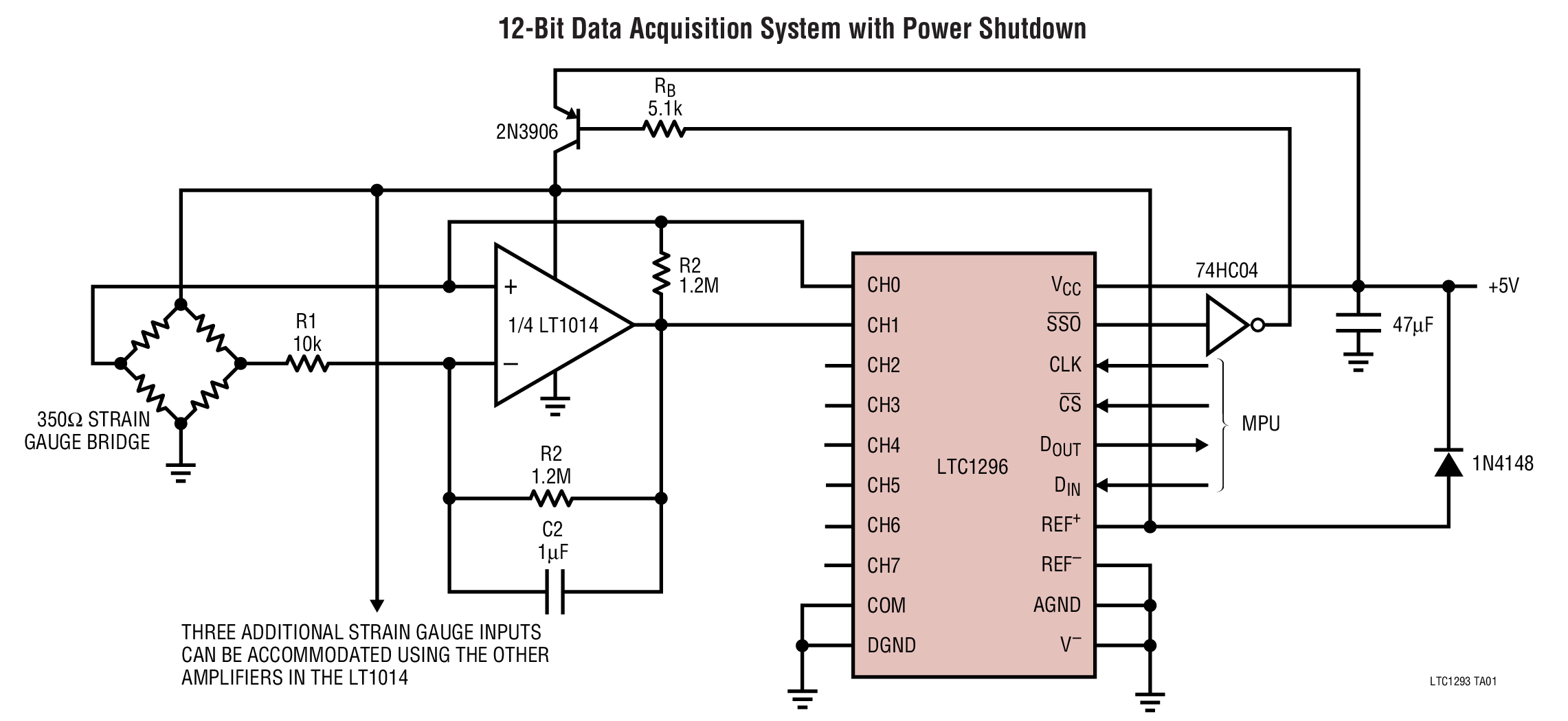

The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1293/4/6 is idle it can be powered down in applications where low power consumption is desired. The LTC1296 includes a System Shutdown Output pin which can be used to power down external circuitry, such as signal conditioning circuitry prior to the input mux.
The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1293BCN | N-16 | C | $25.00 | $19.75 |
| LTC1293BCN#PBF | N-16 | C | $25.00 | $19.75 |
| LTC1293BCSW | SW-16 | C | $30.00 | $23.70 |
| LTC1293BCSW#PBF | SW-16 | C | $30.00 | $23.70 |
| LTC1293BCSW#TR | SW-16 | C | $23.76 | |
| LTC1293BCSW#TRPBF | SW-16 | C | $23.76 | |
| LTC1293CCN | N-16 | C | $20.00 | $15.80 |
| LTC1293CCN#PBF | N-16 | C | $20.00 | $15.80 |
| LTC1293CCSW | SW-16 | C | $24.00 | $18.95 |
| LTC1293CCSW#PBF | SW-16 | C | $24.00 | $18.95 |
| LTC1293CCSW#TR | SW-16 | C | $19.01 | |
| LTC1293CCSW#TRPBF | SW-16 | C | $19.01 | |
| LTC1293DCN | N-16 | C | $12.10 | $9.40 |
| LTC1293DCN#PBF | N-16 | C | $12.10 | $9.40 |
| LTC1293DCSW | SW-16 | C | $14.50 | $11.15 |
| LTC1293DCSW#PBF | SW-16 | C | $14.50 | $11.15 |
| LTC1293DCSW#TR | SW-16 | C | $11.21 | |
| LTC1293DCSW#TRPBF | SW-16 | C | $11.21 |
