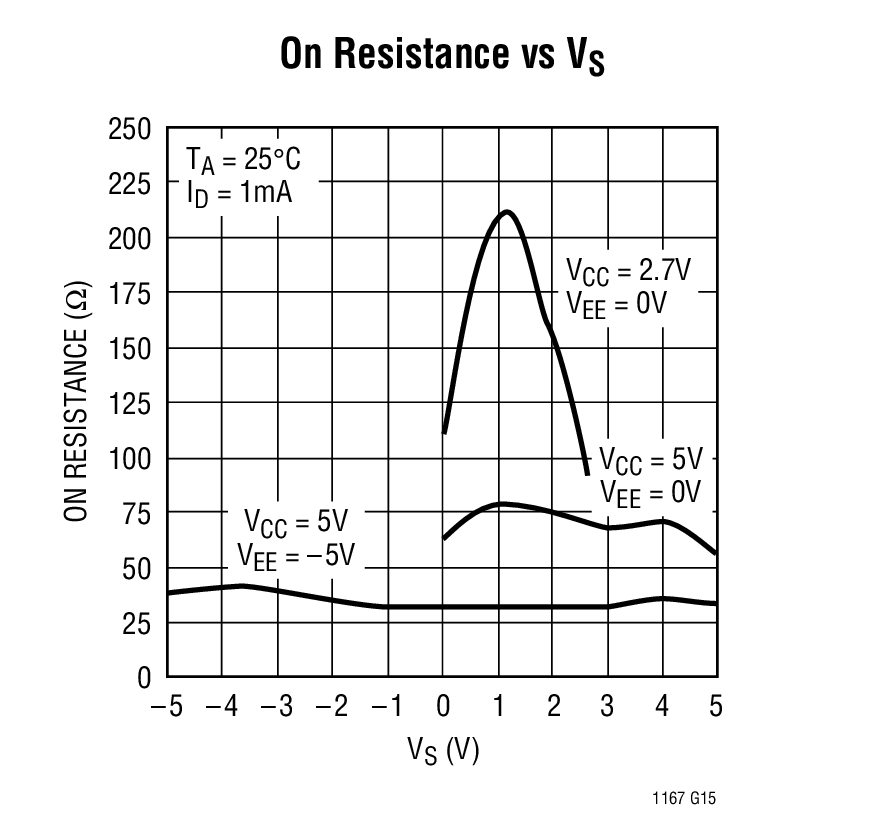

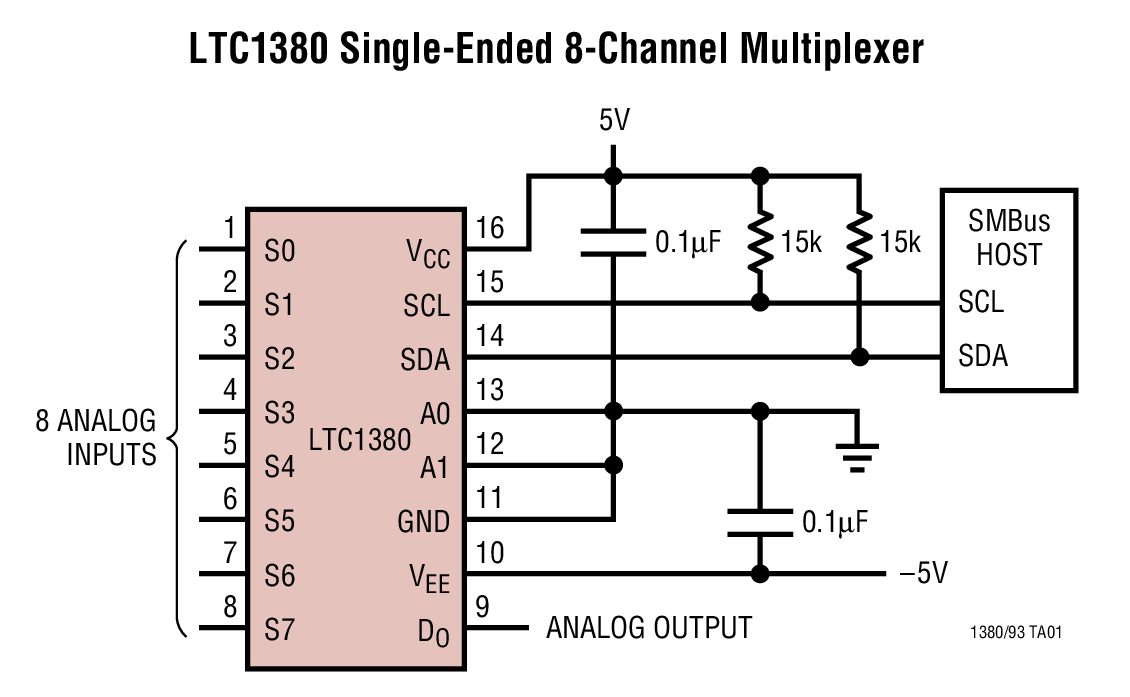

LTC1380 - 典型应用图例：

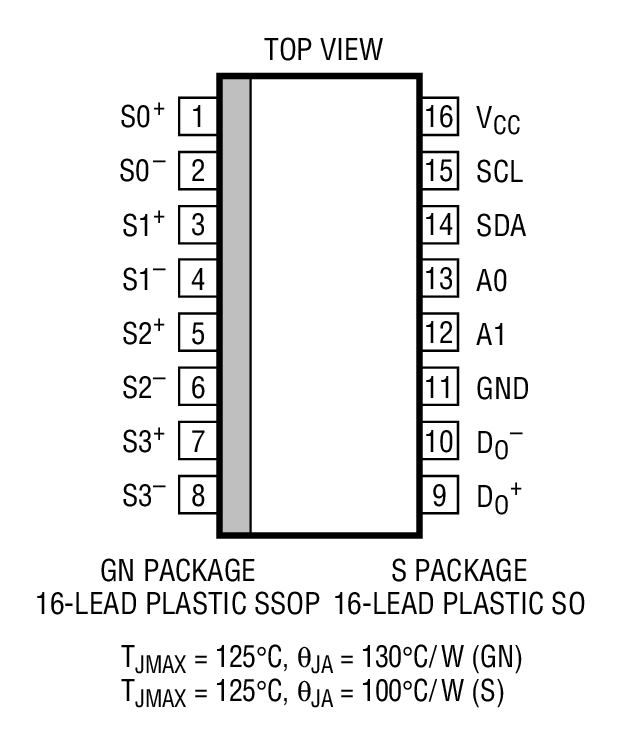

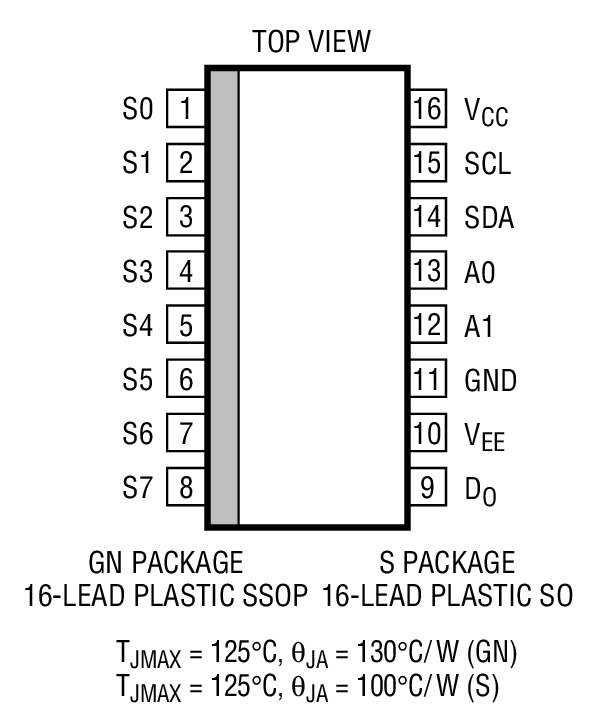

LTC1380 - 封装图解：

LTC1380 - LTC1380是Single-Ended 8-Channel/ Differential 4-Channel Analog Multiplexer with SMBus Interface

LTC1380是Linear公司的一款开关和多工器产品，LTC1380是Single-Ended 8-Channel/ Differential 4-Channel Analog Multiplexer with SMBus Interface，本站介绍了LTC1380的封装应用图解、特点和优点、功能等，并给出了与LTC1380相关的凌力尔特元器件型号供参考。

LTC1380 - Single-Ended 8-Channel/ Differential 4-Channel Analog Multiplexer with SMBus Interface

LTC1380 - Single-Ended 8-Channel/ Differential 4-Channel Analog Multiplexer with SMBus Interface - Linear Technology（凌力尔特）

功能描述

The LTC®1380/LTC1393 are CMOS analog multiplexers with SMBus® compatible digital interfaces. The LTC1380 is a single-ended 8-channel multiplexer, while the LTC1393 is a differential 4-channel multiplexer. The SMBus digital interface requires only two wires (SCL and SDA). Both the LTC1380 and the LTC1393 have four hard-wired SMBus addresses, selectable with two external address pins. This allows four devices, each with a unique SMBus address, to coexist on one system and for four devices to be synchronized with one stop bit.The supply current is typically 10µA. Both digital interface pins are SMBus compatible over the full operating supply voltage range. The LTC1380 analog switches feature a typical RON of 35ohms (±5V supplies), typical switch leakage of 20pA and guaranteed break-before-make operation. Charge injection is ±1pC typical.The LTC1380/LTC1393 are available in 16-lead SO and GN packages. Operation is fully specified over the commercial and industrial temperature ranges.

特点

Micropower Operation: Supply Current = 20µA Max

2-Wire SMBus Interface

Single 2.7V to ±5V Supply Operation

Expandable to 32 Single or 16 Differential Channels

Guaranteed Break-Before-Make

Low RON: 35ohms Single Ended/70ohms Differential

Low Charge Injection: 20pC Max

Low Leakage: ±5nA Max

Available in 16-Lead SO and GN Packages

应用

Data Acquisition Systems

Process Control

Laptop Computers

Signal Multiplexing/Demultiplexing

Analog-to-Digital Conversion Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1380CGN	SSOP-16	C	$3.80	$3.15
LTC1380CGN#PBF	SSOP-16	C	$3.80	$3.15
LTC1380CGN#TR	SSOP-16	C		$3.21
LTC1380CGN#TRPBF	SSOP-16	C		$3.21
LTC1380CS	SO-16	C	$3.45	$2.95
LTC1380CS#PBF	SO-16	C	$3.45	$2.95
LTC1380CS#TR	SO-16	C		$3.01
LTC1380CS#TRPBF	SO-16	C		$3.01
LTC1380IGN	SSOP-16	I	$4.40	$3.65
LTC1380IGN#PBF	SSOP-16	I	$4.40	$3.65
LTC1380IGN#TR	SSOP-16	I		$3.71
LTC1380IGN#TRPBF	SSOP-16	I		$3.71
LTC1380IS	SO-16	I	$4.05	$3.30
LTC1380IS#PBF	SO-16	I	$4.05	$3.30
LTC1380IS#TR	SO-16	I		$3.36
LTC1380IS#TRPBF	SO-16	I		$3.36
