LTC1563-2 - LTC1563-2是有源 RC、4 阶低通滤波器系列
LTC1563-2是Linear公司的一款低通滤波器产品，LTC1563-2是有源 RC、4 阶低通滤波器系列，本站介绍了LTC1563-2的封装应用图解、特点和优点、功能等，并给出了与LTC1563-2相关的凌力尔特元器件型号供参考。
LTC1563-2 - 有源 RC、4 阶低通滤波器系列
LTC1563-2 - 有源 RC、4 阶低通滤波器系列 - Linear Technology（凌力尔特）
功能描述

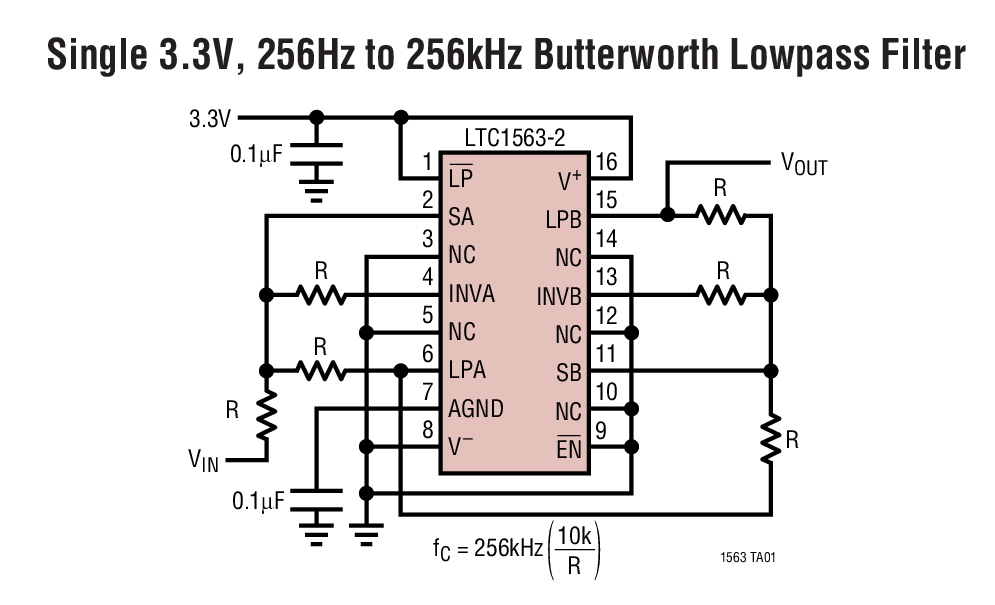

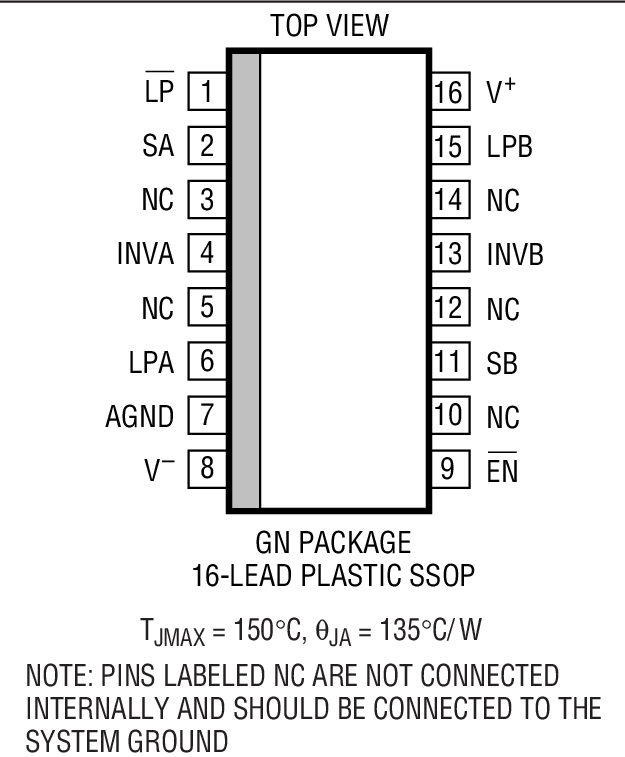

The LTC1563-2/LTC1563-3 are a family of extremely easy-to-use, active RC lowpass filters with rail-to-rail inputs and outputs and low DC offset suitable for systems with a resolution of up to 16 bits. The LTC1563-2, with a single resistor value, gives a unity-gain Butterworth response. The LTC1563-3, with a single resistor value, gives a unity-gain Bessel response. The proprietary architecture of these parts allows for a simple resistor calculation: R = 10k (256kHz/fC); fC = Cutoff Frequency where fC is the desired cutoff frequency. For many applications, this formula is all that is needed to design a filter. By simply utilizing different valued resistors, gain and other responses are achieved. The LTC1563-X features a low power mode, for the lower frequency applications, where the supply current is reduced by an order of magnitude and a near zero power shutdown mode. The LTC1563-Xs are available in the narrow SSOP-16 package (Same footprint as an SO-8 package).
?
特点
Extremely Easy to Use—A Single Resistor Value Sets the Cutoff Frequency (256Hz < fC < 256kHz) Extremely Flexible—Different Resistor Values Allow Arbitrary Transfer Functions with or without Gain (256Hz < fC<256kHz) Supports Cutoff Frequencies Up to 360kHz Using FilterCAD? LTC1563-2: Unity-Gain Butterworth Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain LTC1563-3: Unity-Gain Bessel Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain Rail-to-Rail Input and Output Voltages Operates from a Single 3V (2.7V Min) to ±5V Supply Low Noise: 36μVRMS for fC = 25.6kHz, 60μVRMS for fC = 256kHz fC Accuracy < ±2% (Typ) DC Offset < 1mV Cascadable to Form 8th Order Lowpass Filters Available in Narrow SSOP-16 Package应用
Discrete RC Active Filters and Modules Antialiasing Filters Smoothing or Reconstruction Filters Linear Phase Filtering for Data Communication Phase Locked Loops以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1563-2CGN | SSOP-16 | C | $2.35 | $1.95 |
| LTC1563-2CGN#PBF | SSOP-16 | C | $2.35 | $1.95 |
| LTC1563-2CGN#TR | SSOP-16 | C | | $2.01 |
| LTC1563-2CGN#TRPBF | SSOP-16 | C | | $2.01 |
| LTC1563-2IGN | SSOP-16 | I | $2.60 | $2.15 |
| LTC1563-2IGN#PBF | SSOP-16 | I | $2.60 | $2.15 |
| LTC1563-2IGN#TR | SSOP-16 | I | | $2.21 |
| LTC1563-2IGN#TRPBF | SSOP-16 | I | | $2.21 |
| LTC1563-3CGN | SSOP-16 | C | $2.35 | $1.95 |
| LTC1563-3CGN#PBF | SSOP-16 | C | $2.35 | $1.95 |
| LTC1563-3CGN#TR | SSOP-16 | C | | $2.01 |
| LTC1563-3CGN#TRPBF | SSOP-16 | C | | $2.01 |
| LTC1563-3IGN | SSOP-16 | I | $2.60 | $2.15 |
| LTC1563-3IGN#PBF | SSOP-16 | I | $2.60 | $2.15 |
| LTC1563-3IGN#TR | SSOP-16 | I | | $2.21 |
| LTC1563-3IGN#TRPBF | SSOP-16 | I | | $2.21 |
