LTC5532EDC是Linear公司的一款RF 肖特基峰值检波器产品，LTC5532EDC是Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment，本站介绍了LTC5532EDC的封装应用图解、特点和优点、功能等，并给出了与LTC5532EDC相关的凌力尔特元器件型号供参考。
LTC5532EDC - Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment
LTC5532 - Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment - Linear Technology（凌力尔特）

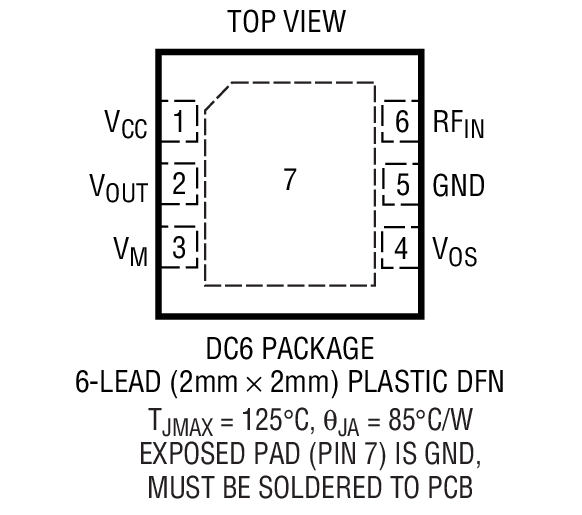

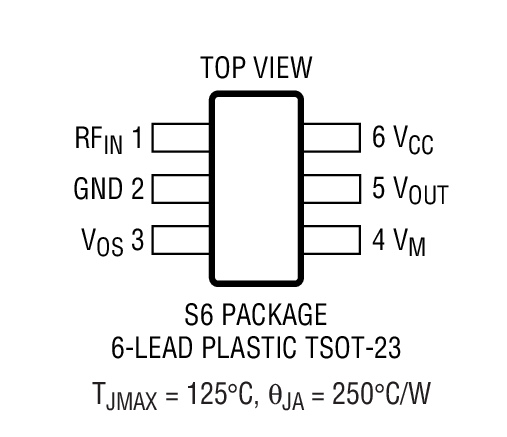

The LTC5532 is an RF power detector for RF applications operating in the 300MHz to 7GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small ThinSOT? or (2mm x 2mm) DFN package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3x NiMH.
The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the VOUT pin.

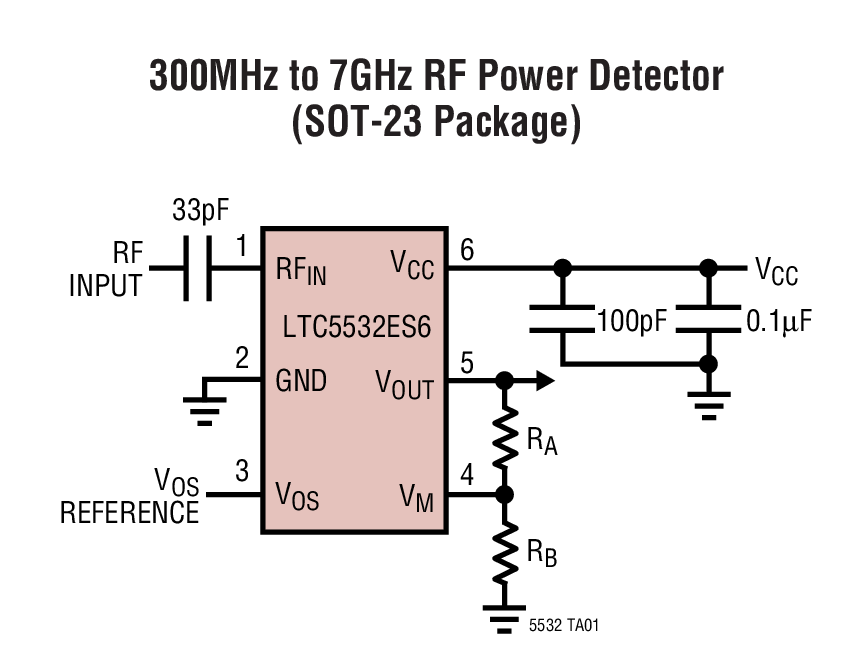

The LTC5532 output buffer gain is set via external resistors. The initial starting voltage of 120mV ±35mV can be precisely adjusted using the VOS pin.

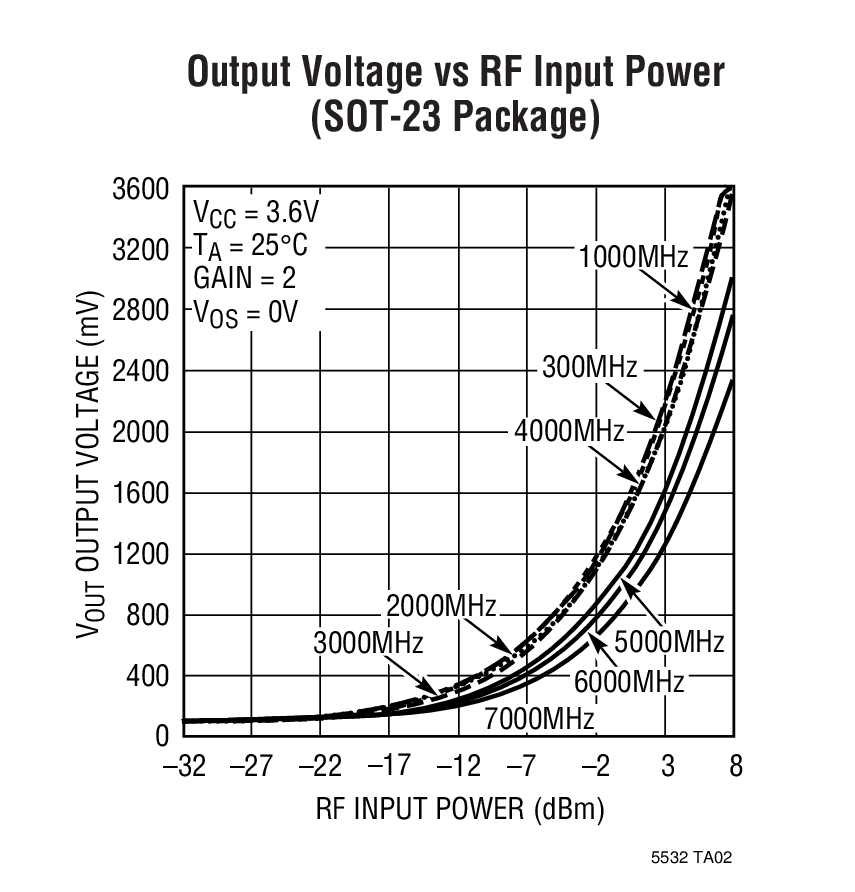

The LTC5532 operates with RF input power levels from –32dBm to 10dBm.
*Higher frequency operation is achievable with reduced performance. Consult factory for more information.
?
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC5532EDC | 2x2 DFN-6 | E | $2.47 | |
| LTC5532EDC#PBF | 2x2 DFN-6 | E | $2.47 | |
| LTC5532EDC#TR | 2x2 DFN-6 | E | $2.47 | $1.76 |
| LTC5532EDC#TRM | 2x2 DFN-6 | E | $2.47 | $1.78 |
| LTC5532EDC#TRMPBF | 2x2 DFN-6 | E | $2.47 | $1.78 |
| LTC5532EDC#TRPBF | 2x2 DFN-6 | E | $2.47 | $1.76 |
| LTC5532ES6 | SOT-23 | E | $2.19 | |
| LTC5532ES6#PBF | SOT-23 | E | $2.19 | |
| LTC5532ES6#TR | SOT-23 | E | $2.19 | $1.56 |
| LTC5532ES6#TRM | SOT-23 | E | $2.19 | $1.58 |
| LTC5532ES6#TRMPBF | SOT-23 | E | $2.19 | $1.58 |
| LTC5532ES6#TRPBF | SOT-23 | E | $2.19 | $1.56 |
