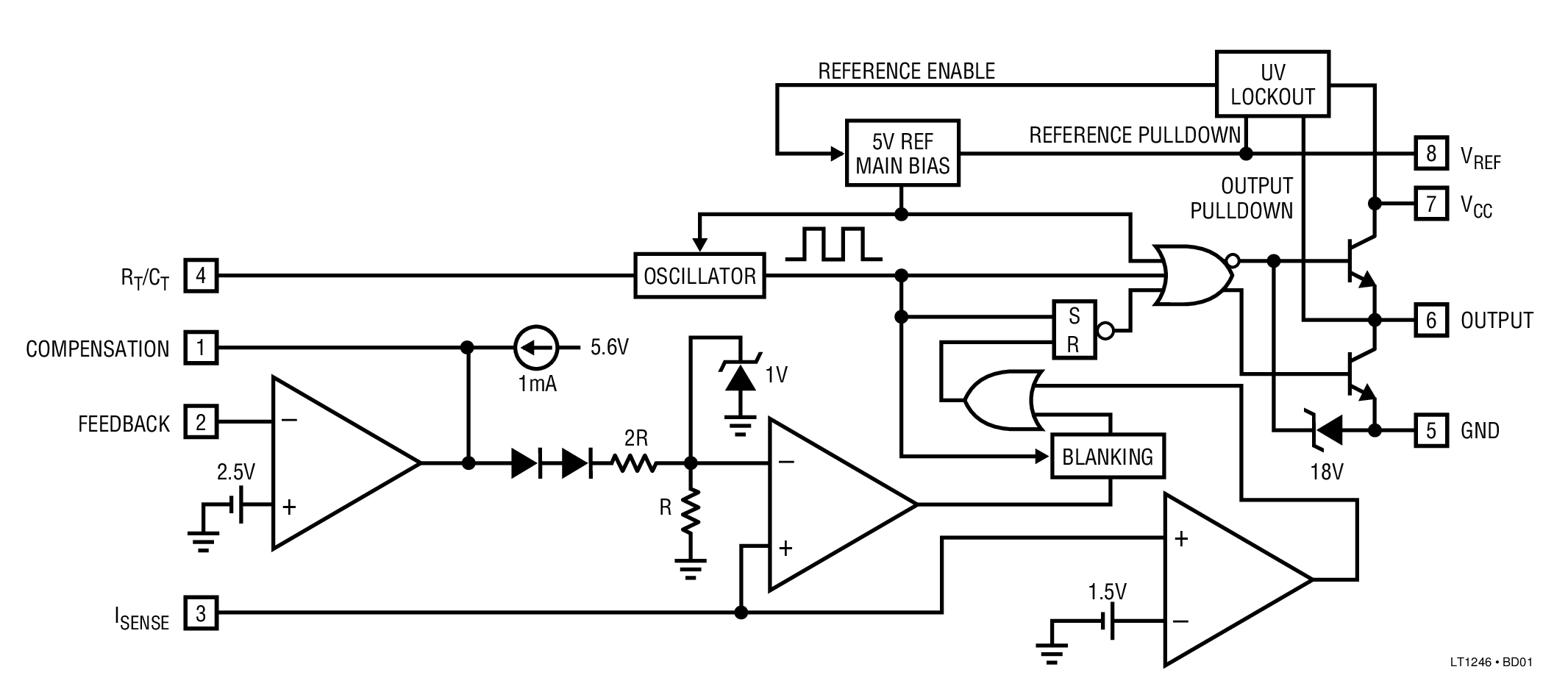

LT1246 - 典型应用图例：

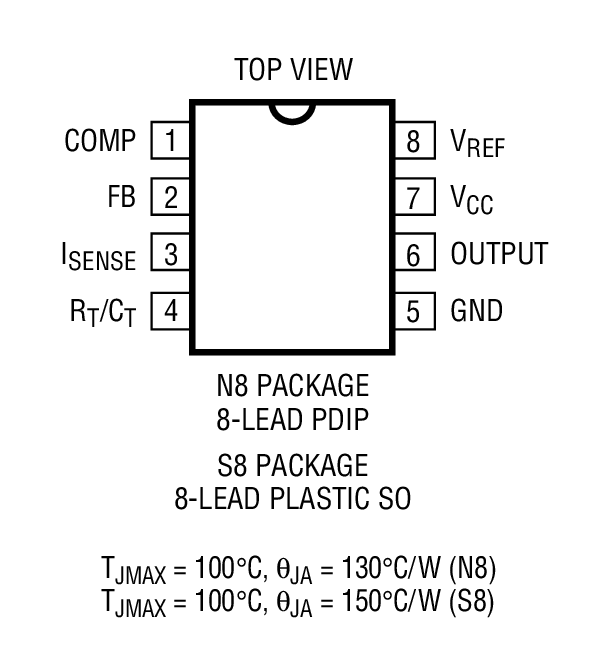

LT1246 - 封装图解：

LT1246 - LT1246是1MHz Off-Line Current Mode PWM and DC/DC Converter

LT1246是Linear公司的一款PWM 控制器产品，LT1246是1MHz Off-Line Current Mode PWM and DC/DC Converter，本站介绍了LT1246的封装应用图解、特点和优点、功能等，并给出了与LT1246相关的凌力尔特元器件型号供参考。

LT1246 - 1MHz Off-Line Current Mode PWM and DC/DC Converter

LT1246 - 1MHz Off-Line Current Mode PWM and DC/DC Converter - Linear Technology（凌力尔特）

功能描述

The LT1246/LT1247 are 8-pin, fixed frequency, current mode, pulse width modulators. These devices are designed to be improved plug compatible versions of the industry standard UC1842 PWM circuit. The LT1246/ LT1247 are optimized for off-line and DC/DC converter applications. They contain a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output stage ideally suited to driving power MOSFETs. Start-up current has been reduced to less than 250µA. Cross-conduction current spikes in the totem pole output stage have been eliminated, making 1MHz operation practical. Several new features have been incorporated. Leading edge blanking has been added to the current sense comparator. This minimizes or eliminates the filter that is normally required. Eliminating this filter allows the current sense loop to operate with minimum delays. Trims have been added to the oscillator circuit for both frequency and sink current, and both of these parameters are tightly specified. The output stage is clamped to a maximum VOUT of 18V in the on state. The output and the reference output are actively pulled low during under-voltage lockout.

特点

Current Mode Operation to 1MHz

30ns Current Sense Delay

<250mA Low Start-Up Current

Current Sense Leading Edge Blanking

Pin Compatible with UC1842

Undervoltage Lockout with Hysteresis

No Cross-Conduction Current

Trimmed Bandgap Reference

1A Totem Pole Output

应用

Off-Line Converters
