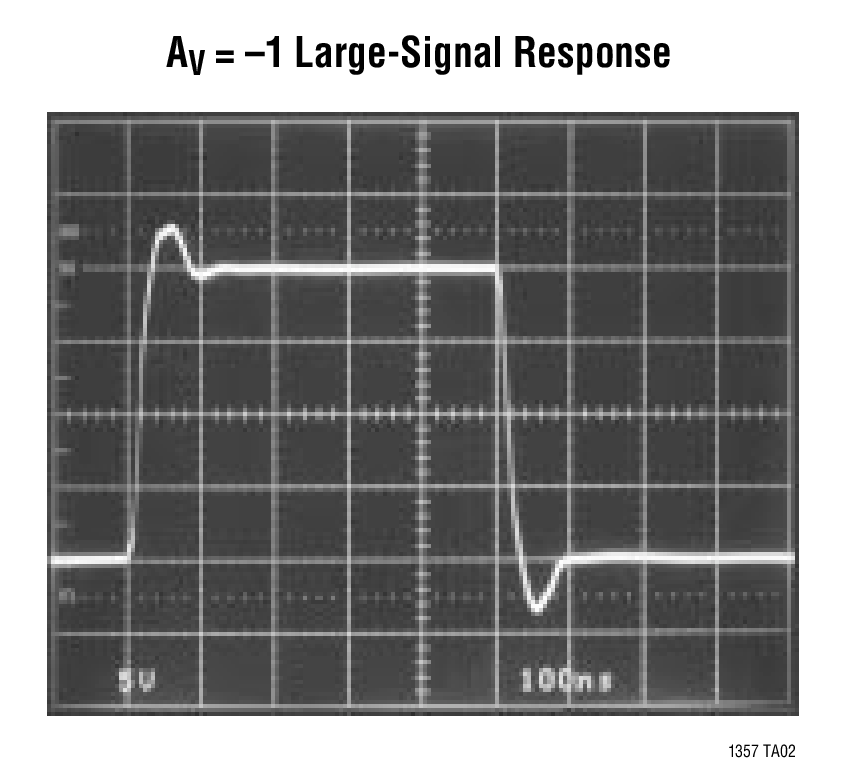

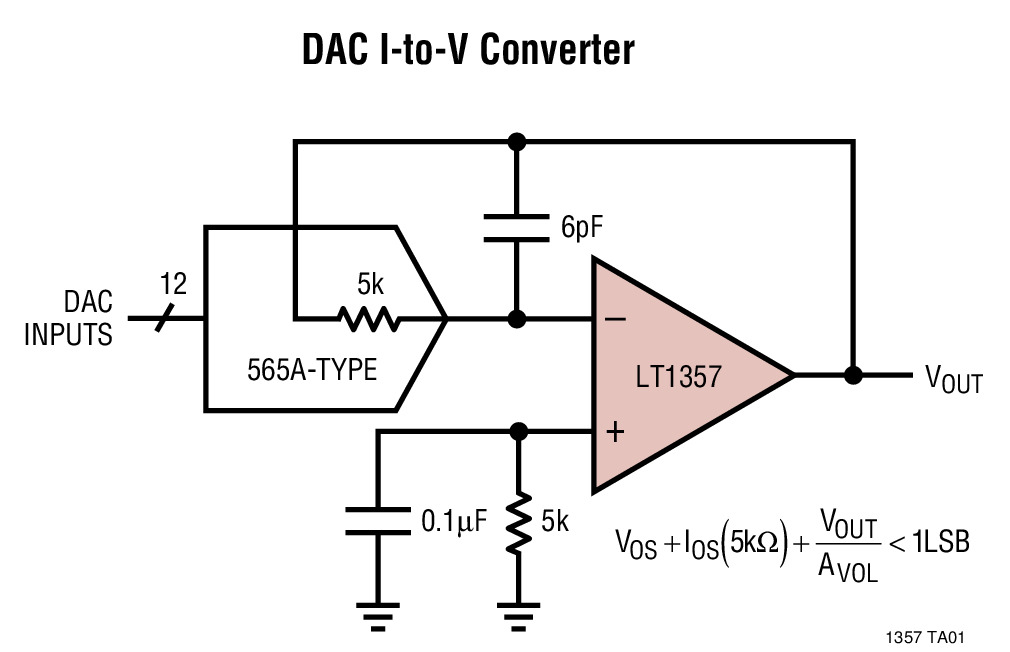

LT1357 - 典型应用图例：

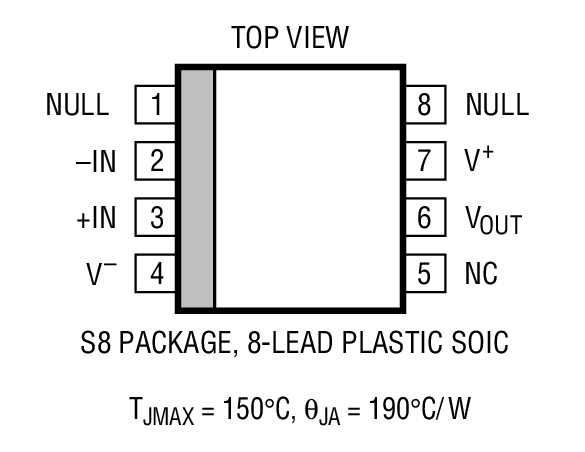

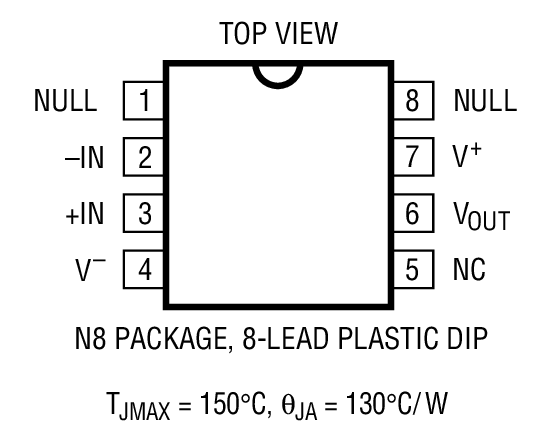

LT1357 - 封装图解：

LT1357 - LT1357是25MHz, 600V/μs Op Amp

LT1357是Linear公司的一款精准放大器产品，LT1357是25MHz, 600V/μs Op Amp，本站介绍了LT1357的封装应用图解、特点和优点、功能等，并给出了与LT1357相关的凌力尔特元器件型号供参考。

LT1357 - 25MHz, 600V/μs Op Amp

LT1357 - 25MHz, 600V/μs Op Amp - Linear Technology（凌力尔特）

功能描述

The LT?1357 is a high speed, very high slew rate operational amplifier with outstanding AC and DC performance. The LT1357 has much lower supply current, lower input offset voltage, lower input bias current, and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500 ohms load to ?12V with ±15V supplies and a 150 ohms load to ±2.5V on ±5V supplies. The amplifier is also stable with any capacitive load which makes it useful in buffer or cable driver applications.The LT1357 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1357 see the LT1358/LT1359 data sheet. For higher bandwidth devices with higher supply current see the LT1360 through LT1365 data sheets. For lower supply current amplifiers see the LT1354 and LT1355/LT1356 data sheets. Singles, duals, and quads of each amplifier are available.Please Download Specification Notice for Recent Changes to Data Sheet.
sn135165.pdf

特点

25MHz Gain-Bandwidth

600V/µs Slew Rate

2.5mA Maximum Supply Current

Unity Gain Stable

C-Load™ Op Amp Drives All Capacitive Loads

8nV/ rt Hz Input Noise Voltage

600µV Maximum Input Offset Voltage

500nA Maximum Input Bias Current

120nA Maximum Input Offset Current

20V/mV Minimum DC Gain, RL =1k

115ns Settling Time to 0.1%, 10V Step
