LT1362是Dual and Quad 50MHz, 800V/µs Op Amps

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1362

LT1362技术文档下载：

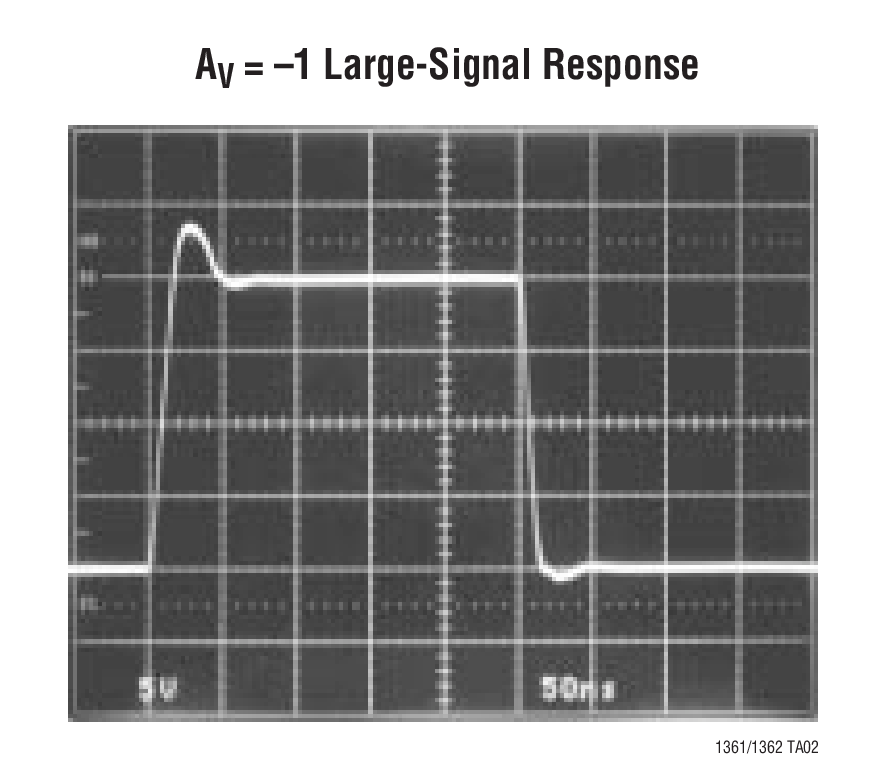

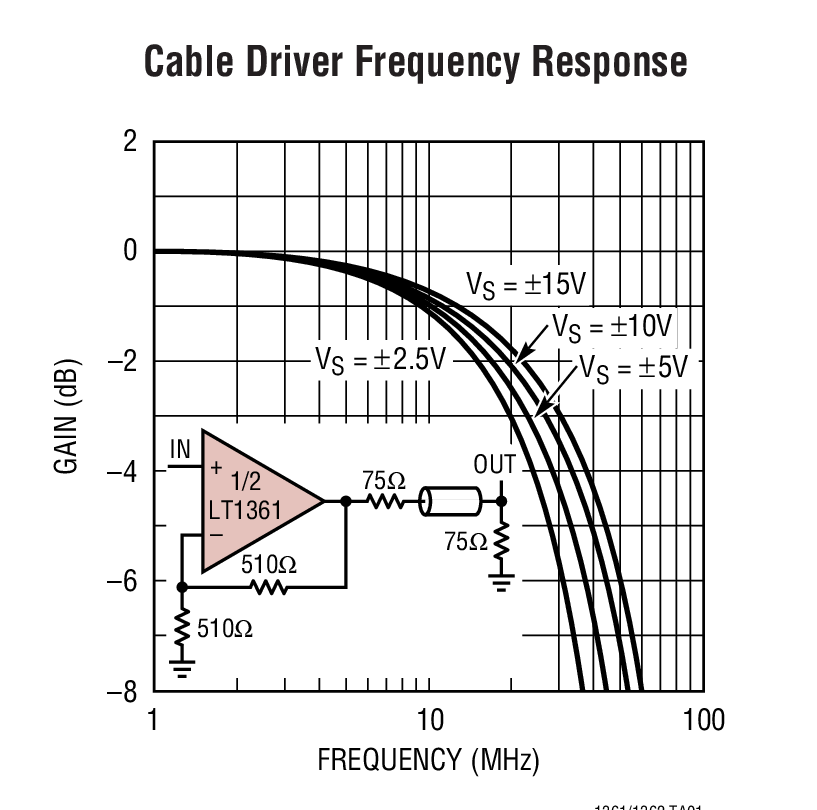

LT1362 - 典型应用图例：

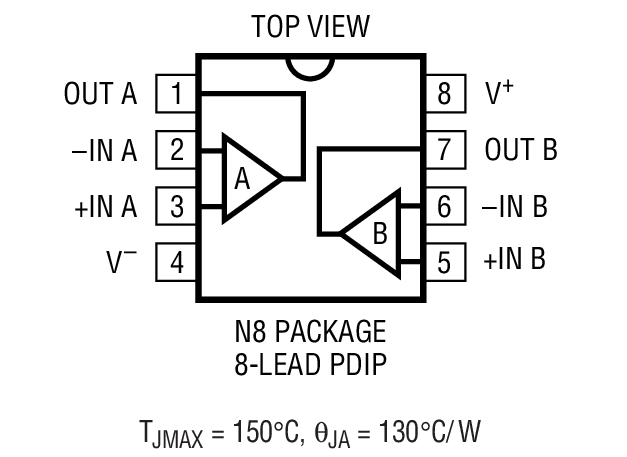

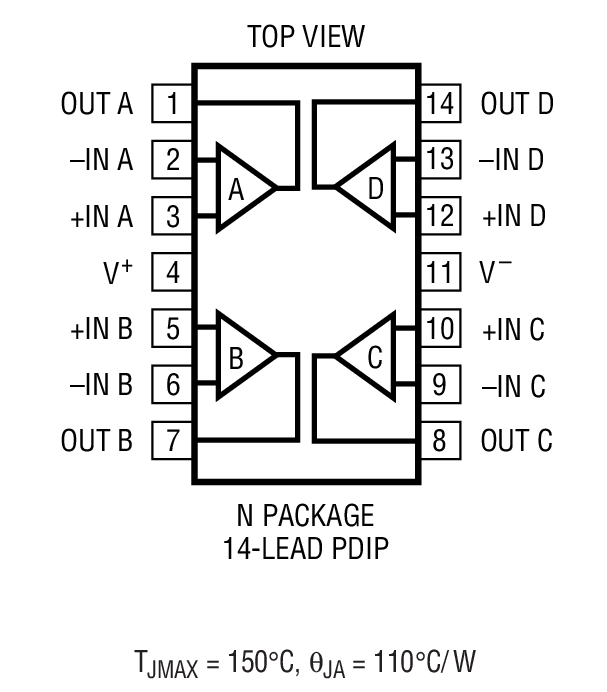

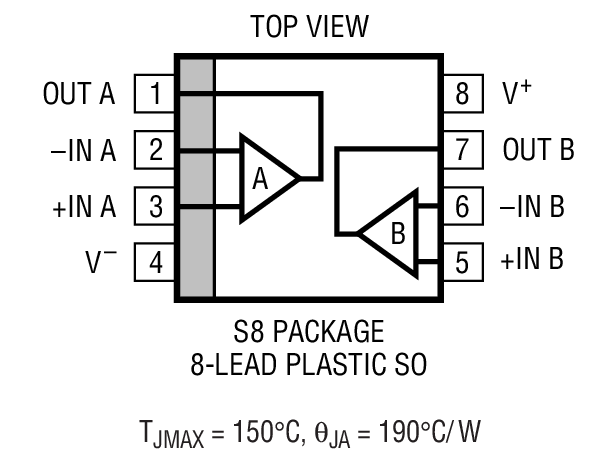

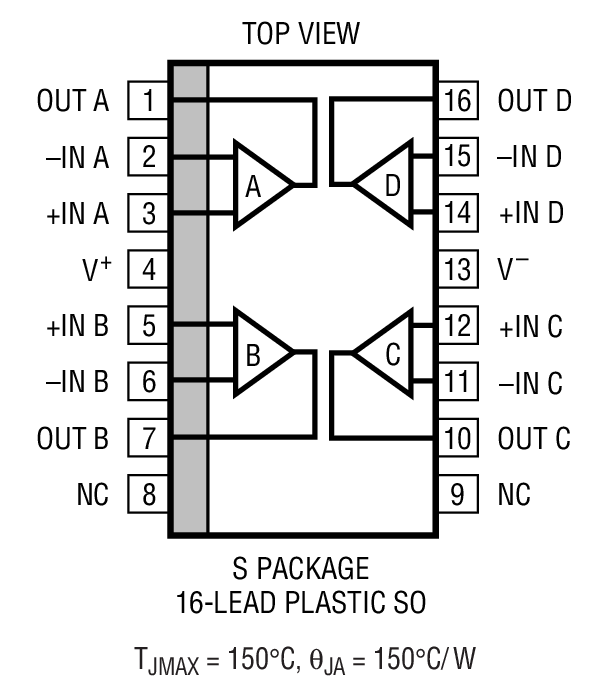

LT1362 - 封装图解：

LT1362 - LT1362是Dual and Quad 50MHz, 800V/µs Op Amps

LT1362是Linear公司的一款高速放大器产品，LT1362是Dual and Quad 50MHz, 800V/µs Op Amps，本站介绍了LT1362的封装应用图解、特点和优点、功能等，并给出了与LT1362相关的凌力尔特元器件型号供参考。

LT1362 - Dual and Quad 50MHz, 800V/µs Op Amps

LT1362 - Dual and Quad 50MHz, 800V/µs Op Amps - Linear Technology（凌力尔特）

功能描述

The LT1361/LT1362 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500 Ohms load to ±13V with ±15V supplies and a 150 Ohms load to ±3.2V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer or cable driving applications. The LT1361/LT1362 are members of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced bipolar complementary processing. For a single amplifier version of the LT1361/LT1362 see the LT1360 data sheet. For higher bandwidth devices with higher supply currents see the LT1363 through LT1365 data sheets. For lower supply current amplifiers see the LT1354 to LT1359 data sheets. Singles, duals, and quads of each amplifier are available.

特点

50MHz Gain-Bandwidth

800V/µs Slew Rate

5mA Maximum Supply Current per Amplifier

Unity-Gain Stable

C-LoadTM Op Amp Drives All Capacitive Loads

9nV/ rt Hz Input Noise Voltage

1mV Maximum Input Offset Voltage

1µA Maximum Input Bias Current

250nA Maximum Input Offset Current

±13V Minimum Output Swing into 500 ohms

±3.2V Minimum Output Swing into 150 ohms
