LT1469-2是Dual 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1469-2

LT1469-2技术文档下载：

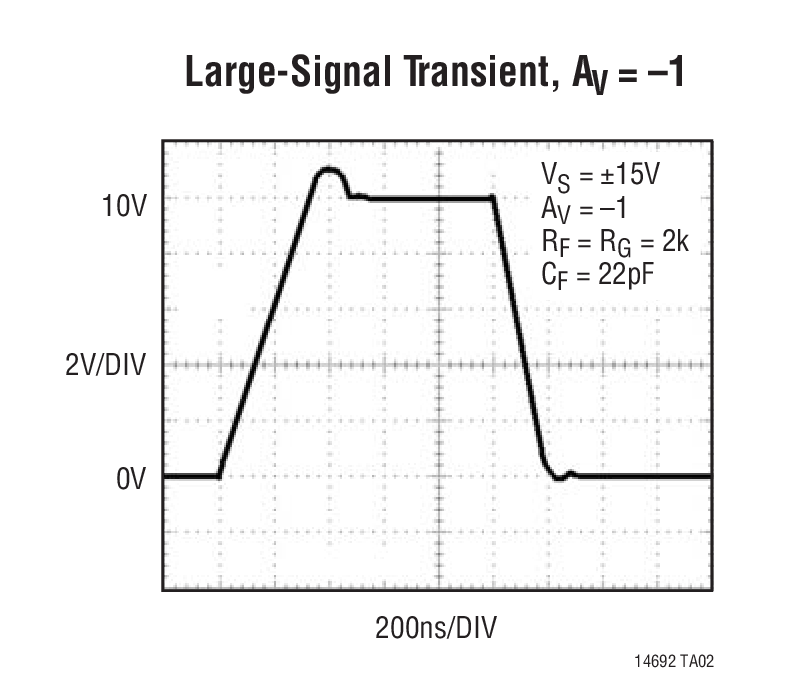

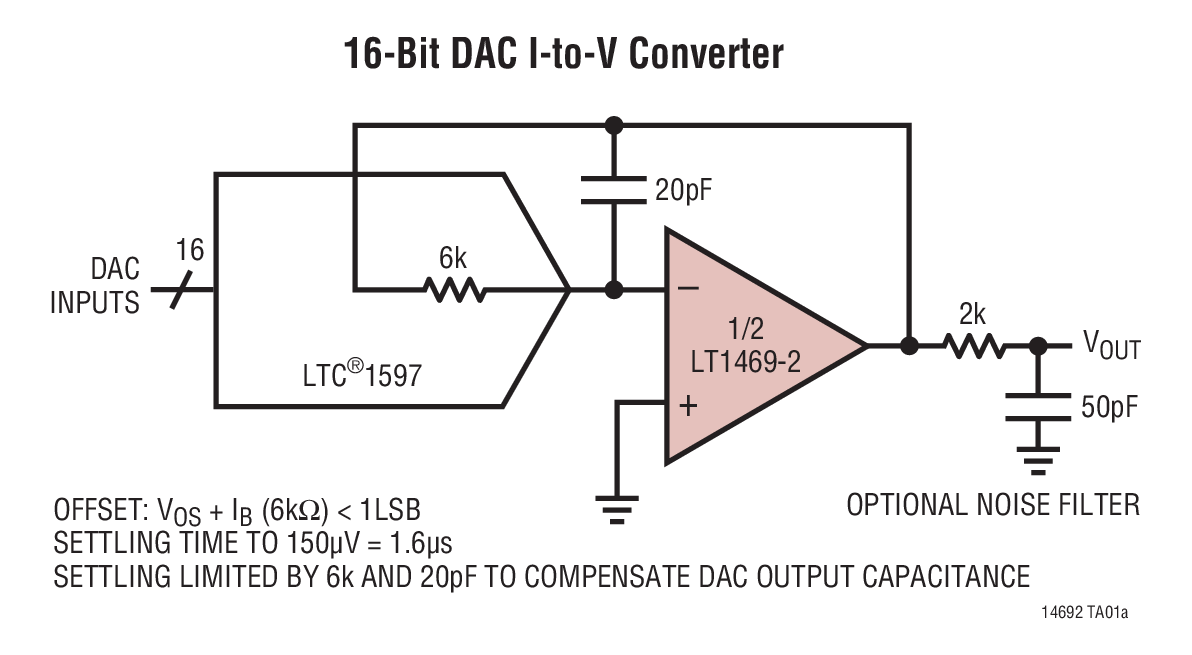

LT1469-2 - 典型应用图例：

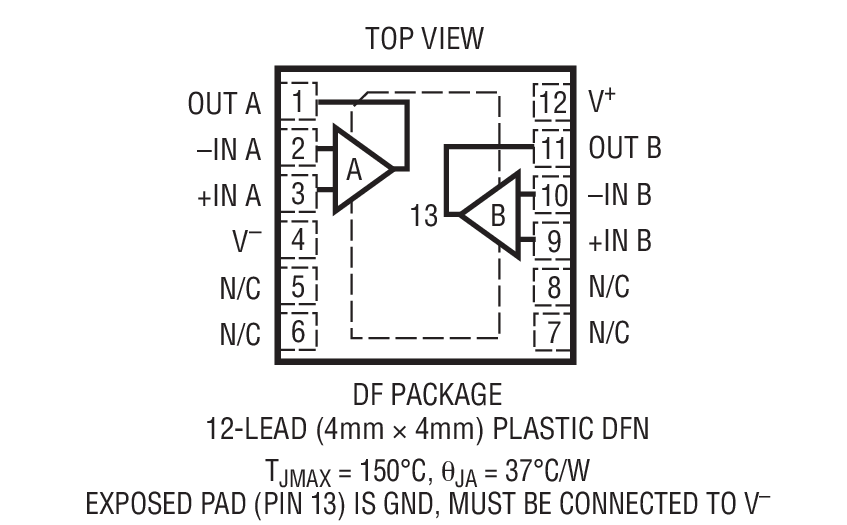

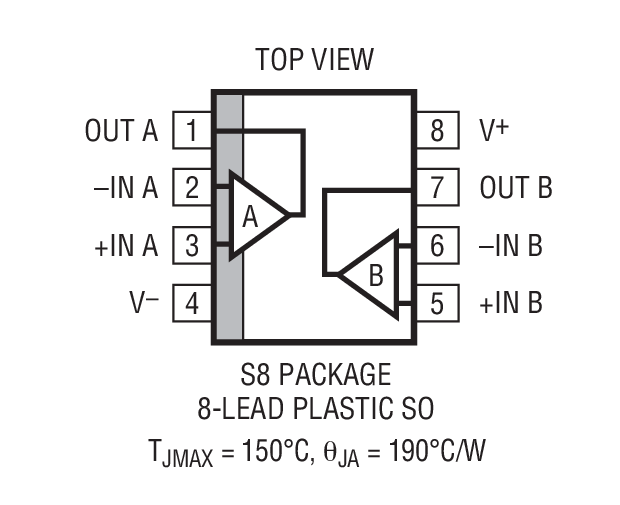

LT1469-2 - 封装图解：

LT1469-2 - LT1469-2是Dual 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp

LT1469-2是Linear公司的一款精准放大器产品，LT1469-2是Dual 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp，本站介绍了LT1469-2的封装应用图解、特点和优点、功能等，并给出了与LT1469-2相关的凌力尔特元器件型号供参考。

LT1469-2 - Dual 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp

LT1469-2 - Dual 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1469-2 is a dual, precision high speed operational amplifier with 16-bit accuracy, decompensated to be stable in a gain of 2 or greater. The combination of precision and AC performance makes the LT1469-2 the optimum choice for high accuracy applications such as DAC current-to-voltage conversion and ADC buffers. The initial accuracy and drift characteristics of the input offset voltage and inverting input bias current are tailored for inverting applications.

The 200MHz gain bandwidth ensures high open-loop gain at frequency for reducing distortion. In noninverting applications such as an ADC buffer, the low distortion and DC accuracy allow full 16-bit AC and DC performance. The high slew rate of the LT1469-2 improves large-signal performance in applications such as active filters and instrumentation amplifiers compared to other precision op amps.

The LT1469-2 is specified on power supply voltages of ±5V and ±15V and from –40°C to 85°C. It is available in an 8-lead SOIC package and a space saving 4mm × 4mm leadless package. For a unity-gain stable op amp with same DC performance, see the LT1469 datasheet.

特点

Stable in Gain AV ≥ 2 (AV = –1)

200MHz Gain Bandwidth Product

30V/μs Slew Rate

Settling Time: 800ns (150μV, 10V Step)

Specified at ±5V and ±15V Supplies

Maximum Input Offset Voltage: 125μV

Low Distortion: –96.5dB for 100kHz, 10VP-P

Maximum Input Offset Voltage Drift: 3μV/°C

Maximum Inverting Input Bias Current: 10nA

Minimum DC Gain: 300V/mV

Minimum Output Swing into 2k: ±12.8V

Input Noise Voltage: 5nV/√Hz

Input Noise Current: 0.6pA/√Hz

Total Input Noise Optimized for 1kΩ < RS < 20kΩ

Available in 8-Lead Plastic SO and 12-Lead (4mm × 4mm) DFN Packages

应用

LT1469 - 双通道、90MHz、22V/μs、准确度达16位的运算放大器

LT1028 - 超低噪声、精准型高速运算放大器

LT1364 - Dual and Quad 70MHz, 1000V/μs Op Amps

LT1115 - Ultra-Low Noise, Low Distortion, Audio Op Amp

LT1468 - 90MHz、22V/μs、16 位准确度的运算放大器

LT1128 - 超低噪声、精准型高速运算放大器

LT1010 - 快速 ±150mA 电源缓冲器

LT5400 - 四个匹配的电阻器

LT1124 - 双路、低噪声、高速、精准运放

LT1468-2 - 200MHz、30V/μs、16 位准确度、Av ≥ 2 运放

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1469ACDF-2#PBF	4x4 DFN-12	C	$8.62	$5.97
LT1469ACDF-2#TRPBF	4x4 DFN-12	C		$6.03
LT1469AIDF-2#PBF	4x4 DFN-12	I	$10.10	$7.00
LT1469AIDF-2#TRPBF	4x4 DFN-12	I		$7.06
LT1469CDF-2#PBF	4x4 DFN-12	C	$5.85	$4.95
LT1469CS8-2#PBF	SO-8	C	$5.85	$4.95
LT1469CS8-2#TRPBF	SO-8	C		$5.01
LT1469IDF-2#PBF	4x4 DFN-12	I	$7.05	$5.95
LT1469IDF-2#TRPBF	4x4 DFN-12	I		$6.01
LT1469IS8-2#PBF	SO-8	I	$7.05	$5.95
LT1469IS8-2#TRPBF	SO-8	I		$6.01
