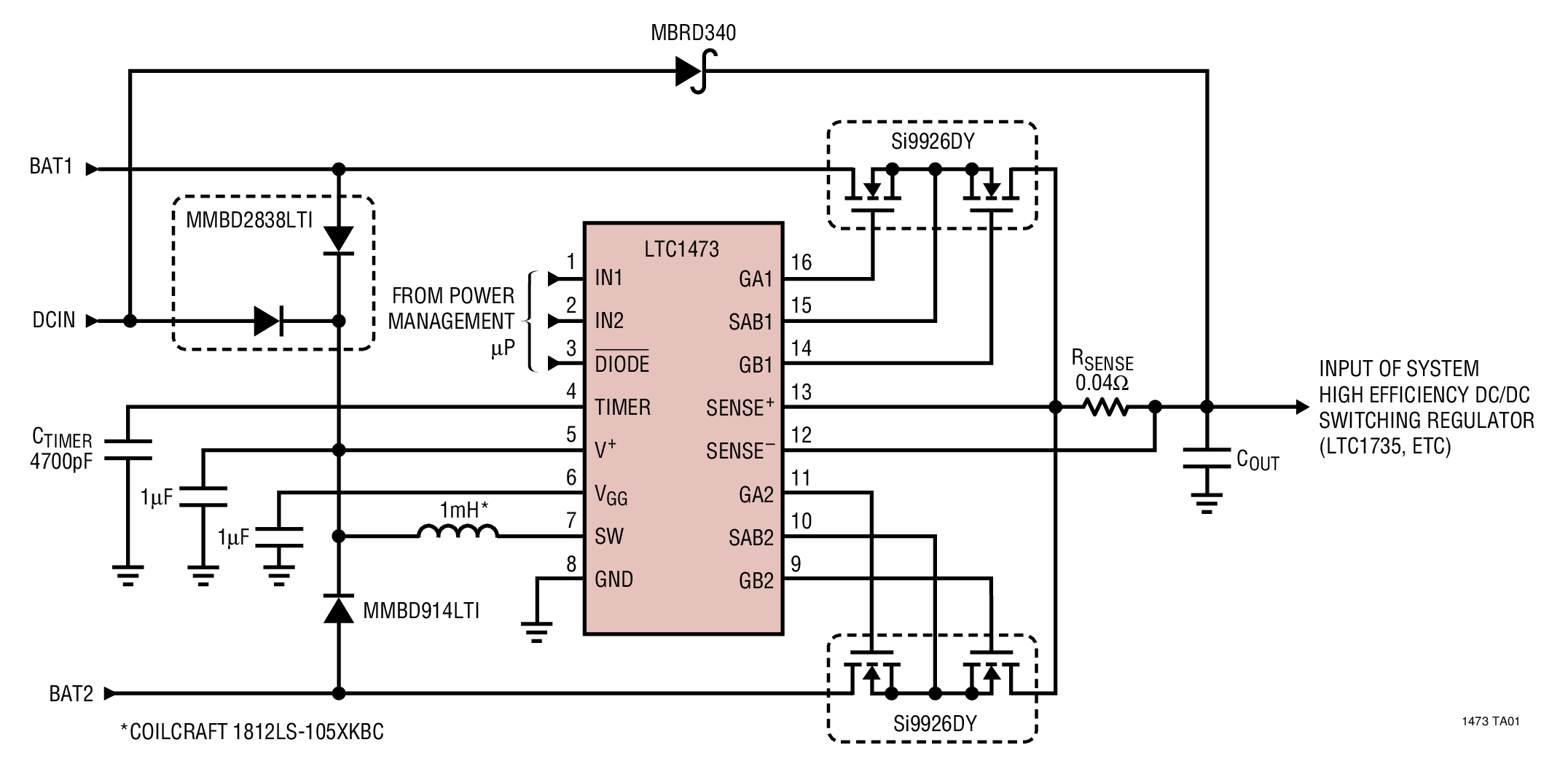

LTC1473 - 典型应用图例：

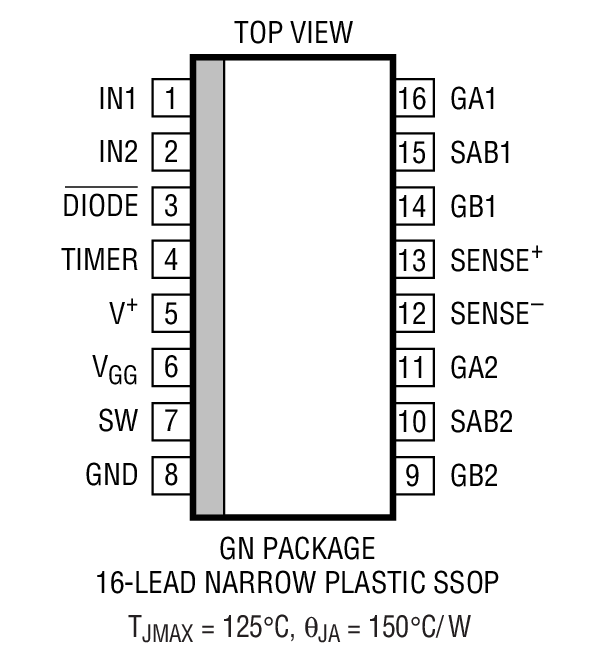

LTC1473 - 封装图解：

LTC1473 - LTC1473是Dual PowerPath?Switch Driver

LTC1473是Linear公司的一款PowerPath 控制器和理想二极管产品，LTC1473是Dual PowerPath?Switch Driver，本站介绍了LTC1473的封装应用图解、特点和优点、功能等，并给出了与LTC1473相关的凌力尔特元器件型号供参考。

LTC1473 - Dual PowerPath?Switch Driver

LTC1473 - Dual PowerPath?Switch Driver - Linear Technology（凌力尔特）

功能描述

The LTC1473 provides a power management solution for single and dual battery notebook computers and other portable equipment. The LTC1473 drives two sets of back-to-back N-channel MOSFET switches to route power to the input of the main system switching regulator. An internal boost regulator provides the voltage to fully enchance the logic level N-channel MOSFET switches. The LTC1473 senses current to limit surge currents both into and out of the batteries and the system supply capacitor during switch-over transitions or during fault conditions. A user-programmable timer monitors the time the MOSFET switches are in current limit and latches them off when programmed time is exceeded. A unique "2-diode mode" logic ensures system start-up regardless of which input receives power first.

特点

Power Path Management for Systems with Multiple DC Sources

All N-Channel Switching to Reduce Power Losses and System Cost

Switches and Isolates Sources Up to 30V

Adaptive High Voltage Step-Up Regulator for N-Channel Gate Drive

Capacitor Inrush and Short-Circuit Current Limited

User-Programmable Timer to Limit Switch Dissipation

Small Footprint: 16-Pin Narrow SSOP

应用

Notebook Computers

Portable Instruments

Handi-Terminals

Portable Medical Equipment

Portable Industrial Control Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1473CGN	SSOP-16	C	$4.40	$3.55
LTC1473CGN#PBF	SSOP-16	C	$4.40	$3.55
LTC1473CGN#TR	SSOP-16	C		$3.61
LTC1473CGN#TRPBF	SSOP-16	C		$3.61
LTC1473IGN	SSOP-16	I	$5.30	$4.30
LTC1473IGN#PBF	SSOP-16	I	$5.30	$4.30
LTC1473IGN#TR	SSOP-16	I		$4.36
LTC1473IGN#TRPBF	SSOP-16	I		$4.36
