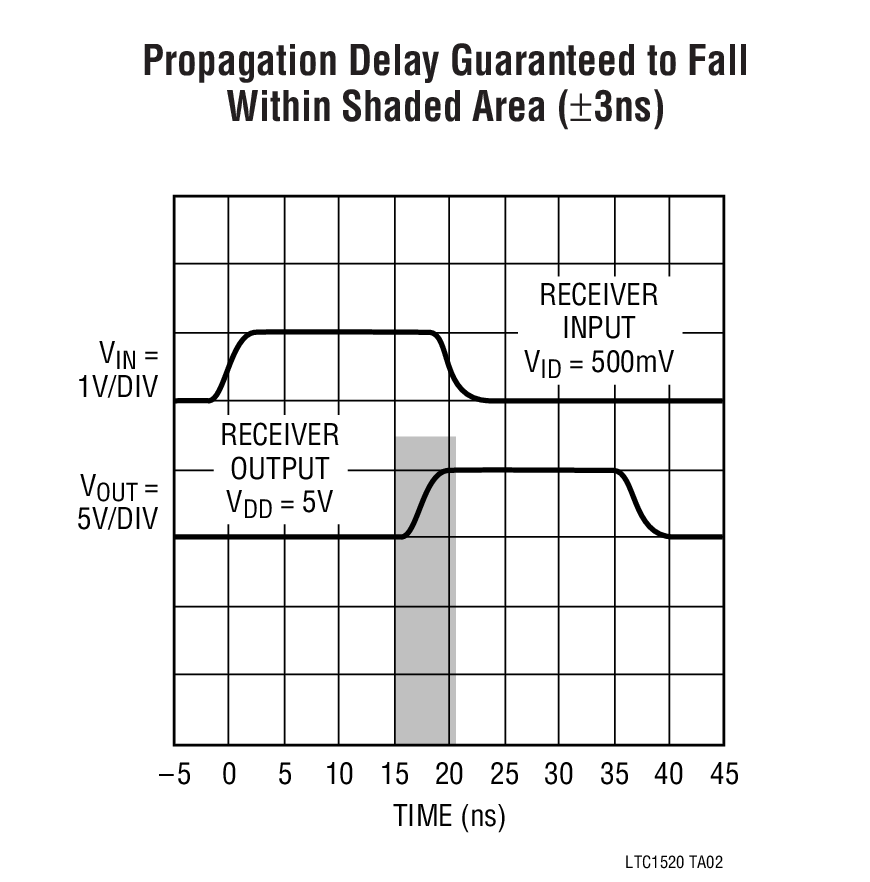

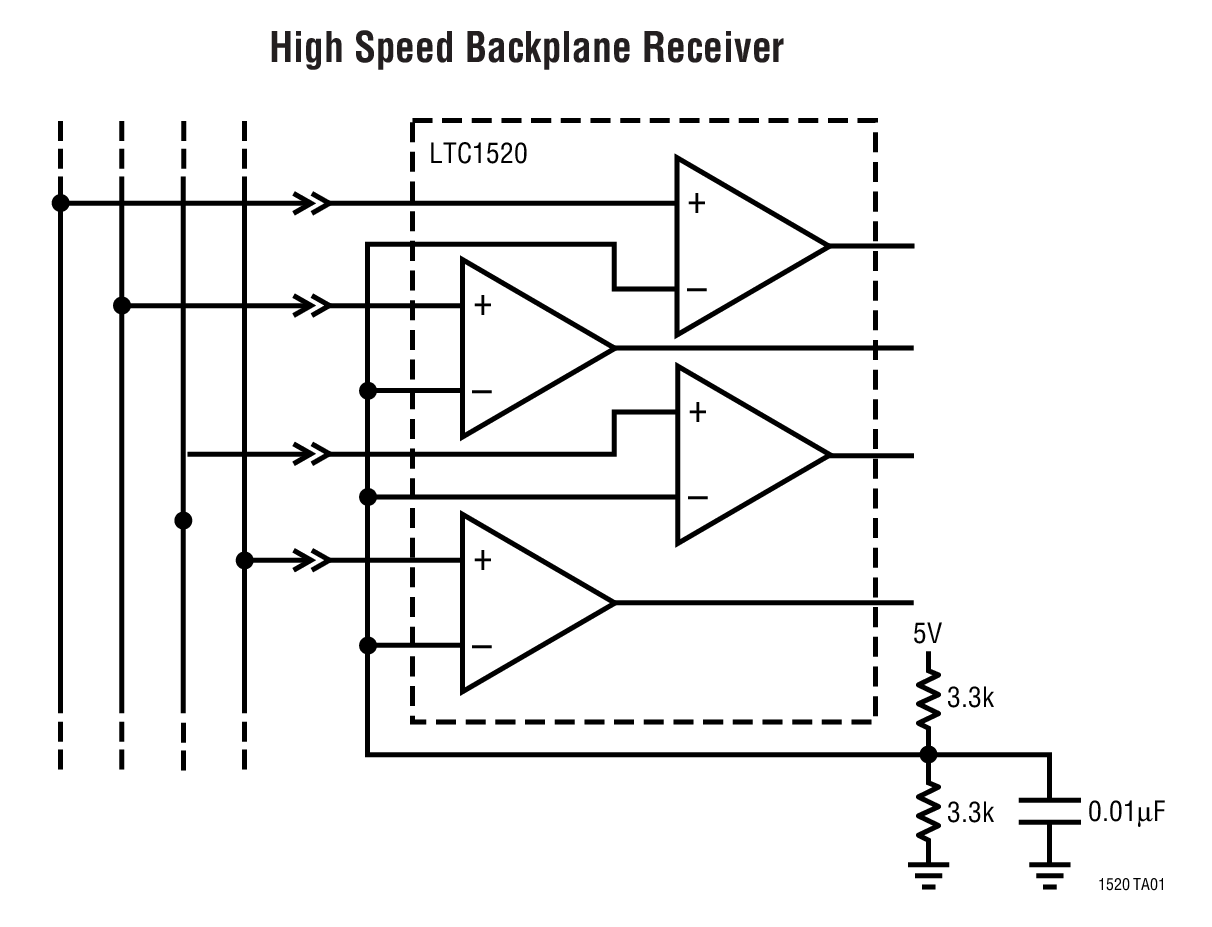

LTC1520 - 典型应用图例：

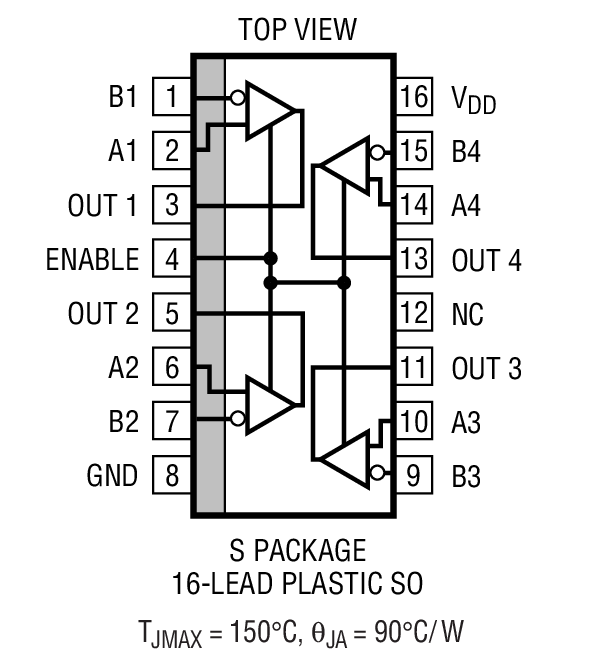

LTC1520 - 封装图解：

LTC1520 - LTC1520是50Mbps Precision Quad Line Receiver

LTC1520是Linear公司的一款RS485 / RS422 收发器产品，LTC1520是50Mbps Precision Quad Line Receiver，本站介绍了LTC1520的封装应用图解、特点和优点、功能等，并给出了与LTC1520相关的凌力尔特元器件型号供参考。

LTC1520 - 50Mbps Precision Quad Line Receiver

LTC1520 - 50Mbps Precision Quad Line Receiver - Linear Technology（凌力尔特）

功能描述

The LTC®1520 is a high speed, precision differential line receiver that can operate at data rates as high as 50Mbps. A unique architecture provides very stable propagation delays and low skew over a wide input common mode, input overdrive and ambient temperature range. Propagation delay is 18ns ±3ns, while typically tPLH/tPHL skew is 500ps and channel-to-channel skew is 400ps.Each receiver translates differential input levels (VID >/= 100mV) into valid CMOS and TTL output levels. Its high input resistance (>18k/=) allows many receivers to be connected to the same driver. The receiver outputs go into a high impedance state when disabled.Protection features include thermal shutdown and a controlled maximum short-circuit current (50mA max) that does not oscillate in and out of short-circuit mode. Input resistance remains >/=18k when the device is unpowered or disabled, thus allowing the LTC1520 to be hot swapped into a backplane without loading the data lines.The LTC1520 operates from a single 5V supply and draws 12mA of supply current. The part is available in a 16-lead narrow SO package.

特点

Precision Propagation Delay: 18ns ±3ns Over Temperature

Data Rate: 50Mbps

Low tPLH/tPHL Skew: 500ps Typ

Low Channel-to-Channel Skew: 400ps Typ

Rail-to-Rail Input Common Mode Range

High Input Resistance: >/=18k, Even When Unpowered

Hot Swap Capable

Can Withstand Input DC Levels of ±10V

Short-Circuit Protected

Single 5V Supply

LVDS Compatible
