LTC1543 - LTC1543是Software-Selectable Multiprotocol Transceiver
LTC1543是Linear公司的一款多协议收发器产品，LTC1543是Software-Selectable Multiprotocol Transceiver，本站介绍了LTC1543的封装应用图解、特点和优点、功能等，并给出了与LTC1543相关的凌力尔特元器件型号供参考。
LTC1543 - Software-Selectable Multiprotocol Transceiver
LTC1543 - Software-Selectable Multiprotocol Transceiver - Linear Technology（凌力尔特）
功能描述

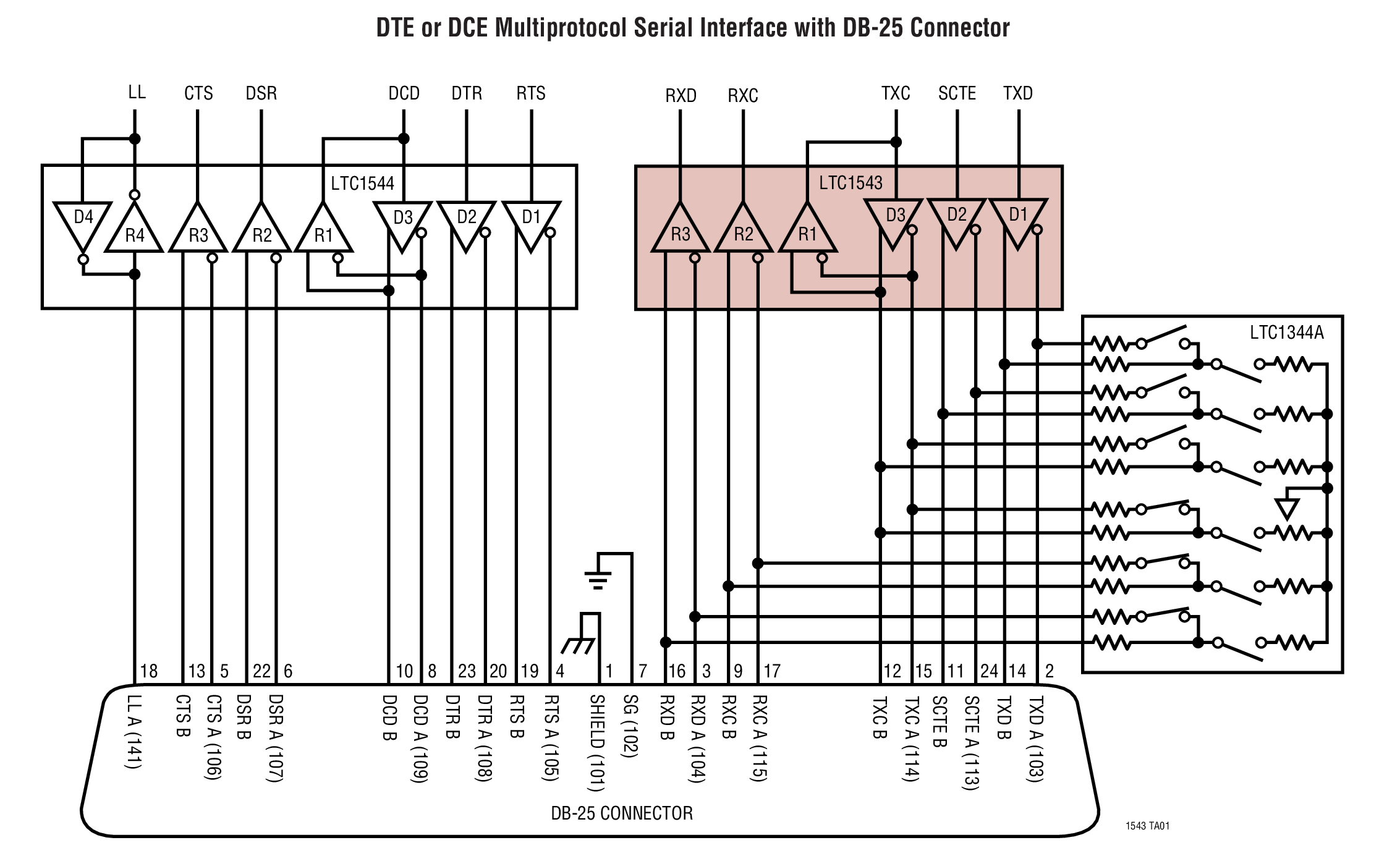

The LTC1543 is a 3-driver/3-receiver multiprotocol transceiver that operates from a single 5V supply. The LTC1543 and LTC1544 form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 or X.21 protocols. Cable termination may be implemented using the LTC1344A software-selectable cable termination chip or by using existing discrete designs.

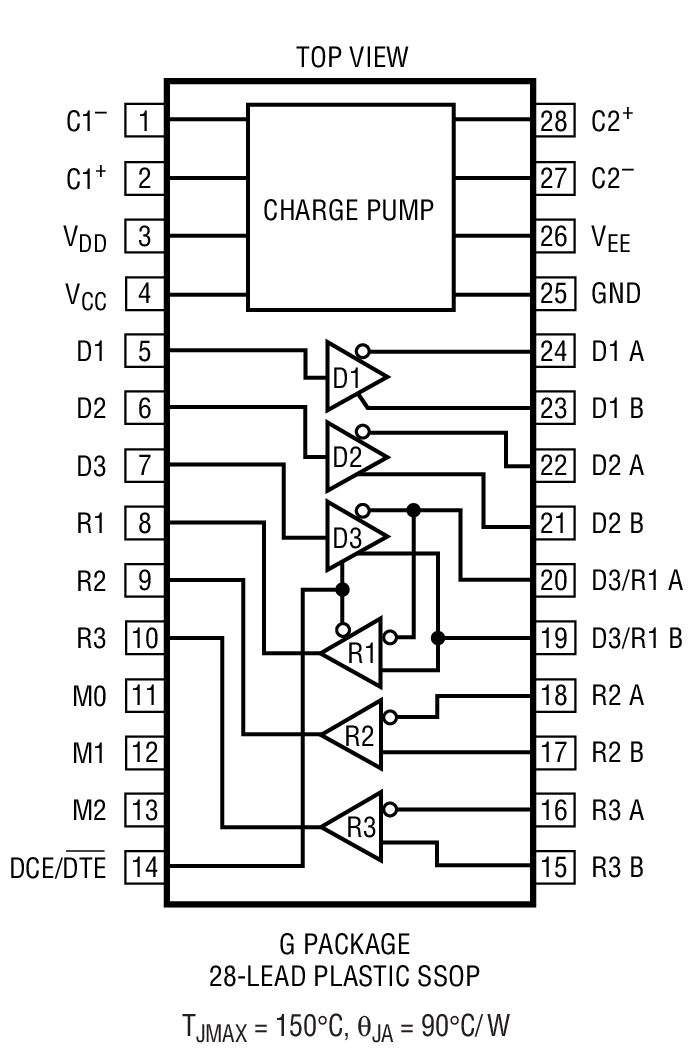

The LTC1543 runs from a single 5V supply using an internal charge pump that requires only five space-saving surface mounted capacitors. The part is available in a 28-lead SSOP surface mount package.
特点
Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21 TUV/Detecon Inc. Certified NET1 and NET2 Compliant (Test Report No. NET2/102201/97) TBR2 Compliant (Test Report No. CTR2/022701/98) Software-Selectable Cable Termination Using the LTC1344A Complete DTE or DCE Port with LTC1544, LTC1344A Operates from Single 5V Supply应用
Data Networking CSU and DSU Data Routers以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1543CG | SSOP-28 | C | $8.50 | $7.00 |
| LTC1543CG#PBF | SSOP-28 | C | $8.50 | $7.00 |
| LTC1543CG#TR | SSOP-28 | C | | $7.08 |
| LTC1543CG#TRPBF | SSOP-28 | C | | $7.08 |
| LTC1543IG | SSOP-28 | I | $9.90 | $8.40 |
| LTC1543IG#PBF | SSOP-28 | I | $9.90 | $8.40 |
| LTC1543IG#TR | SSOP-28 | I | | $8.48 |
| LTC1543IG#TRPBF | SSOP-28 | I | | $8.48 |
