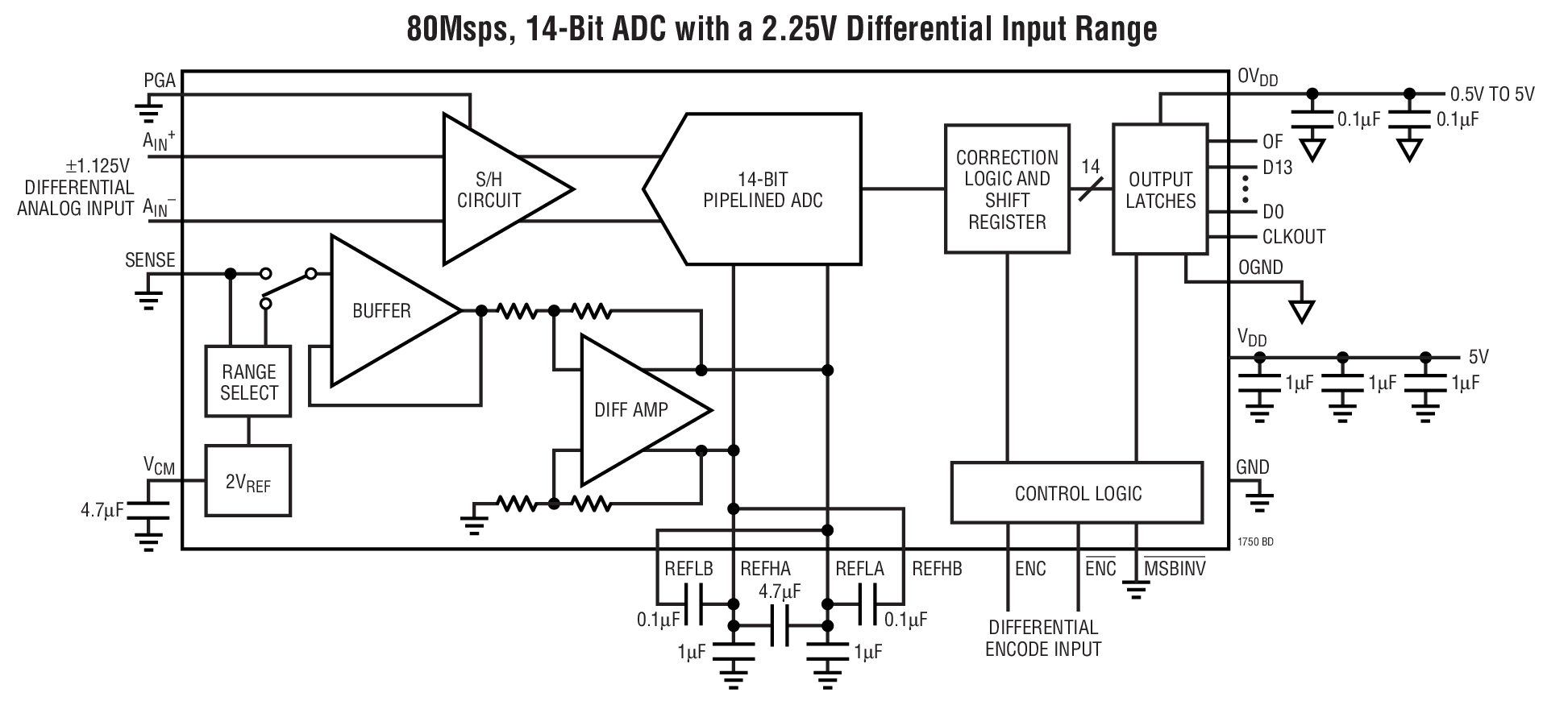

LTC1750 - 典型应用图例：
LTC1750典型应用图例一

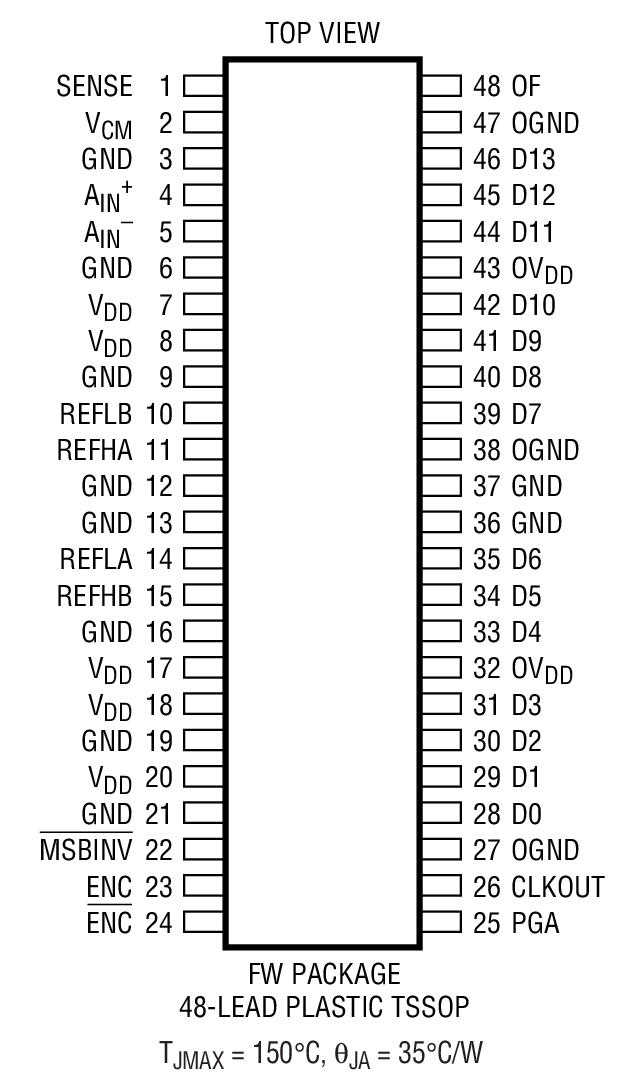

LTC1750 - 封装图解：
LTC1750封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1750介绍

LTC1750 - LTC1750是14-Bit, 80Msps Wide Bandwidth ADC

LTC1750是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1750是LTC1750是14-Bit, 80Msps Wide Bandwidth ADC，本站介绍了LTC1750的封装应用图解、特点和优点、功能等，并给出了与LTC1750相关的LINEAR元器件型号供参考。

LTC1750 - LTC1750是14-Bit, 80Msps Wide Bandwidth ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC1750 - 14-Bit, 80Msps Wide Bandwidth ADC

LTC1750 - 14-Bit, 80Msps Wide Bandwidth ADC - Linear Technology（凌力尔特）

功能描述

The LTC1750 is an 80Msps, 14-bit A/D converter designed for digitizing wide dynamic range signals up to frequencies of 500MHz. The input range of the ADC can be optimized with the on-chip PGA sample-and-hold circuit and flexible reference circuitry.

The LTC1750 has a highly linear sample-and-hold circuit with a bandwidth of 500MHz. The SFDR is 82dB with an input frequency of 250MHz. Ultralow jitter of 0.12psRMS allows undersampling of IF frequencies with minimal degradation in SNR. DC specs include ±3LSB INL and no missing codes.

The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.

The 48-pin TSSOP package with a flow-through pinout simplifies the board layout.

特点
  • Sample Rate: 80Msps
  • 500MHz Full Power Bandwidth S/H
  • Direct IF Sampling Up to 500MHz
  • PGA Front End (2.25VP-P or 1.35VP-P Input Range)
  • 75.5dB SNR and 90dB SFDR (PGA = 0)
  • 73dB SNR and 90dB SFDR (PGA = 1)
  • No Missing Codes
  • Single 5V Supply
  • Power Dissipation: 1.45W
  • Two Pin Selectable Reference Values
  • Two’s Complement or Offset Binary Outputs
  • Out-of-Range Indicator
  • Data Ready Output Clock
  • Pin-for-Pin Family
  • 48-Pin TSSOP Package
    • 应用
  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems
  • MRI
  • Tomography
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1750CFW TSSOP-48 C $46.13 $32.30
    LTC1750CFW#PBF TSSOP-48 C $46.13 $32.30
    LTC1750CFW#TR TSSOP-48 C $32.40
    LTC1750CFW#TRPBF TSSOP-48 C $32.40
    LTC1750IFW TSSOP-48 I $54.29 $38.00
    LTC1750IFW#PBF TSSOP-48 I $54.29 $38.00
    LTC1750IFW#TR TSSOP-48 I $38.10
    LTC1750IFW#TRPBF TSSOP-48 I $38.10
