LTC8043技术文档下载：

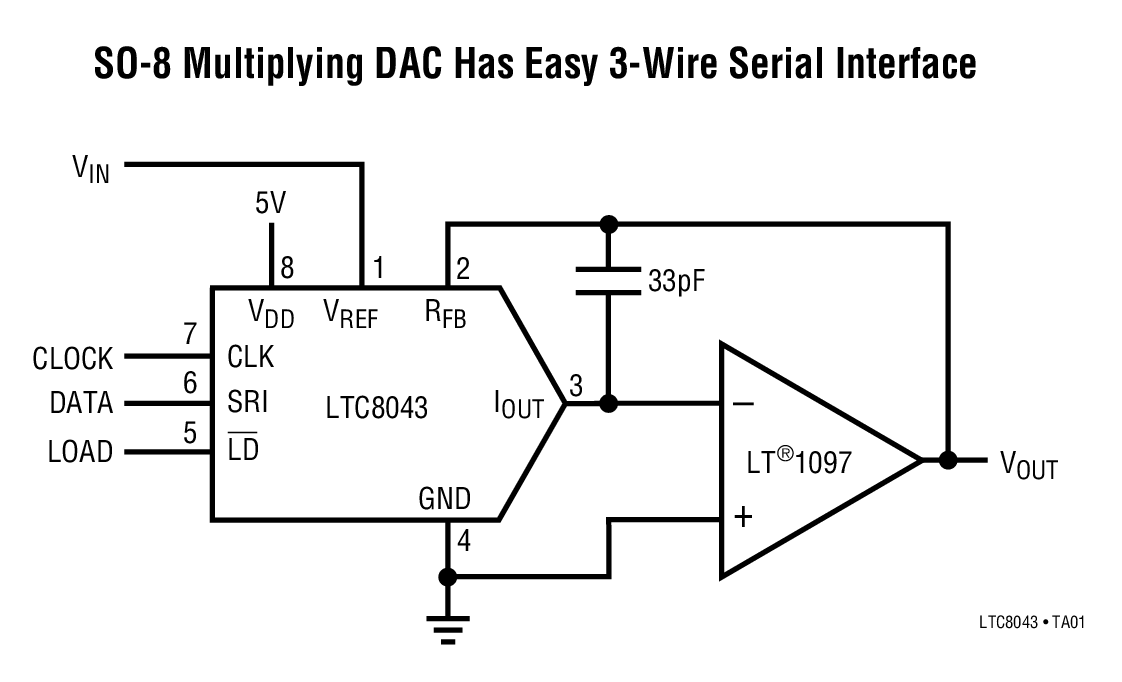

LTC8043 - 典型应用图例：

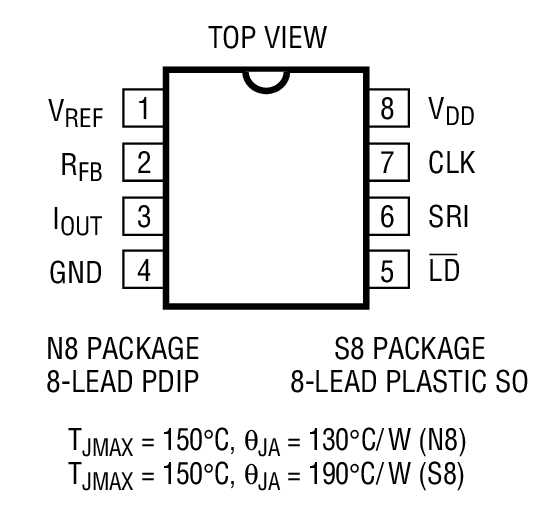

LTC8043 - 封装图解：
LTC8043 - LTC8043是Serial 12-Bit Multiplying DAC in SO-8
LTC8043是Linear公司的一款电流输出 DAC产品，LTC8043是Serial 12-Bit Multiplying DAC in SO-8，本站介绍了LTC8043的封装应用图解、特点和优点、功能等，并给出了与LTC8043相关的凌力尔特元器件型号供参考。
LTC8043 - Serial 12-Bit Multiplying DAC in SO-8
LTC8043 - Serial 12-Bit Multiplying DAC in SO-8 - Linear Technology（凌力尔特）
功能描述
The LTC8043 is a serial-input 12-bit multiplying digital-to-analog converter (DAC). It is a superior pin compatible replacement for the DAC-8043. Improvements include better accuracy, better stability over temperature and supply variations, lower sensitivity to output amplifier offset, tighter timing specifications and lower output capacitance.An easy-to-use 3-wire serial interface is well-suited to remote or isolated applicationsThe LTC8043 is extremely versatile. It can be used for 2-quadrant and 4-quadrant multiplying, programmable gain and single supply applications, such as noninverting voltage output mode.Parts are available in 8-pin SO and PDIP packages and are specified over the extended industrial temperature range, ?40°C to 85°C. 特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC8043EN8 | N-8 | E | $6.10 | $5.00 |
| LTC8043EN8#PBF | N-8 | E | $6.10 | $5.00 |
| LTC8043ES8 | SO-8 | E | $6.10 | $5.00 |
| LTC8043ES8#PBF | SO-8 | E | $6.10 | $5.00 |
| LTC8043ES8#TR | SO-8 | E | $5.06 | |
| LTC8043ES8#TRPBF | SO-8 | E | $5.06 | |
| LTC8043FN8 | N-8 | I | $5.85 | $4.80 |
| LTC8043FN8#PBF | N-8 | I | $5.85 | $4.80 |
| LTC8043FS8 | SO-8 | C | $5.85 | $4.80 |
| LTC8043FS8#PBF | SO-8 | C | $5.85 | $4.80 |
| LTC8043FS8#TR | SO-8 | C | $4.86 | |
| LTC8043FS8#TRPBF | SO-8 | C | $4.86 |
