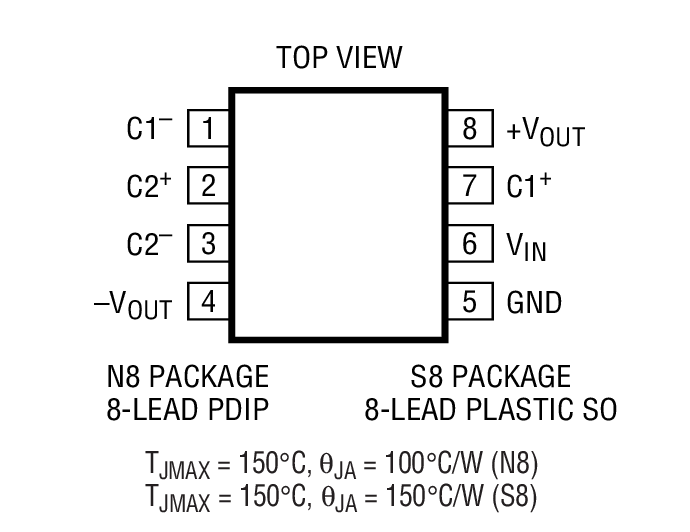

LT1026是Linear公司的一款未调整的倍压 / 负输出充电泵产品，LT1026是Voltage Converter，本站介绍了LT1026的封装应用图解、特点和优点、功能等，并给出了与LT1026相关的凌力尔特元器件型号供参考。
LT1026 - Voltage Converter
LT1026 - Voltage Converter - Linear Technology（凌力尔特）

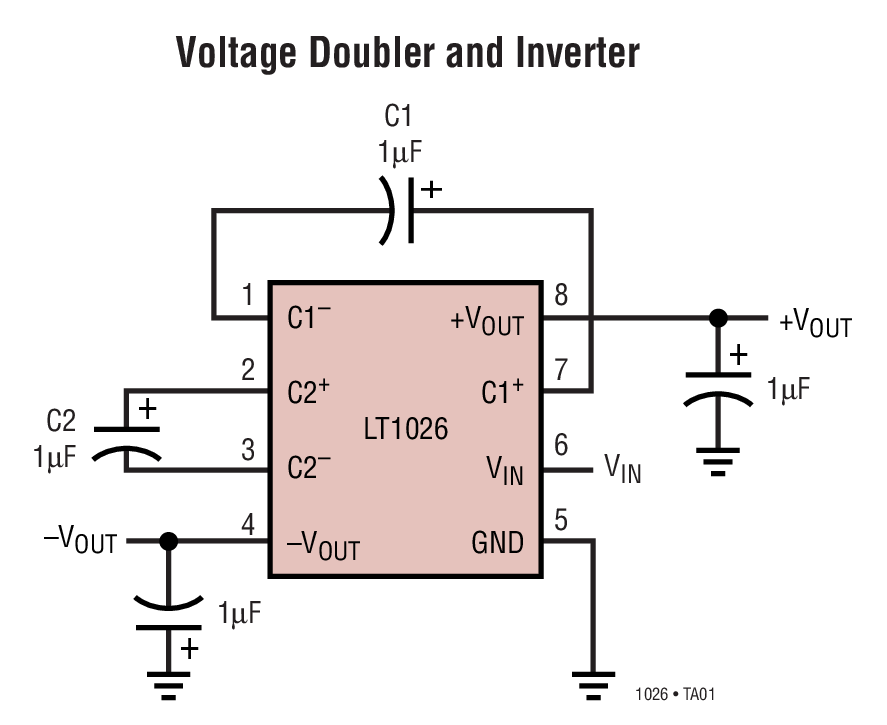

The LT®1026 is a switched capacitor voltage doubler andinverter on a single monolithic die. Capable of operatingfrom a 4V to 10V input, it provides ±7V to ±18V output.Output currents of over 10mA are available. Two chargepumps first double the input voltage then invert thedoubled voltage. Manufactured in bipolar technology, theLT1026 is not susceptible to latchup and generates up to36V.
The LT1026 offers a convenient way of generating additionalsystem voltages without using inductors. Poweringinterface circuits, op amps or data acquisition circuitry offlogic supplies is simplified.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1026CN8 | N-8 | C | $2.50 | $2.05 |
| LT1026CN8#PBF | N-8 | C | $2.50 | $2.05 |
| LT1026CS8 | SO-8 | C | $2.83 | $2.25 |
| LT1026CS8#PBF | SO-8 | C | $2.83 | $2.25 |
| LT1026CS8#TR | SO-8 | C | $2.31 | |
| LT1026CS8#TRPBF | SO-8 | C | $2.31 | |
| LT1026IS8 | SO-8 | I | $3.36 | $2.85 |
| LT1026IS8#PBF | SO-8 | I | $3.36 | $2.85 |
| LT1026IS8#TR | SO-8 | I | $2.91 | |
| LT1026IS8#TRPBF | SO-8 | I | $2.91 |
