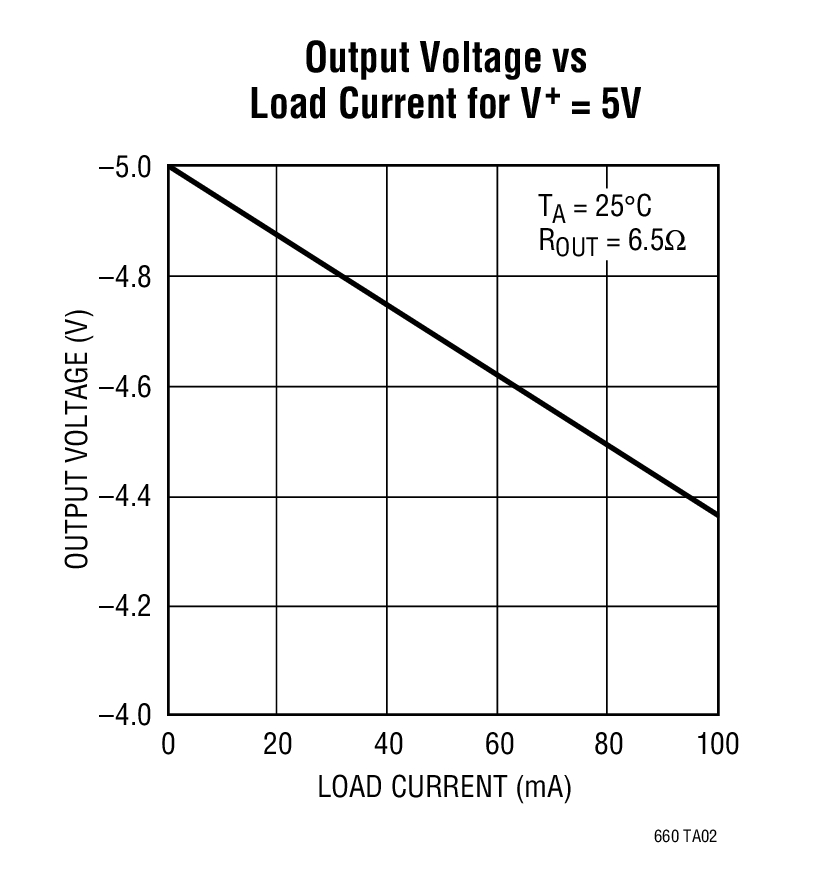

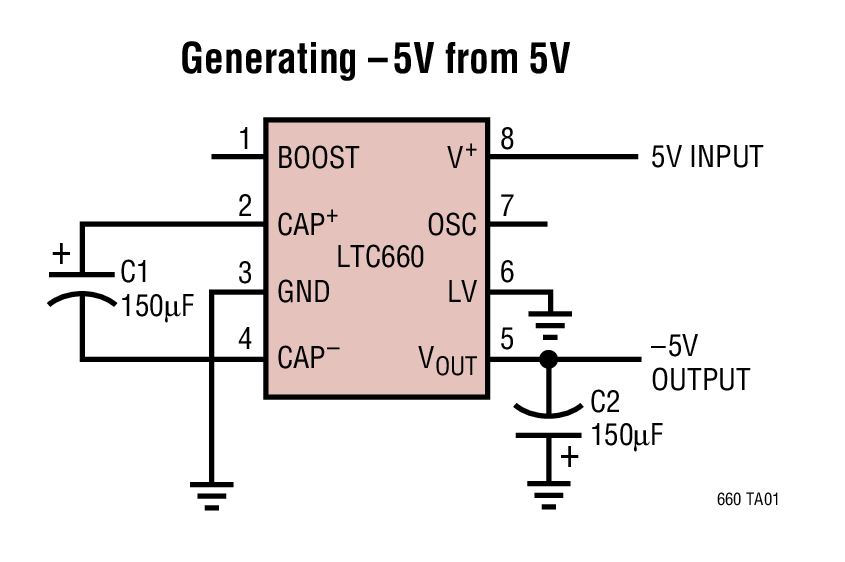

LTC660 - 典型应用图例：

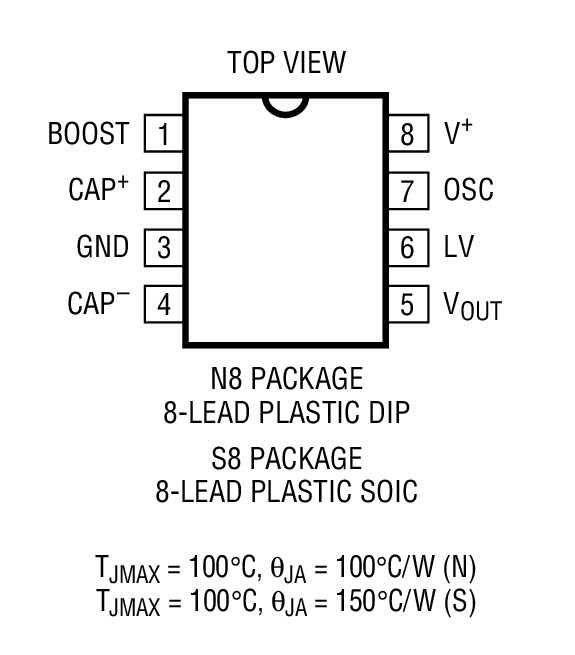

LTC660 - 封装图解：

LTC660 - LTC660是100mA CMOS Voltage Converter

LTC660是Linear公司的一款未调整的倍压 / 负输出充电泵产品，LTC660是100mA CMOS Voltage Converter，本站介绍了LTC660的封装应用图解、特点和优点、功能等，并给出了与LTC660相关的凌力尔特元器件型号供参考。

LTC660 - 100mA CMOS Voltage Converter

LTC660 - 100mA CMOS Voltage Converter - Linear Technology（凌力尔特）

功能描述

The LTC®660 is a monolithic CMOS switched-capacitor voltage converter. It performs supply voltage conversion from positive to negative from an input range of 1.5V to 5.5V, resulting in complementary output voltages of ?1.5V to ±5.5V. It also performs a doubling at an input voltage range of 2.5V to 5.5V, resulting in a doubled output voltage of 5V to 11V. Only two external capacitors are needed for the charge pump and charge reservoir functions.The converter has an internal oscillator that can be overdriven by an external clock or slowed down when connected to a capacitor. The oscillator runs at a 10kHz frequency when unloaded. A higher frequency outside the audio band can also be obtained if the BOOST pin is tied to V+.The LTC660 contains an internal oscillator, divide-by-two, voltage level shifter and four power MOSFETs.

特点

Simple Conversion of 5V to -5V Supply

Output Drive: 100mA

ROUT: 6.5 ohms (0.65V Loss at 100mA)

Boost Pin (Pin 1) for Higher Switching Frequency

Inverting and Doubling Modes

Minimum Open Circuit Voltage Conversion Efficiency: 99%

Typical Power Conversion Efficiency with a 100mA Load: 88%

Easy to Use

应用

Conversion of 5V to ±5V Supplies

Inexpensive Negative Supplies
