LT1027CCN8-5是Precision 5 Volt Reference

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1027CCN8-5

LT1027CCN8-5技术文档下载：

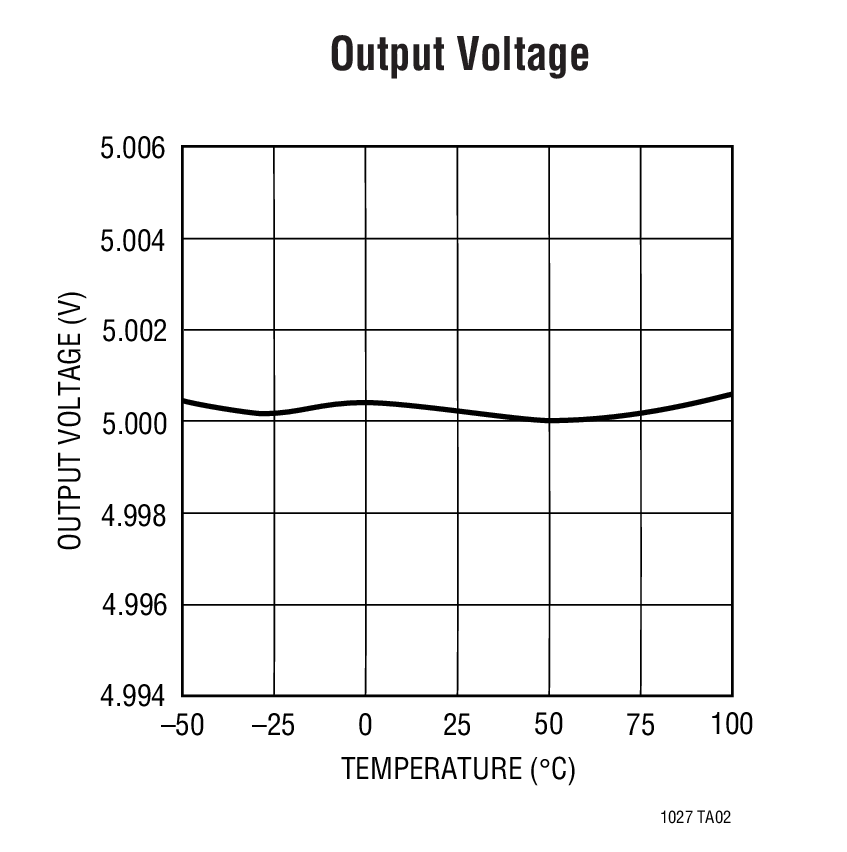

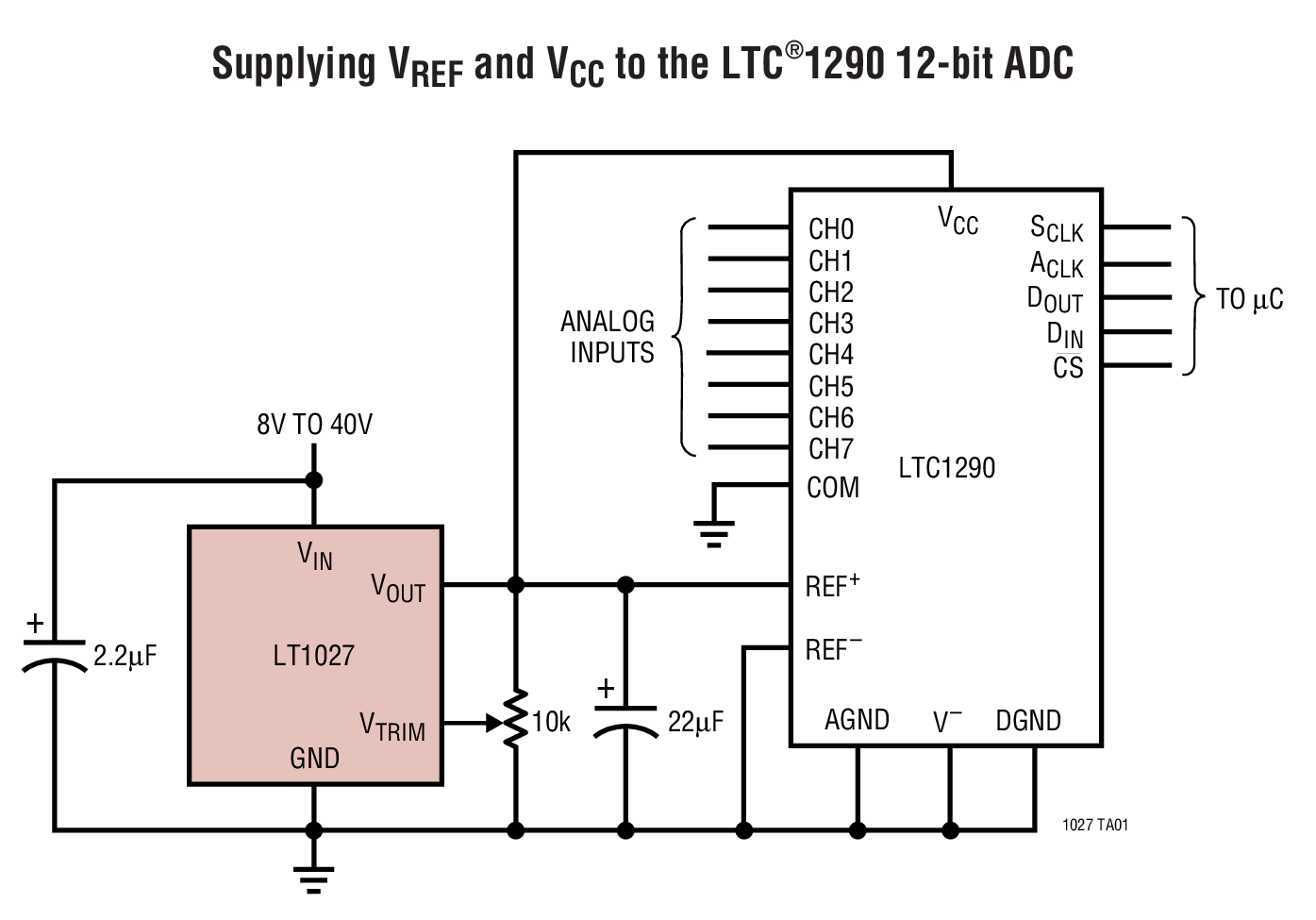

LT1027CCN8-5 - 典型应用图例：

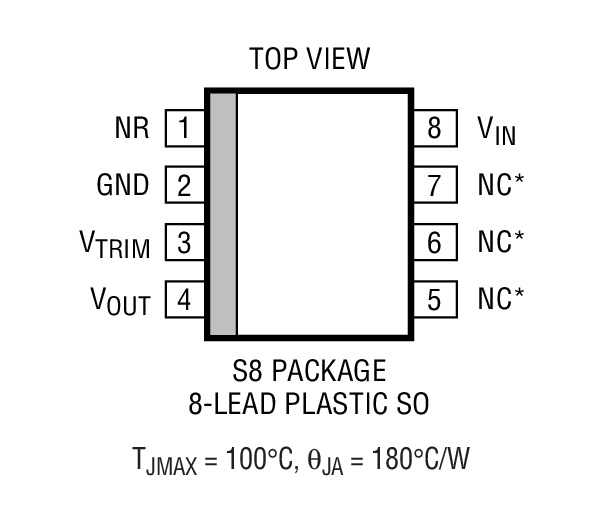

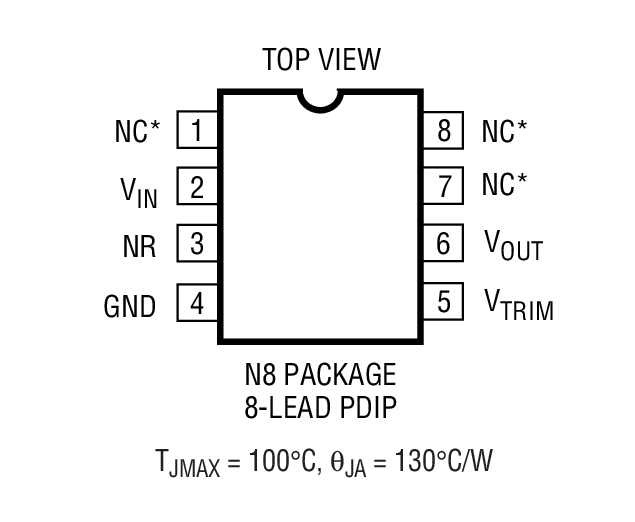

LT1027CCN8-5 - 封装图解：

LT1027CCN8-5 - LT1027CCN8-5是Precision 5 Volt Reference

LT1027CCN8-5是Linear公司的一款串联基准产品，LT1027CCN8-5是Precision 5 Volt Reference，本站介绍了LT1027CCN8-5的封装应用图解、特点和优点、功能等，并给出了与LT1027CCN8-5相关的凌力尔特元器件型号供参考。

LT1027CCN8-5 - Precision 5 Volt Reference

LT1027 - Precision 5 Volt Reference - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download Complete Datasheet for Details

The LT1027 is a precision reference with extra-low drift, superior accuracy, excellent line and load regulation and low output impedance at high frequency. This device is intended for use in 12- to 16-bit A-to-D and D-to-A systems where demanding accuracy requirements must be met without the use of power hungry, heated substrate references. The fast settling output recovers quickly from load transients such as those presented by A-to-D converter reference inputs. The LT1027 brings together both outstanding accuracy and temperature coefficient specifications.

The LT1027 reference is based on LTC’s proprietary advanced subsurface Zener bipolar process which eliminates noise and stability problems associated with surface breakdown devices.

特点

Very Low Drift: 2ppm/°C Max TC

Pin Compatible with LT1021-5, REF-02,(PDIP Packages Only)

Output Sources 15mA, Sinks 10mA

Excellent Transient Response Suitable for A-to-D Reference Inputs

Noise Reduction Pin

Excellent Long Term Stability

Less Than 1ppm P-P Noise (0.1Hz to 10Hz)

应用

A-to-D and D-to-A Converters

Digital Voltmeters

Reference Standard

Precision Current Source

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1027BCN8-5	N-8	C	$6.17	$4.85
LT1027BCN8-5#PBF	N-8	C	$6.17	$4.85
LT1027CCN8-5	N-8	C	$5.58	$4.40
LT1027CCN8-5#PBF	N-8	C	$5.58	$4.40
LT1027CCS8-5	SO-8	C	$5.20	$4.50
LT1027CCS8-5#PBF	SO-8	C	$5.20	$4.50
LT1027CCS8-5#TR	SO-8	C		$4.56
LT1027CCS8-5#TRPBF	SO-8	C		$4.56
LT1027DCN8-5	N-8	C	$4.92	$3.90
LT1027DCN8-5#PBF	N-8	C	$4.92	$3.90
LT1027DCS8-5	SO-8	C	$5.55	$4.70
LT1027DCS8-5#PBF	SO-8	C	$5.55	$4.70
LT1027DCS8-5#TR	SO-8	C		$4.76
LT1027DCS8-5#TRPBF	SO-8	C		$4.76
LT1027ECN8-5	N-8	C	$4.58	$3.60
LT1027ECN8-5#PBF	N-8	C	$4.58	$3.60
LT1027ECS8-5	SO-8	C	$3.10	$2.25
LT1027ECS8-5#PBF	SO-8	C	$3.10	$2.25
LT1027ECS8-5#TR	SO-8	C		$2.31
LT1027ECS8-5#TRPBF	SO-8	C		$2.31
