LT1226技术文档下载：

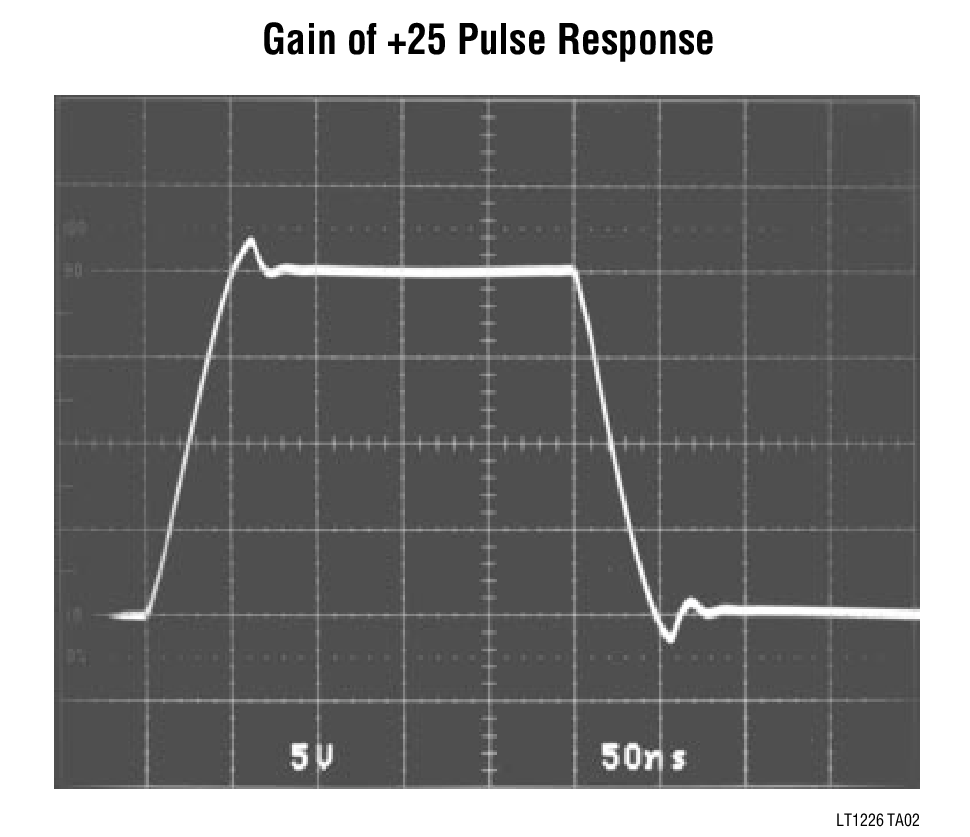

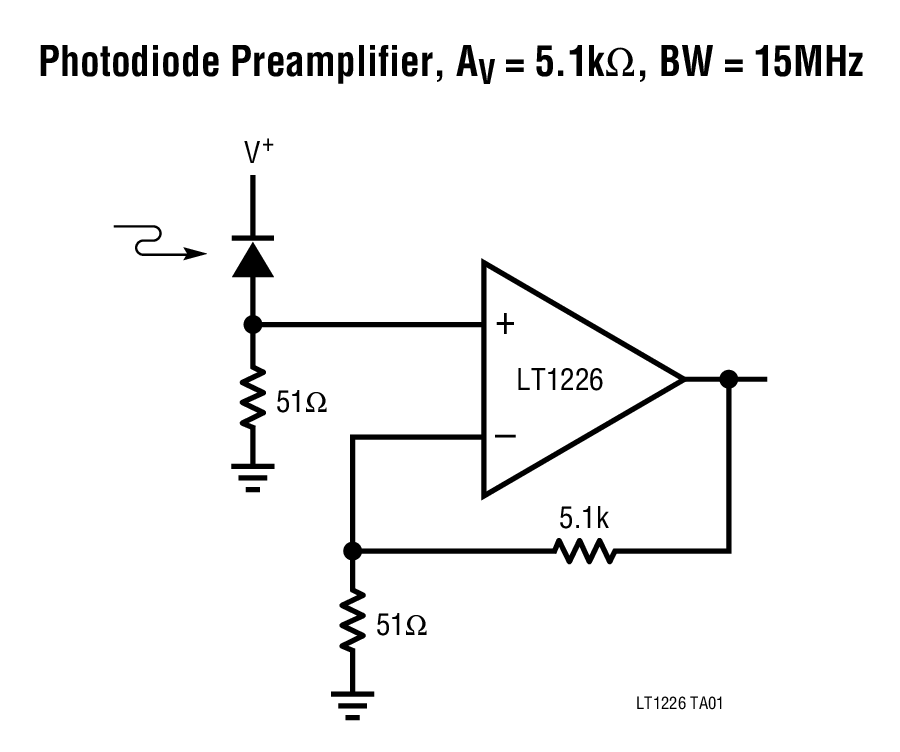

LT1226 - 典型应用图例：

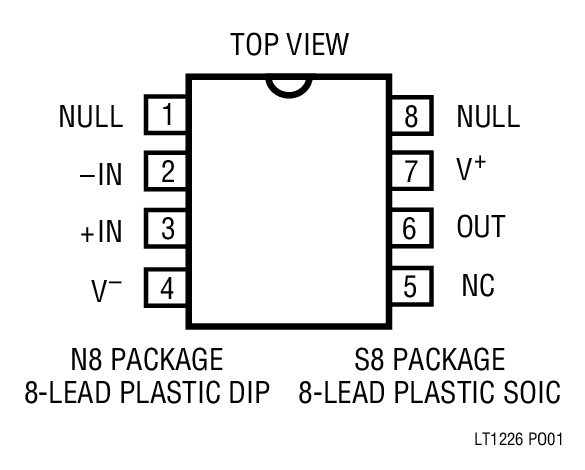

LT1226 - 封装图解：

LT1226 - LT1226是Low Noise Very High Speed Operational Amplifier

LT1226是Linear公司的一款高速放大器产品，LT1226是Low Noise Very High Speed Operational Amplifier，本站介绍了LT1226的封装应用图解、特点和优点、功能等，并给出了与LT1226相关的凌力尔特元器件型号供参考。

LT1226 - Low Noise Very High Speed Operational Amplifier

LT1226 - Low Noise Very High Speed Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT1226 is a low noise, very high speed operational amplifier with excellent DC performance. The LT1226 features low input offset voltage and high DC gain. The circuit is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.The LT1226 is a member of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

特点

Gain of 25 Stable

1GHz Gain Bandwidth

400V/µs Slew Rate

2.6nV/rtHz Input Noise Voltage

50V/mV Minimum DC Gain, RL = 500 ohms

1mV Maximum Input Offset Voltage

±12V Minimum Output Swing into 500 ohms

Wide Supply Range ±2.5V to ±15V

7mA Supply Current

100ns Settling Time to 0.1%, 10V Step

Drives All Capacitive Loads
