LT1227 - LT1227是140MHz Video Current Feedback Amplifier
LT1227是Linear公司的一款高速放大器产品，LT1227是140MHz Video Current Feedback Amplifier，本站介绍了LT1227的封装应用图解、特点和优点、功能等，并给出了与LT1227相关的凌力尔特元器件型号供参考。
LT1227 - 140MHz Video Current Feedback Amplifier
LT1227 - 140MHz Video Current Feedback Amplifier - Linear Technology（凌力尔特）
功能描述
The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

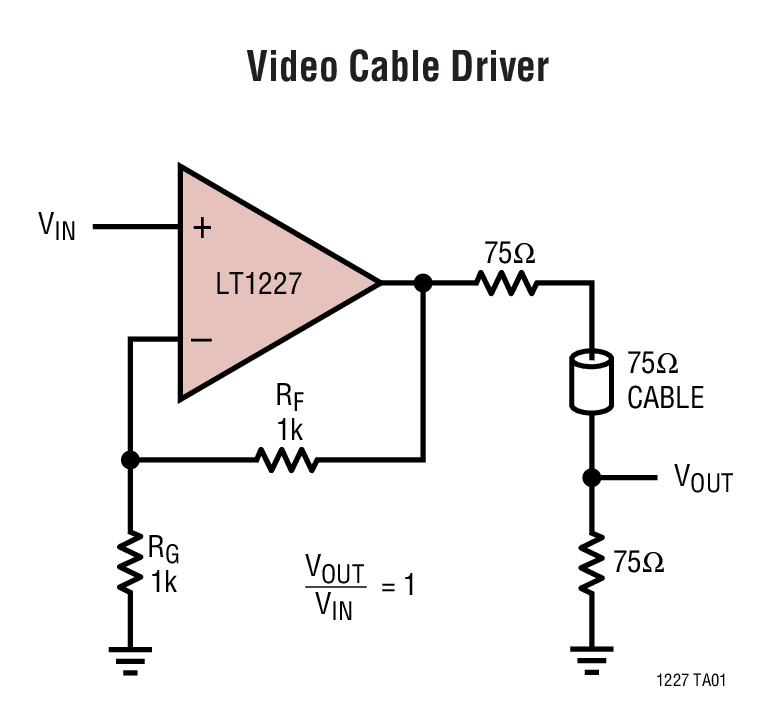

The LT1227 is a current feedback amplifier with wide bandwidth and excellent video characteristics. The low differential gain and phase, wide bandwidth, and 30mA output drive current make the LT1227 well suited to drive cables in video systems.
A shutdown feature switches the device into a high impedance, low current mode, allowing multiple devices to be connected in parallel and selected. Input to output isolation in shutdown is 70dB at 10MHz for input amplitudes up to 10VP-P. The shutdown pin interfaces to open collector or open drain logic and takes only 4mµ to enable or disable.
The LT1227 comes in the industry standard pinout and can upgrade the performance of many older products. For a dual or quad version, see the LT1229/1230 data sheet.
The LT1227 is manufactured on Linear Technology’s proprietary complementary bipolar process.
特点

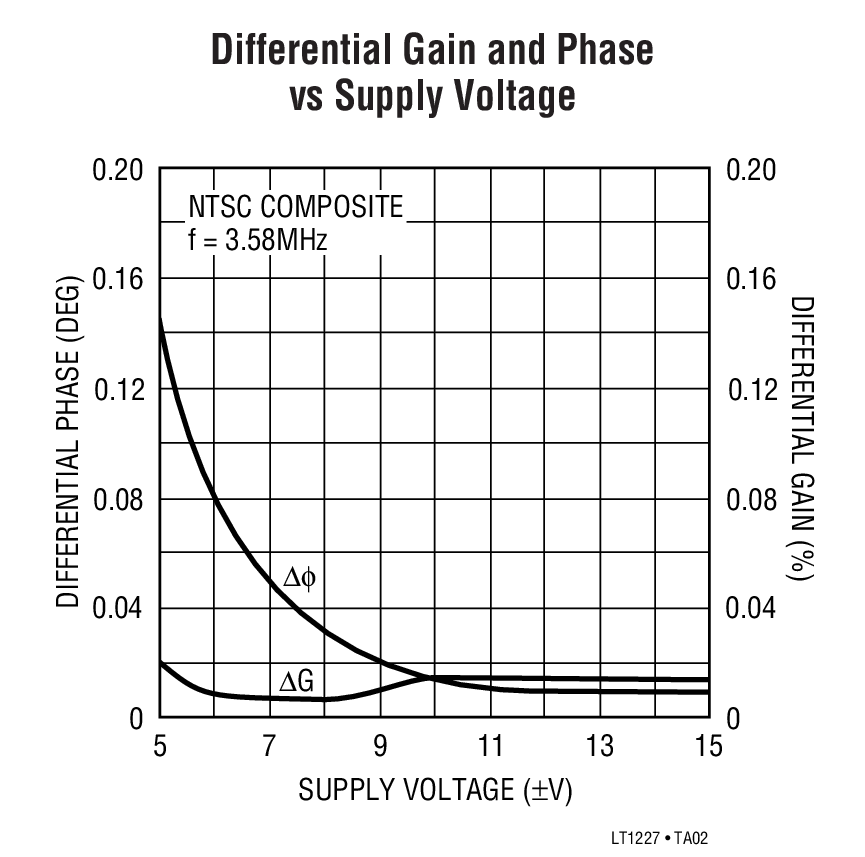

140MHz Bandwidth: AV = 2, RL = 150 ohms 1100V/µs Slew Rate Low Cost 30mA Output Drive Current 0.01% Differential Gain 0.01° Differential Phase High Input Impedance: 14M ohms, 3pF Wide Supply Range: ±2V to ±15V Shutdown Mode: IS <250µA Low Supply Current: IS = 10mA Inputs Common Mode to Within 1.5V of Supplies Outputs Swing Within 0.8V of Supplies应用
Video Amplifiers Cable Drivers RGB Amplifiers Test Equipment Amplifiers 50 Ohms Buffers for Driving Mixers以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |

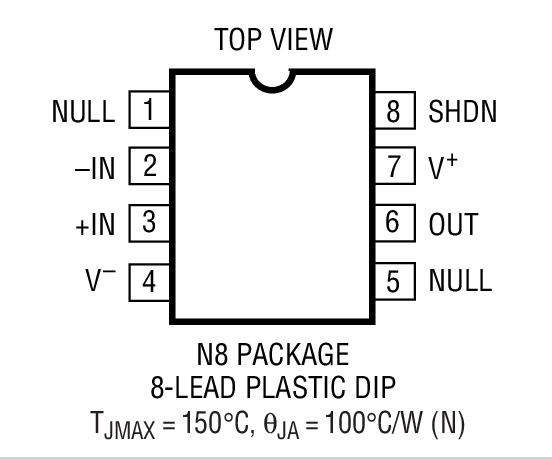

| LT1227CN8 | N-8 | C | $3.08 | $2.40 |
| LT1227CN8#PBF | N-8 | C | $3.08 | $2.40 |

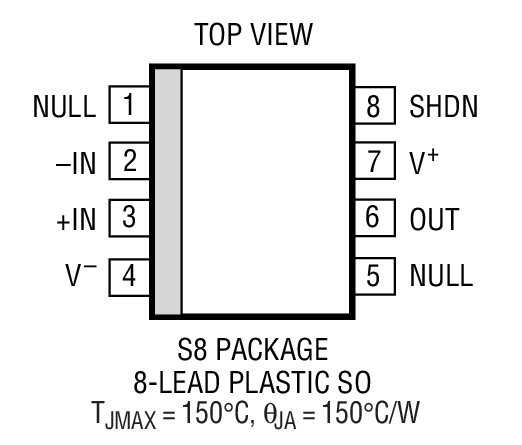

| LT1227CS8 | SO-8 | C | $3.58 | $2.85 |
| LT1227CS8#PBF | SO-8 | C | $3.58 | $2.85 |
| LT1227CS8#TR | SO-8 | C | | $2.91 |
| LT1227CS8#TRPBF | SO-8 | C | | $2.91 |
| LT1227MJ8 | CERDIP-8 | M | | $43.95 |
