LT1371技术文档下载：

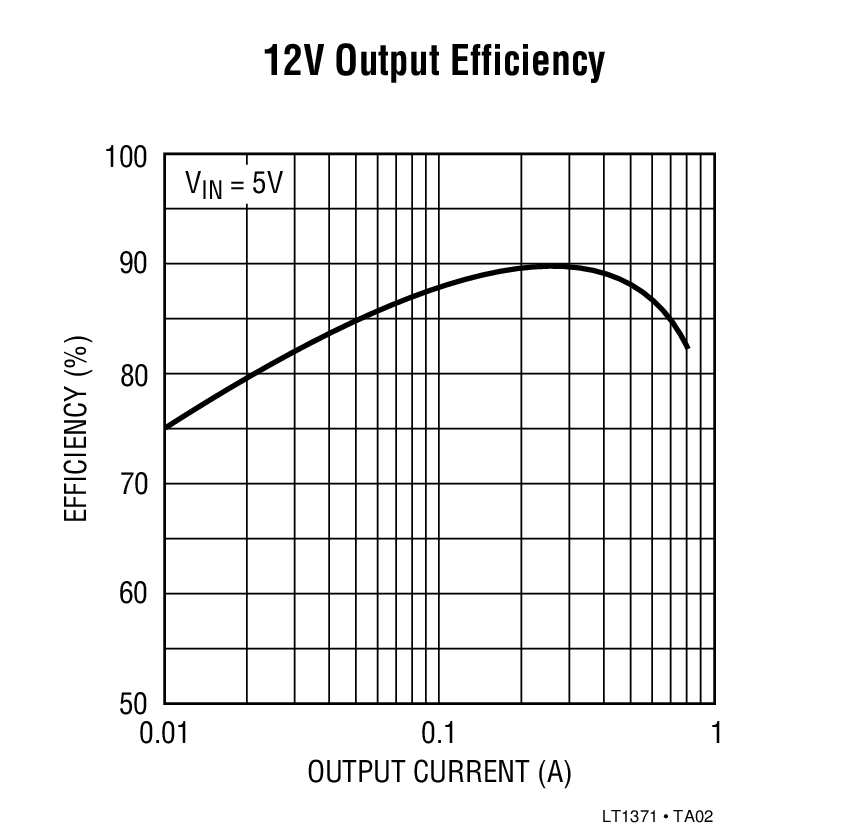

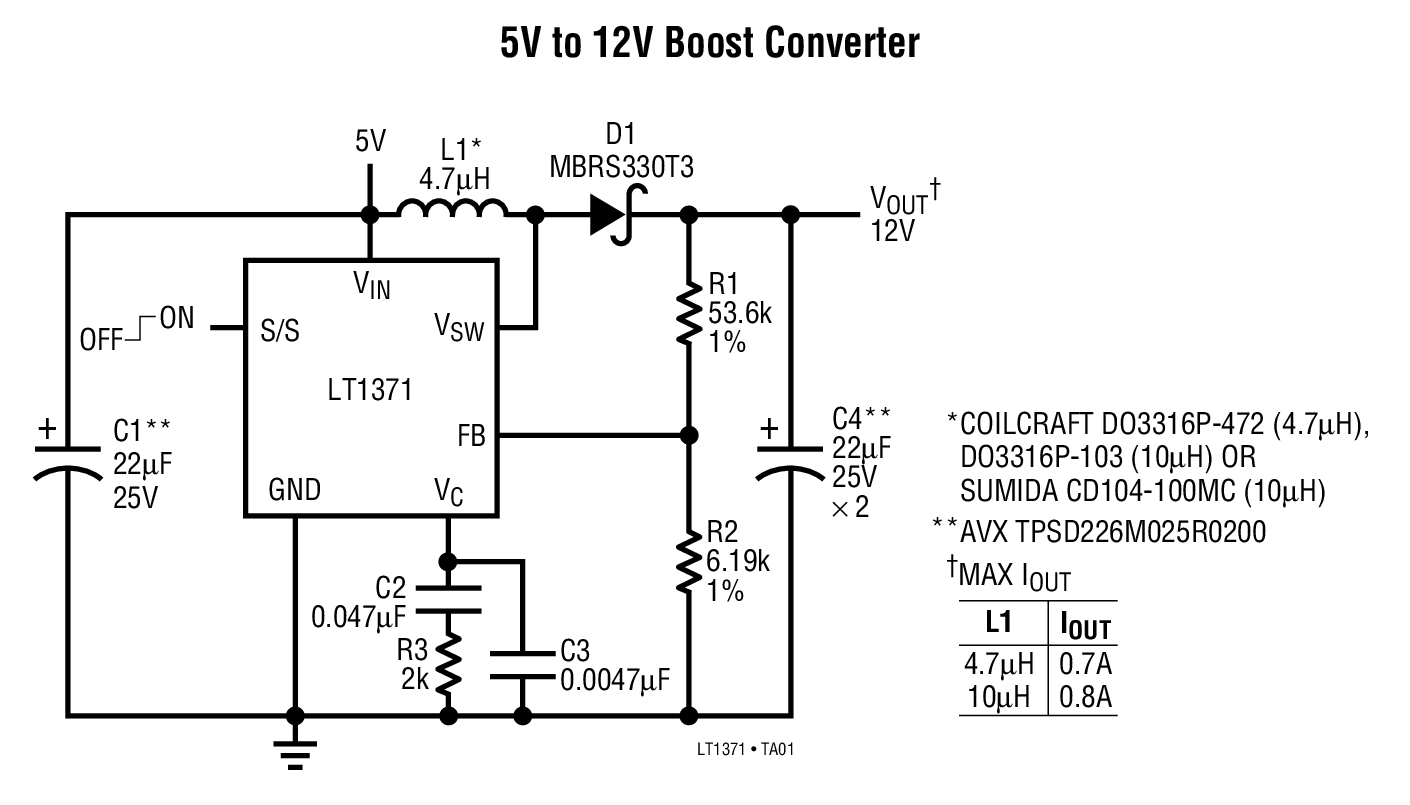

LT1371 - 典型应用图例：

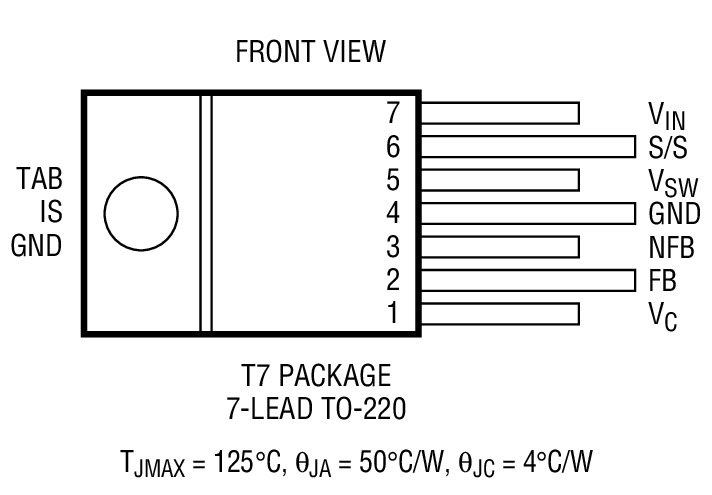

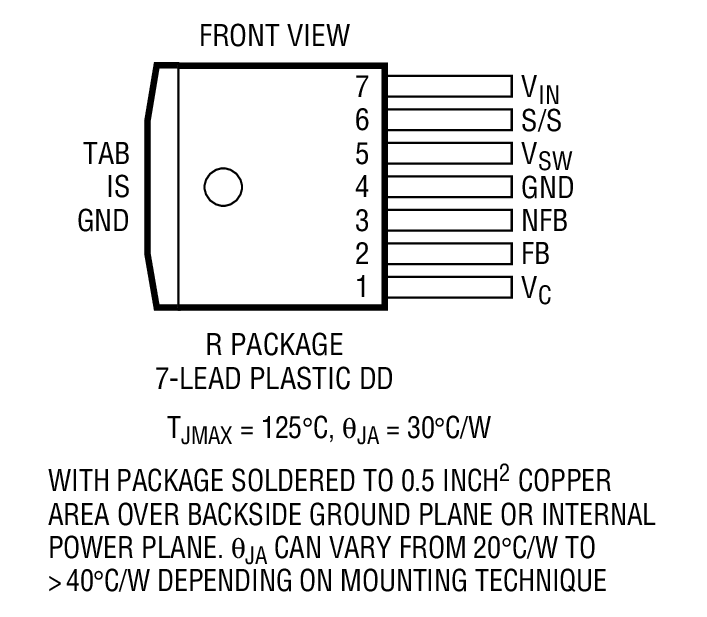

LT1371 - 封装图解：
LT1371 - LT1371是500kHz High Efficiency 3A Switching Regulator
LT1371是Linear公司的一款内部电源开关产品，LT1371是500kHz High Efficiency 3A Switching Regulator，本站介绍了LT1371的封装应用图解、特点和优点、功能等，并给出了与LT1371相关的凌力尔特元器件型号供参考。
LT1371 - 500kHz High Efficiency 3A Switching Regulator
LT1371 - 500kHz High Efficiency 3A Switching Regulator - Linear Technology（凌力尔特）
功能描述
The LT?1371 is a monolithic high frequency current mode switching regulator. It can be operated in all standard switching configurations including boost, buck, flyback, forward, inverting and “Cuk”. A 3A high efficiency switch is included on the die, along with all oscillator, control and protection circuitry.The LT1371 typically consumes only 4mA quiescent current and has higher efficiency than previous parts. High frequency switching allows for very small inductors to be used.New design techniques increase flexibility and maintain ease of use. Switching is easily synchronized to an external logic level source. A logic low on the Shutdown pin reduces supply current to 12μA. Unique error amplifier circuitry can regulate positive or negative output voltage while maintaining simple frequency compensation techniques. Nonlinear error amplifier transconductance reduces output overshoot on start-up or overload recovery. Oscillator frequency shifting protects external components during overload conditions.特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1371CR | DDPAK-7 | C | $6.40 | $5.15 |
| LT1371CR#PBF | DDPAK-7 | C | $6.40 | $5.15 |
| LT1371CR#TR | DDPAK-7 | C | $5.27 | |
| LT1371CR#TRPBF | DDPAK-7 | C | $5.27 | |
| LT1371CSW | SW-20 | C | $7.10 | $5.65 |
| LT1371CSW#PBF | SW-20 | C | $7.10 | $5.65 |
| LT1371CSW#TR | SW-20 | C | $5.75 | |
| LT1371CSW#TRPBF | SW-20 | C | $5.75 | |
| LT1371CT7 | TO-220 | C | $6.40 | $5.15 |
| LT1371CT7#PBF | TO-220 | C | $6.40 | $5.15 |
| LT1371HVCR | DDPAK-7 | C | $6.85 | $5.45 |
| LT1371HVCR#PBF | DDPAK-7 | C | $6.85 | $5.45 |
| LT1371HVCR#TR | DDPAK-7 | C | $5.57 | |
| LT1371HVCR#TRPBF | DDPAK-7 | C | $5.57 | |
| LT1371HVCSW | SW-20 | C | $7.50 | $6.00 |
| LT1371HVCSW#PBF | SW-20 | C | $7.50 | $6.00 |
| LT1371HVCSW#TR | SW-20 | C | $6.10 | |
| LT1371HVCSW#TRPBF | SW-20 | C | $6.10 | |
| LT1371HVCT7 | TO-220 | C | $6.85 | $5.45 |
| LT1371HVCT7#PBF | TO-220 | C | $6.85 | $5.45 |
| LT1371HVIR | DDPAK-7 | I | $8.10 | $6.45 |
| LT1371HVIR#PBF | DDPAK-7 | I | $8.10 | $6.45 |
| LT1371HVIR#TR | DDPAK-7 | I | $6.57 | |
| LT1371HVIR#TRPBF | DDPAK-7 | I | $6.57 | |
| LT1371HVISW | SW-20 | I | $8.75 | $7.00 |
| LT1371HVISW#PBF | SW-20 | I | $8.75 | $7.00 |
| LT1371HVISW#TR | SW-20 | I | $7.10 | |
| LT1371HVISW#TRPBF | SW-20 | I | $7.10 | |
| LT1371HVIT7 | TO-220 | I | $8.10 | $6.45 |
| LT1371HVIT7#PBF | TO-220 | I | $8.10 | $6.45 |
| LT1371IR | DDPAK-7 | I | $7.60 | $6.15 |
| LT1371IR#PBF | DDPAK-7 | I | $7.60 | $6.15 |
| LT1371IR#TR | DDPAK-7 | I | $6.27 | |
| LT1371IR#TRPBF | DDPAK-7 | I | $6.27 | |
| LT1371ISW | SW-20 | I | $8.35 | $6.65 |
| LT1371ISW#PBF | SW-20 | I | $8.35 | $6.65 |
| LT1371ISW#TR | SW-20 | I | $6.75 | |
| LT1371ISW#TRPBF | SW-20 | I | $6.75 | |
| LT1371IT7 | TO-220 | I | $7.60 | $6.15 |
| LT1371IT7#PBF | TO-220 | I | $7.60 | $6.15 |
