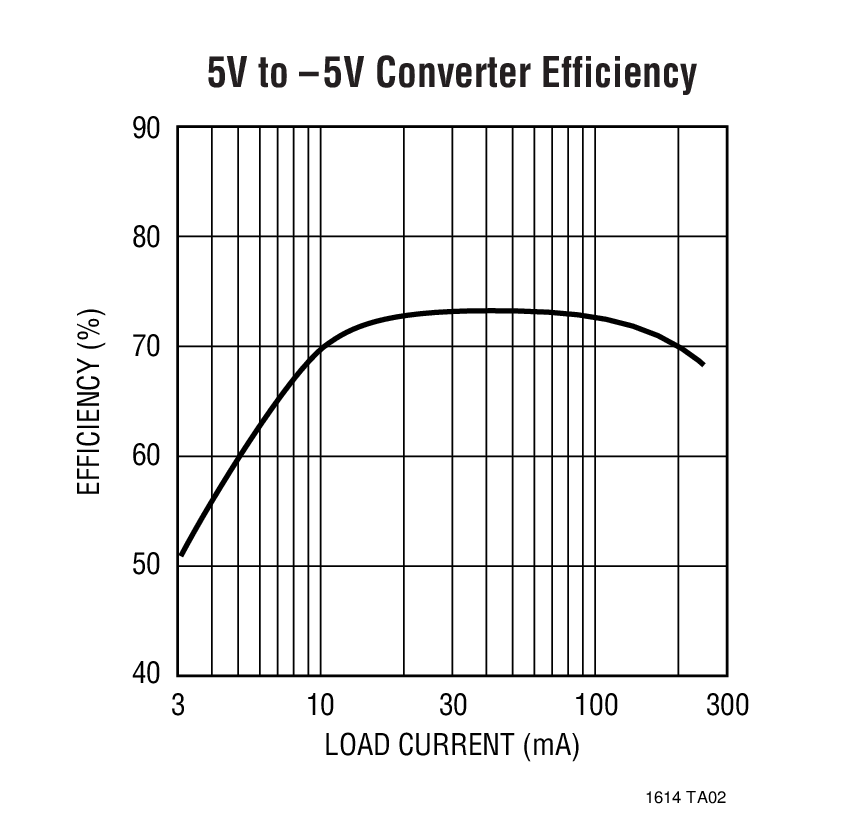

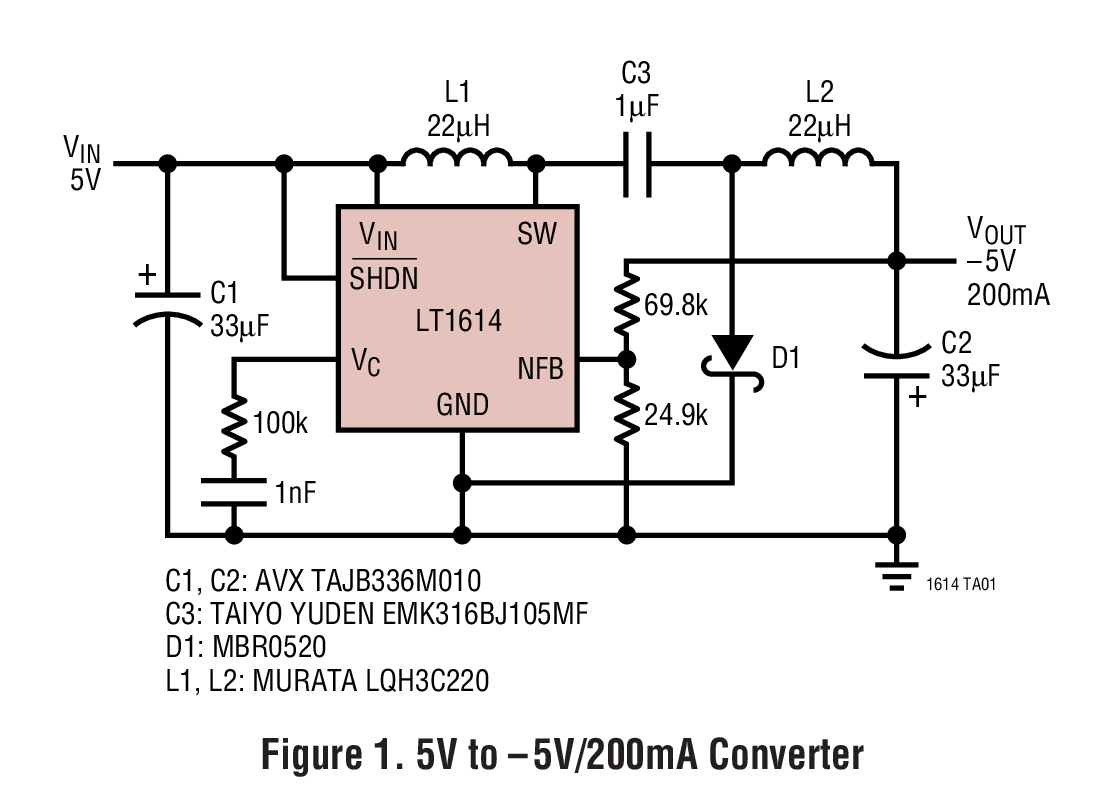

LT1614 - 典型应用图例：

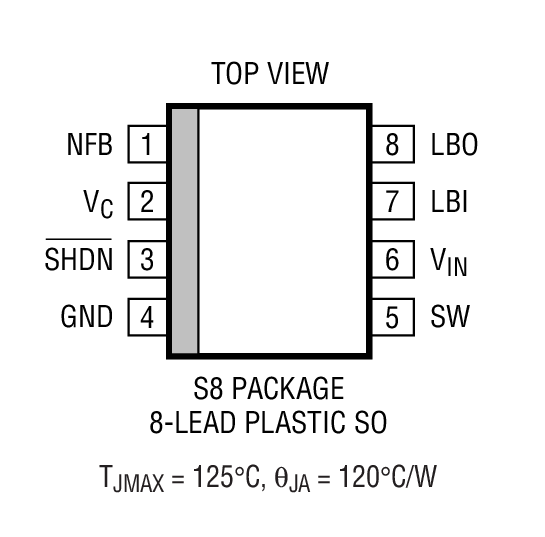

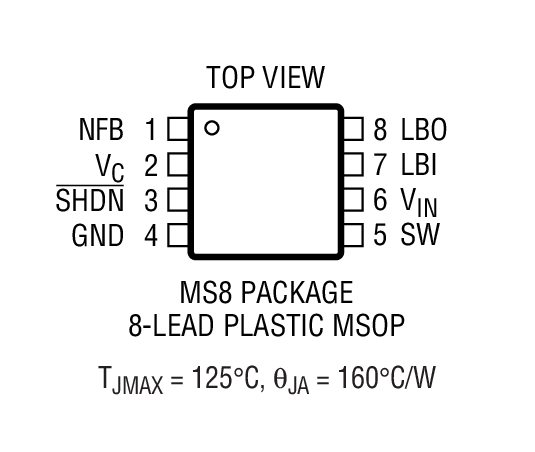

LT1614 - 封装图解：

LT1614 - LT1614是Inverting 600kHz Switching Regulator

LT1614是Linear公司的一款负输出稳压器产品，LT1614是Inverting 600kHz Switching Regulator，本站介绍了LT1614的封装应用图解、特点和优点、功能等，并给出了与LT1614相关的凌力尔特元器件型号供参考。

LT1614 - Inverting 600kHz Switching Regulator

LT1614 - Inverting 600kHz Switching Regulator - Linear Technology（凌力尔特）

功能描述

The LT?1614 is a fixed frequency, inverting mode switching reglator that operates from an input voltage as low as 1V. Utilizing a low noise topology, the LT1614 can generate a negative output down to ?24V from a 1V to 5V input. Fixed frequency switching ensures a clean output free from low frequency noise. The device contains a low-battery detector with a 200mV reference and shuts down to less than 10μA. No load quiescent current of the LT1614 is 1mA and the internal NPN power switch handles a 500mA current with a voltage drop of just 295mV.High frequency switching enables the use of small inductors and capacitors. Ceramic capacitors can be used in many applications, eliminating the need for bulky tantalum types.The LT1614 is available in 8-lead MSOP or SO packages.

特点

Better Regulation Than a Charge Pump

0.1 Ohm Effective Output Impedance

±5V at 200mA from a 5V Input

600kHz Fixed Frequency Operation

Operates with VIN as Low as 1V

1mA Quiescent Current

Low Shutdown Current: 10µA

Low-Battery Detector

Low VCESAT Switch: 295mV at 500mA

应用

MR Head Bias

LCD Bias

GaAs FET Bias

Positive-to-Negative Conversion

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1614CMS8	MS-8	C	$3.10	$2.65
LT1614CMS8#PBF	MS-8	C	$3.10	$2.65
LT1614CMS8#TR	MS-8	C		$2.71
LT1614CMS8#TRPBF	MS-8	C		$2.71
LT1614CS8	SO-8	C	$2.85	$2.40
LT1614CS8#PBF	SO-8	C	$2.85	$2.40
LT1614CS8#TR	SO-8	C		$2.46
LT1614CS8#TRPBF	SO-8	C		$2.46
LT1614IMS8	MS-8	I	$3.55	$3.00
LT1614IMS8#PBF	MS-8	I	$3.55	$3.00
LT1614IMS8#TR	MS-8	I		$3.06
LT1614IMS8#TRPBF	MS-8	I		$3.06
LT1614IS8	SO-8	I	$3.45	$2.90
LT1614IS8#PBF	SO-8	I	$3.45	$2.90
LT1614IS8#TR	SO-8	I		$2.96
LT1614IS8#TRPBF	SO-8	I		$2.96
