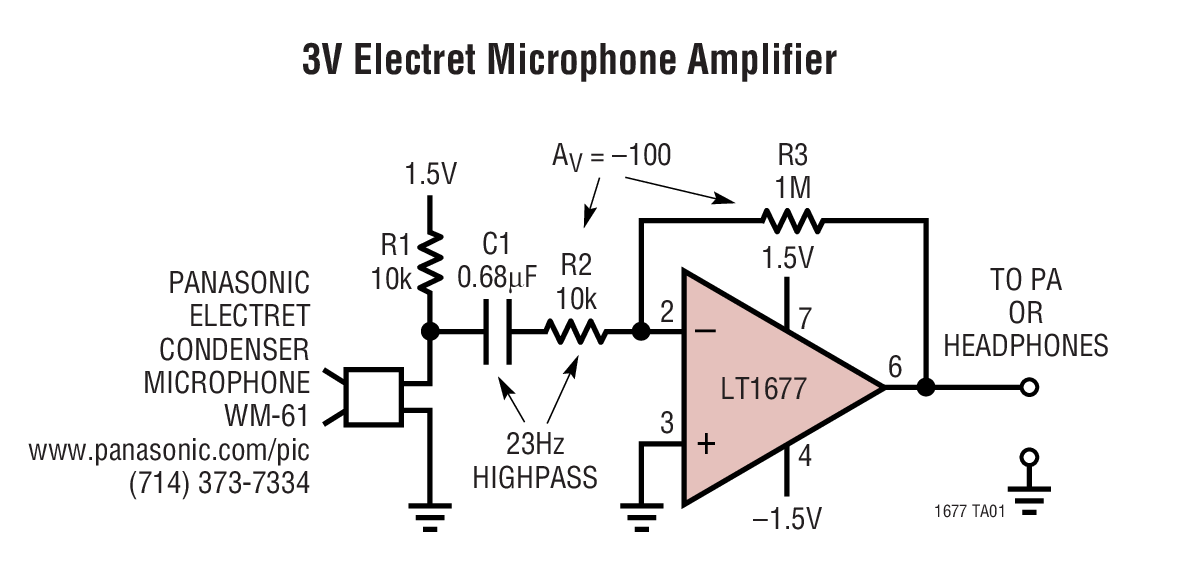

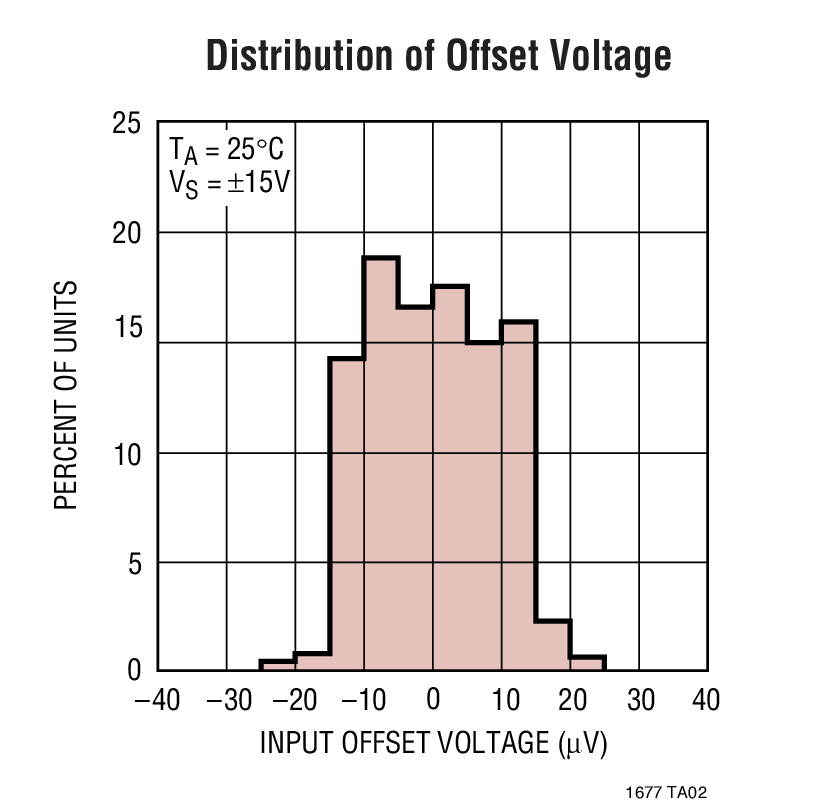

LT1677 - 典型应用图例：

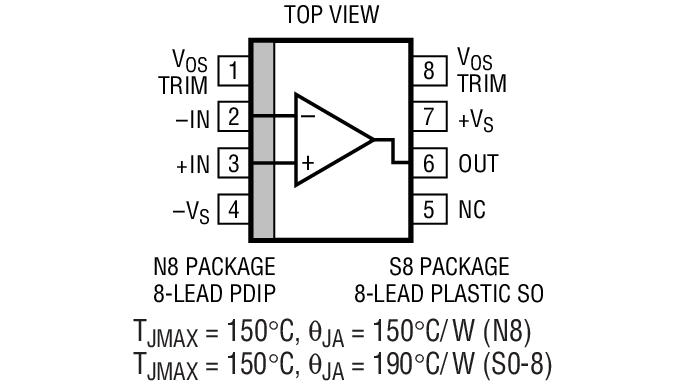

LT1677 - 封装图解：

LT1677 - LT1677是Low Noise, Rail-to-Rail Precision Op Amp

LT1677是Linear公司的一款精准放大器产品，LT1677是Low Noise, Rail-to-Rail Precision Op Amp，本站介绍了LT1677的封装应用图解、特点和优点、功能等，并给出了与LT1677相关的凌力尔特元器件型号供参考。

LT1677 - Low Noise, Rail-to-Rail Precision Op Amp

LT1677 - Low Noise, Rail-to-Rail Precision Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1677 features the lowest noise performance available for a rail-to-rail operational amplifier: 3.2nV/rtHz wideband noise, 1/f corner frequency of 13Hz and 90nV peak-to-peak 0.1Hz to 10Hz noise. Low noise is combined with outstanding precision: 20μV offset voltage and 0.2μV/°C drift, 130dB common mode and power supply rejection and 7.2MHz gain bandwidth product. The common mode range exceeds the power supply by 100mV.

The voltage gain of the LT1677 is extremely high, 19 million (typical) driving a 10k load.

In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently, the specifications have been spectacularly improved compared to competing rail-to-rail amplifiers.

特点

Rail-to-Rail Input and Output

100% Tested Low Voltage Noise:3.2nV/rtHz Typ at 1kHz4.5nV/rtHz Max at 1kHz

Offset Voltage: 60μV Max

Low VOS Drift: 0.2μV/°C Typ

Low Input Bias Current: 20nA Max

Wide Supply Range: 3V to ±18V

High AVOL: 7V/μV Min, RL = 10k

High CMRR: 109dB Min

High PSRR: 108dB Min

Gain Bandwidth Product: 7.2MHz

Slew Rate: 2.5V/μs

Operating Temperature Range: -40°C to 85°C

应用

Low Noise Signal Processing

Microvolt Accuracy Threshold Detection

Strain Gauge Amplifiers

Tape Head Preamplifiers

Direct Coupled Audio Gain Stages

Infrared Detectors

Battery-Powered Microphones
