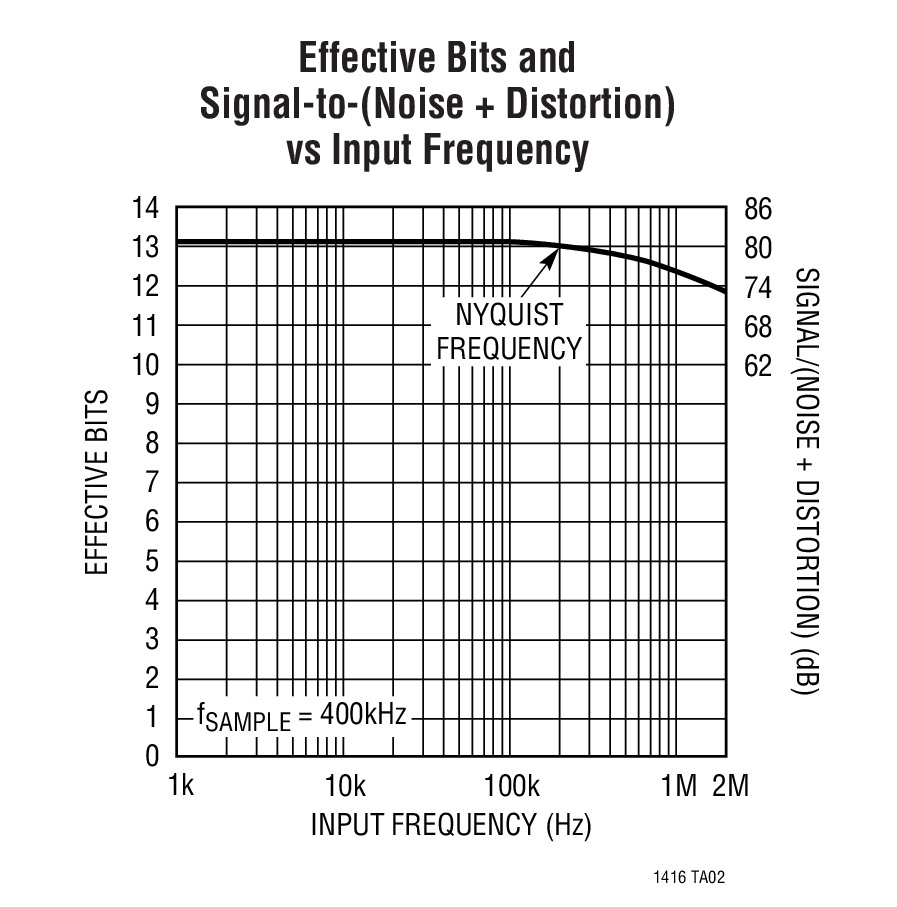

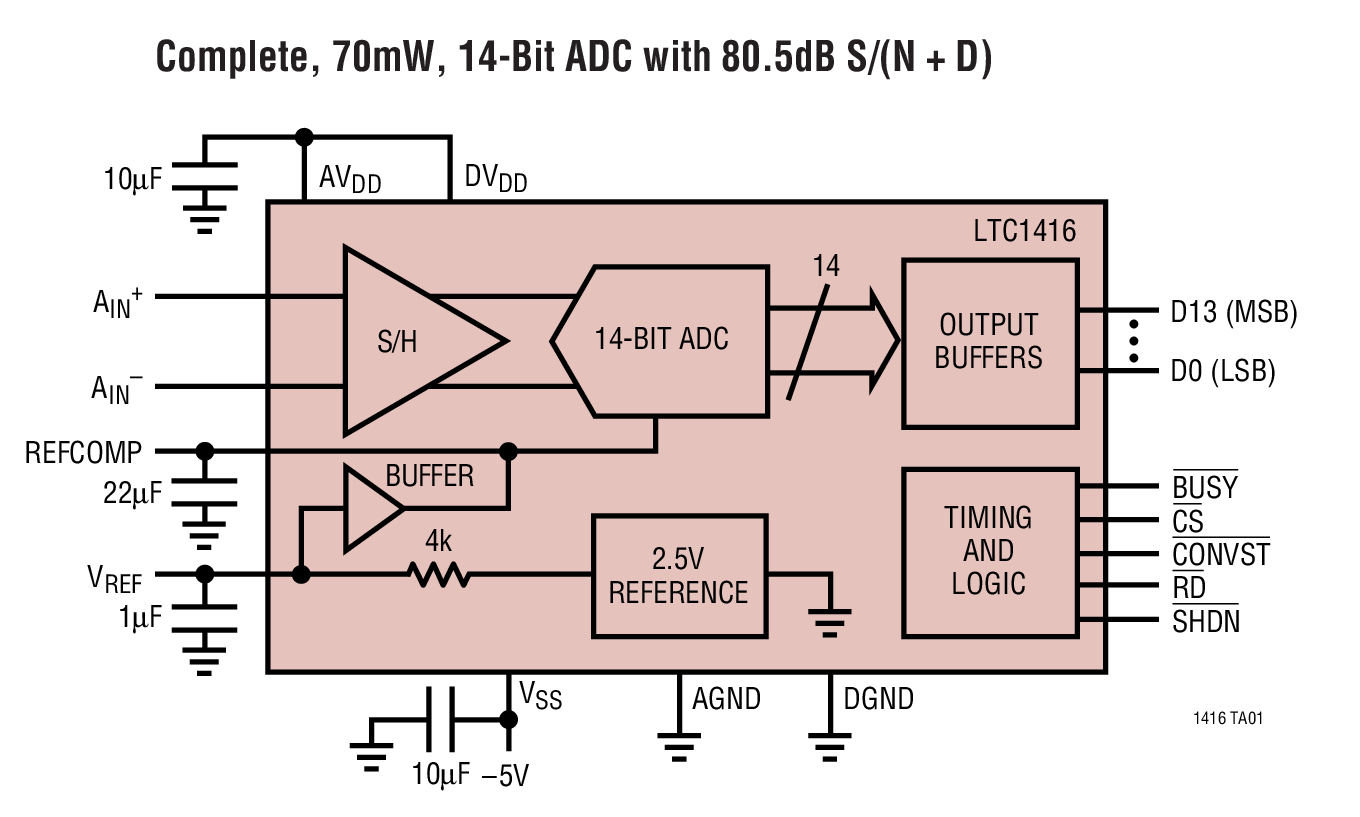

LTC1416 - 典型应用图例：

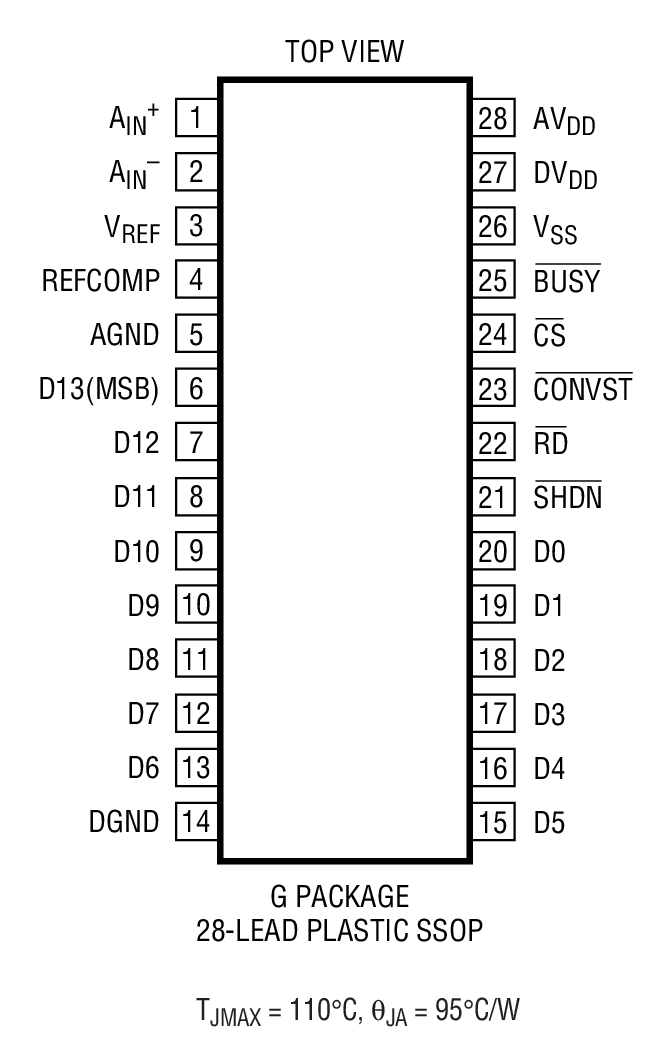

LTC1416 - 封装图解：

LTC1416 - LTC1416是Low Power 14-Bit, 400ksps Sampling ADC

LTC1416是Linear公司的一款通用型 SAR ADC产品，LTC1416是Low Power 14-Bit, 400ksps Sampling ADC，本站介绍了LTC1416的封装应用图解、特点和优点、功能等，并给出了与LTC1416相关的凌力尔特元器件型号供参考。

LTC1416 - Low Power 14-Bit, 400ksps Sampling ADC

LTC1416 - Low Power 14-Bit, 400ksps Sampling ADC - Linear Technology（凌力尔特）

功能描述

The LTC1416 is a 2.2µs, 400ksps, 14-bit sampling A/D converter that draws only 70mW from ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a precision reference. Two digitally selectable power shutdown modes provide flexibility for low power systems. The LTC1416’s full-scale input range is ±2.5V. Maximum DC specifications include ±2LSB INL, ±1.5LSB DNL over temperature. Outstanding AC performance includes 80.5dB S/(N + D) and 93dB THD with a 100kHz input, and 80dB S/(N + D) and 90dB THD at the Nyquist input frequency of 200kHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. The ADC has a µP compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

特点

Sample Rate: 400ksps

Power Dissipation: 70mW

Guaranteed ±1.5LSB DNL, ±2LSB INL (Max)

80.5dB S/(N + D) and 93dB THD at 100kHz

80dB S/(N + D) and 90dB THD at Nyquist

Nap and Sleep Shutdown Modes

Operates with Internal or External Reference

True Differential Inputs Reject Common Mode Noise

15MHz Full Power Bandwidth Sampling

±2.5V Bipolar Input Range

28-Pin SSOP Package

应用

Telecommunications

Digital Signal Processing

Multiplexed Data Acquisition Systems

High Speed Data Acquisition

Spectrum Analysis

Imaging Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1416CG	SSOP-28	C	$8.10	$6.90
LTC1416CG#PBF	SSOP-28	C	$8.10	$6.90
LTC1416CG#TR	SSOP-28	C		$7.00
LTC1416CG#TRPBF	SSOP-28	C		$7.00
LTC1416IG	SSOP-28	I	$8.65	$7.40
LTC1416IG#PBF	SSOP-28	I	$8.65	$7.40
LTC1416IG#TR	SSOP-28	I		$7.50
LTC1416IG#TRPBF	SSOP-28	I		$7.50
