LTC1454是Dual 12-Bit Rail-to-Rail Micropower DACs

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1454

LTC1454技术文档下载：

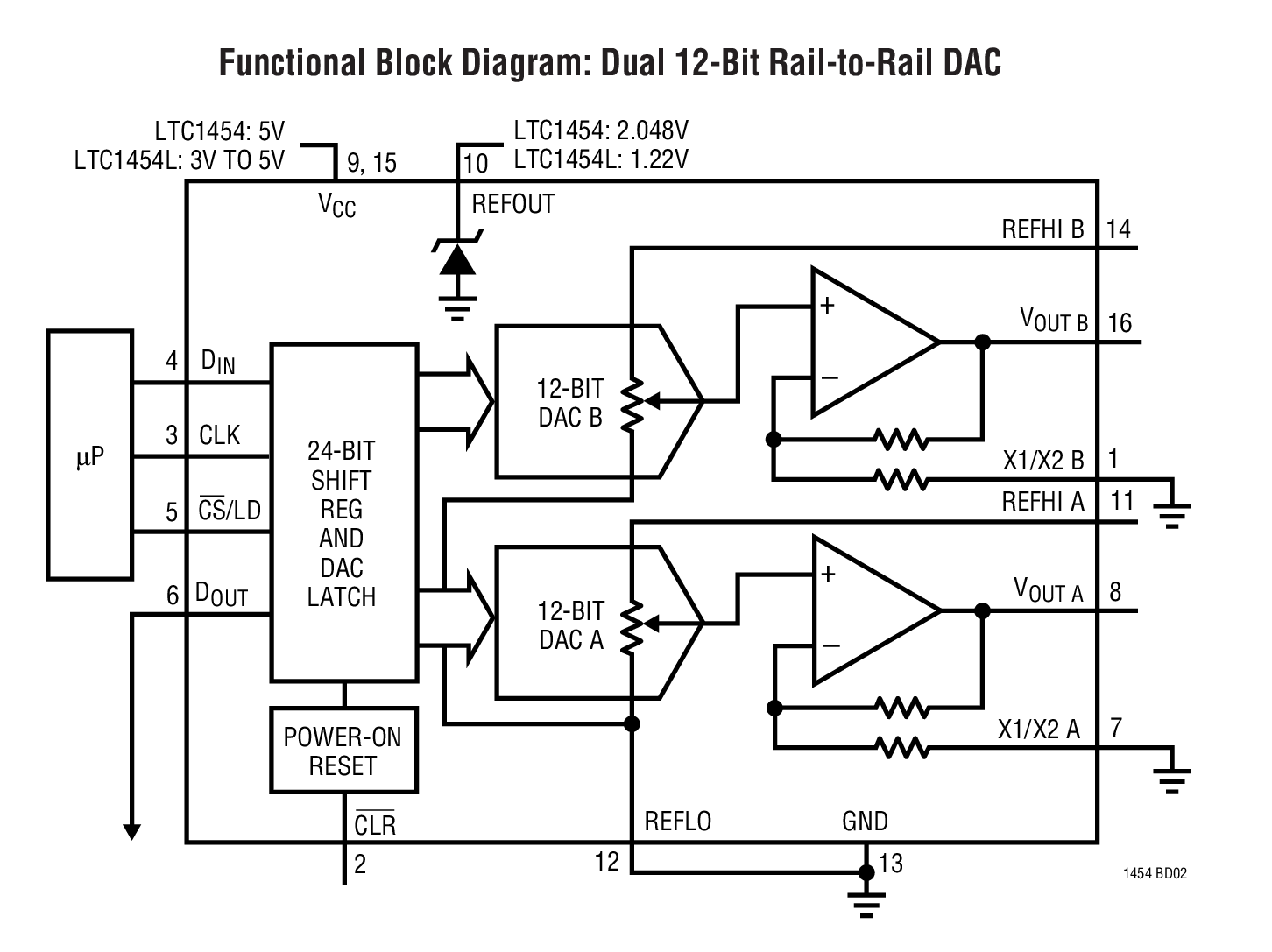

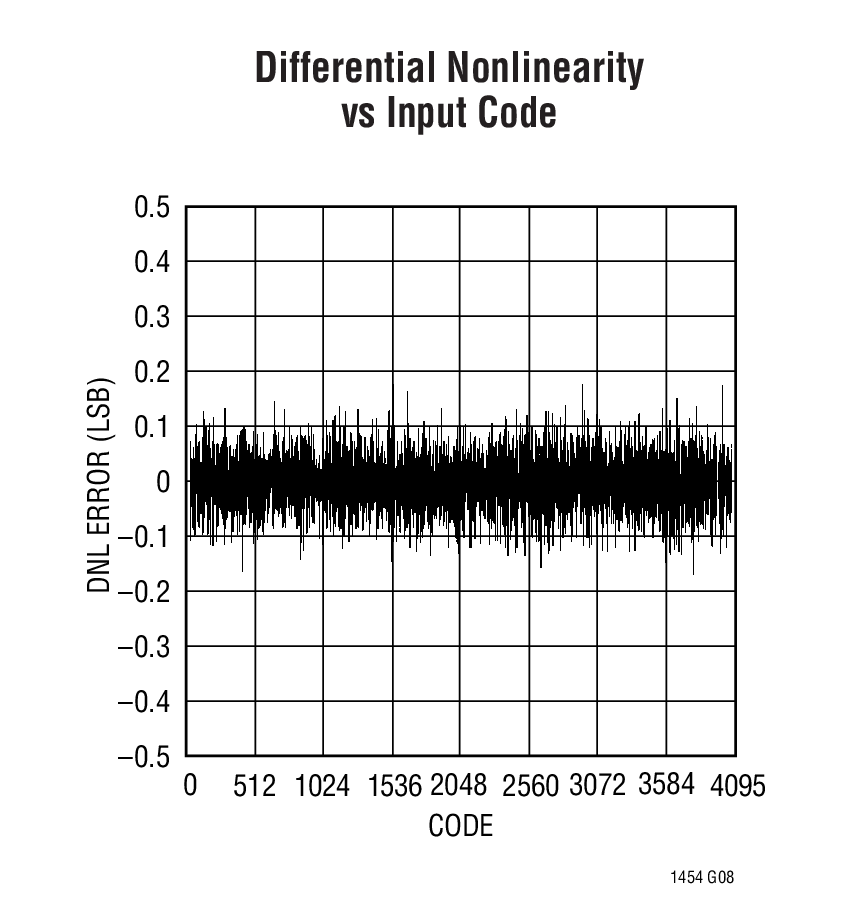

LTC1454 - 典型应用图例：

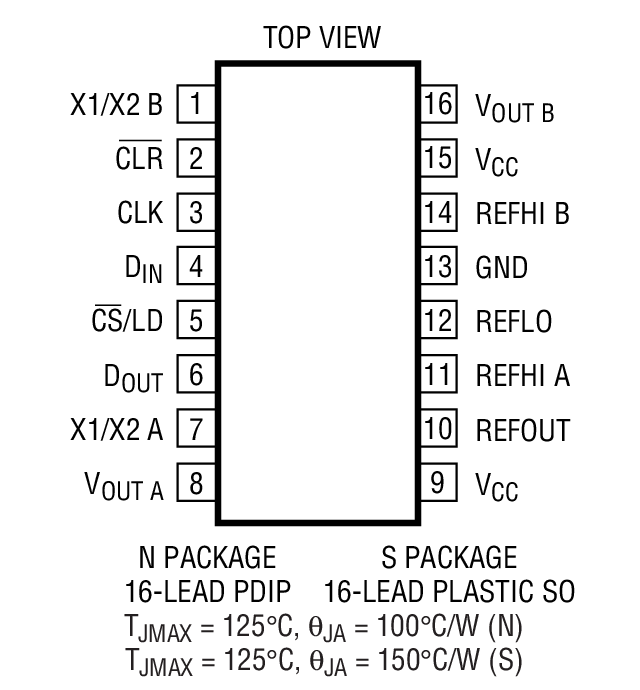

LTC1454 - 封装图解：

LTC1454 - LTC1454是Dual 12-Bit Rail-to-Rail Micropower DACs

LTC1454是Linear公司的一款电压输出 DAC产品，LTC1454是Dual 12-Bit Rail-to-Rail Micropower DACs，本站介绍了LTC1454的封装应用图解、特点和优点、功能等，并给出了与LTC1454相关的凌力尔特元器件型号供参考。

LTC1454 - Dual 12-Bit Rail-to-Rail Micropower DACs

LTC1454 - Dual 12-Bit Rail-to-Rail Micropower DACs - Linear Technology（凌力尔特）

功能描述

The LTC?1454/LTC1454L are complete single supply, dual rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 16-lead SO package. They include an output buffer amplifier with variable gain (x1 or x2) and an easy-to-use 3-wire cascadable serial interface.The LTC1454 has an onboard reference of 2.048V and a full-scale output of 4.095V in a x2 gain configuration. It operates from a single 4.5V to 5.5V supply.The LTC1454L has an onboard 1.22V reference and a full-scale output of 2.5V in a x2 gain configuration. It operates from a single 2.7V to 5.5V supply.Low power supply current, excellent DNL and small size allow these parts to be used in a host of applications where size, DNL and single supply operation are important.

特点

12-Bit Resolution

Buffered True Rail-to-Rail Voltage Output

5V Operation, ICC: 700µA Typ (LTC1454)

3V Operation, ICC: 450µA Typ (LTC1454L)

Built-In Reference: 2.048V (LTC1454)

1.220V (LTC1454L)

CLR Pin

Power-On Reset

16-Lead SO Package

3-Wire Cascadable Serial Interface

Maximum DNL Error: 0.5LSB

Low Cost

应用

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones
