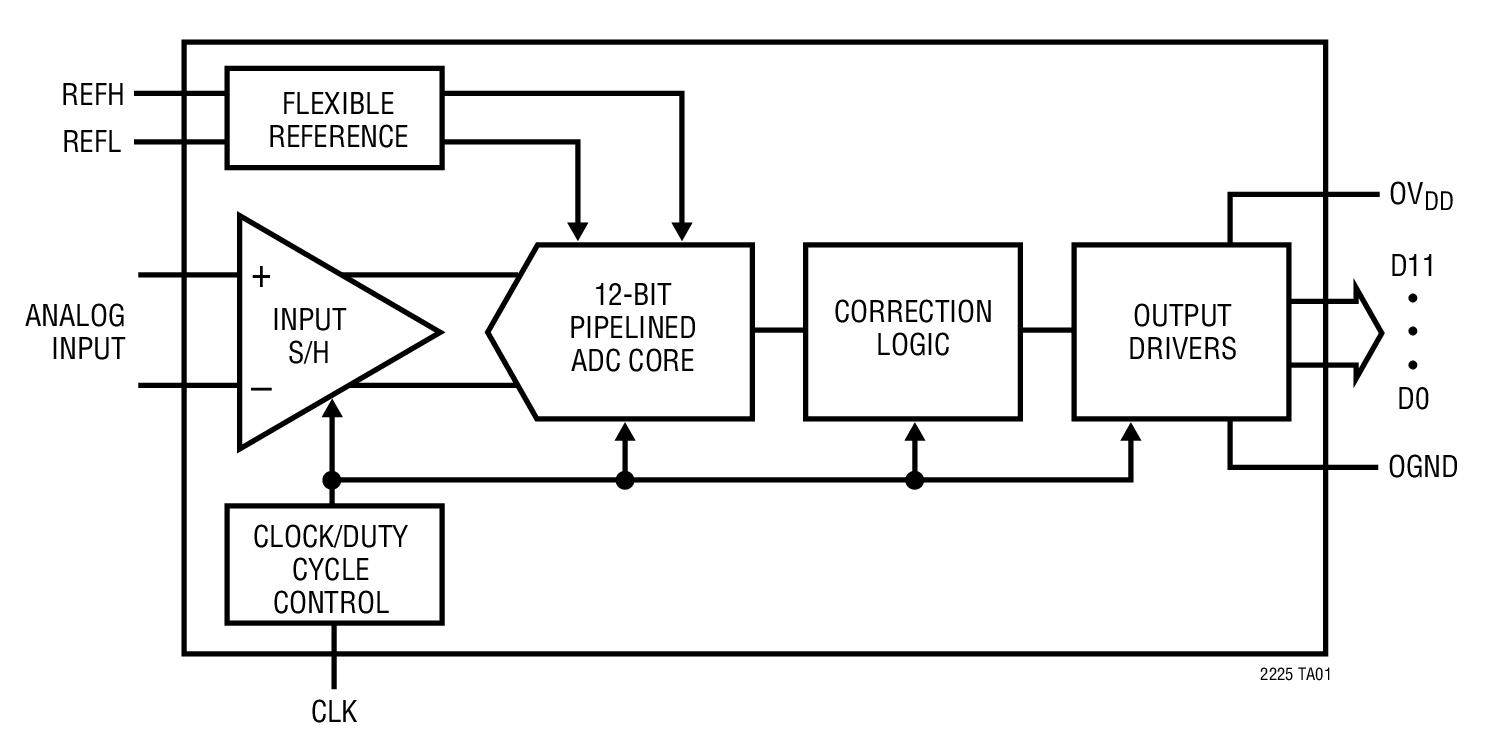

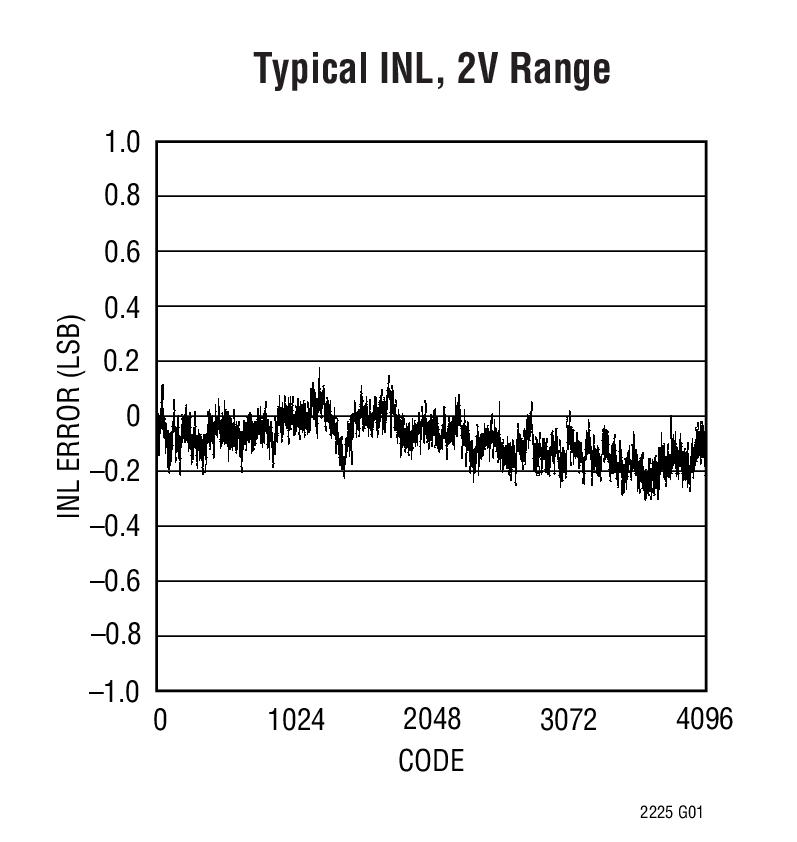

LTC2225 - 典型应用图例：

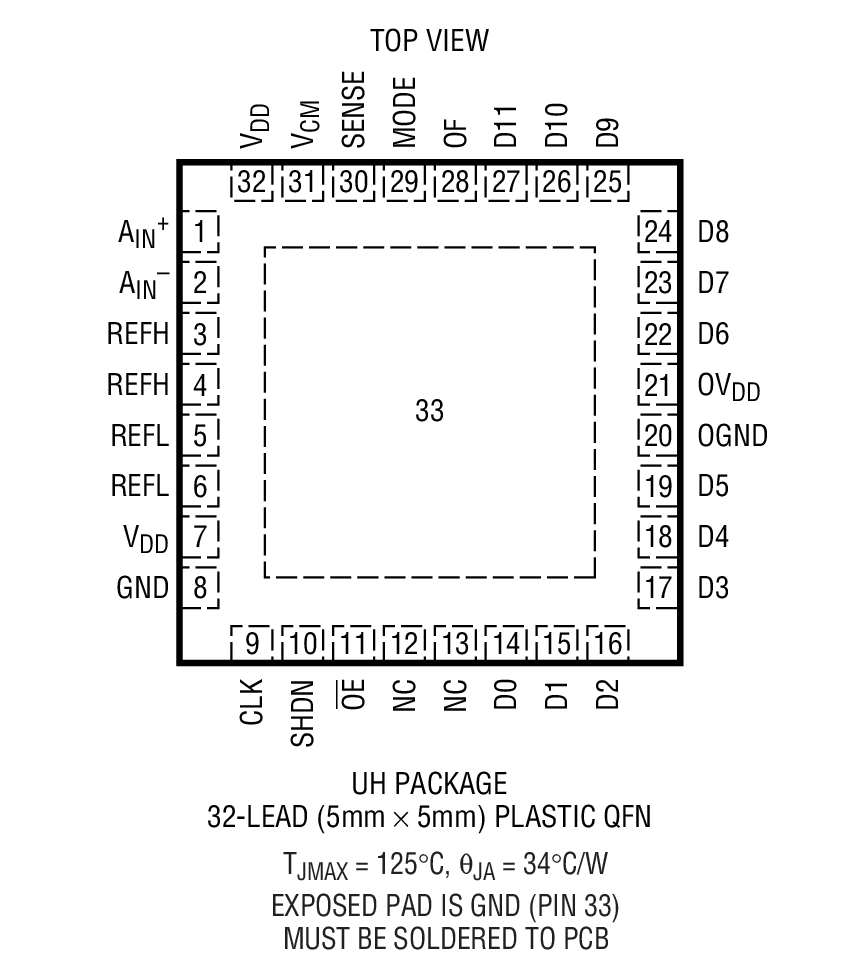

LTC2225 - 封装图解：

LTC2225 - LTC2225是12-Bit, 10Msps Low Power 3V ADC

LTC2225是Linear公司的一款高速 ADC产品，LTC2225是12-Bit, 10Msps Low Power 3V ADC，本站介绍了LTC2225的封装应用图解、特点和优点、功能等，并给出了与LTC2225相关的凌力尔特元器件型号供参考。

LTC2225 - 12-Bit, 10Msps Low Power 3V ADC

LTC2225 - 12-Bit, 10Msps Low Power 3V ADC - Linear Technology（凌力尔特）

功能描述

The LTC2225 is a 12-bit 10Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2225 is perfect for demanding imaging and communications applications with AC performance that includes 71.3dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点

Sample Rate: 10Msps

Single 3V Supply (2.7V to 3.4V)

Low Power: 60mW

71.3dB SNR

90dB SFDR

No missing codes

Flexible Input: 1VP-P to 2VP-P Range

575MHz Full Power Bandwidth S/H

Clock Duty Cycle Stabilizer

Shutdown and Nap Modes

Pin Compatible Family125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)

32-Pin (5mm × 5mm) QFN Package

应用

Wireless and Wired Broadband Communication

Imaging Systems

Spectral Analysis

Portable Instrumentation

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2225CUH	5x5 QFN-32	C	$6.17	$4.57
LTC2225CUH#PBF	5x5 QFN-32	C	$6.17	$4.57
LTC2225CUH#TR	5x5 QFN-32	C		$4.67
LTC2225CUH#TRPBF	5x5 QFN-32	C		$4.67
LTC2225IUH	5x5 QFN-32	I	$7.40	$5.48
LTC2225IUH#PBF	5x5 QFN-32	I	$7.40	$5.48
LTC2225IUH#TR	5x5 QFN-32	I		$5.58
LTC2225IUH#TRPBF	5x5 QFN-32	I		$5.58
