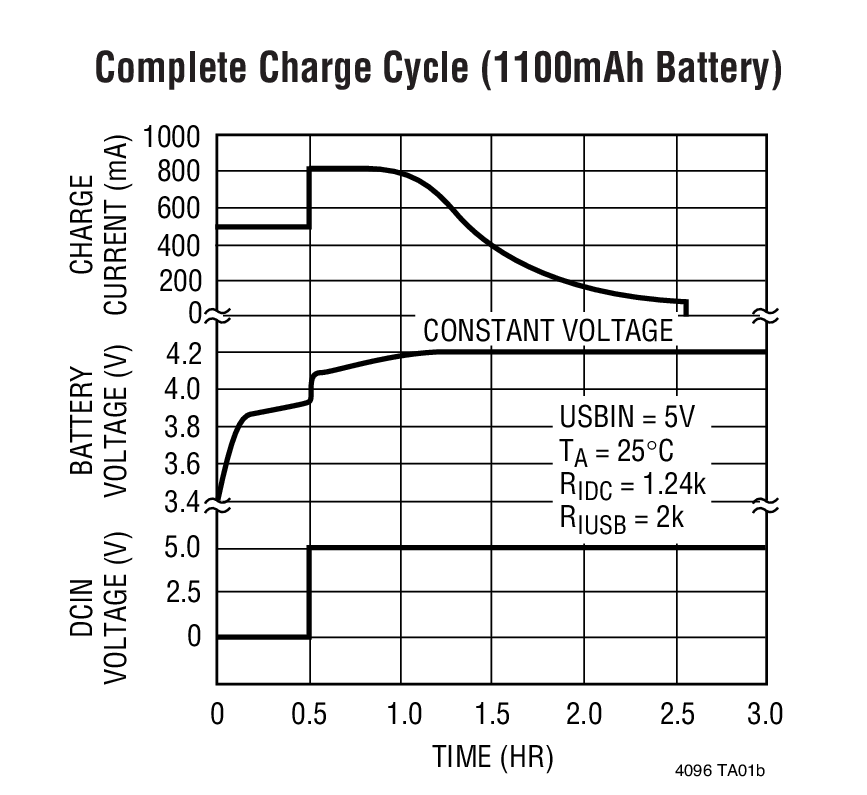

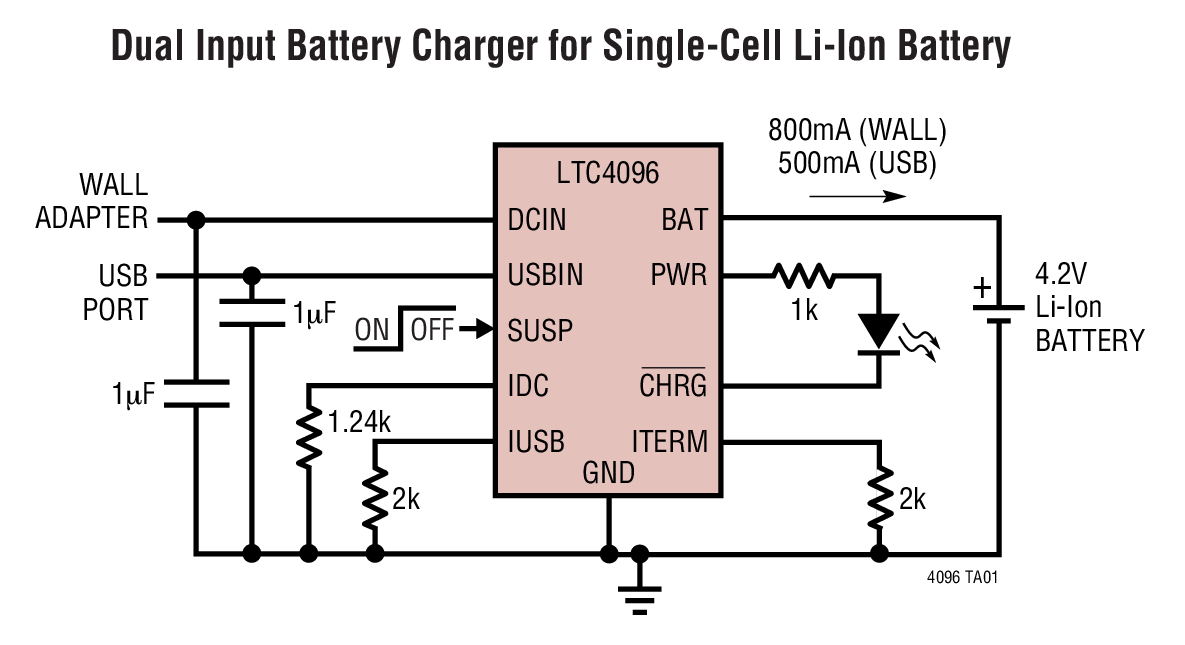

LTC4096 - 典型应用图例：

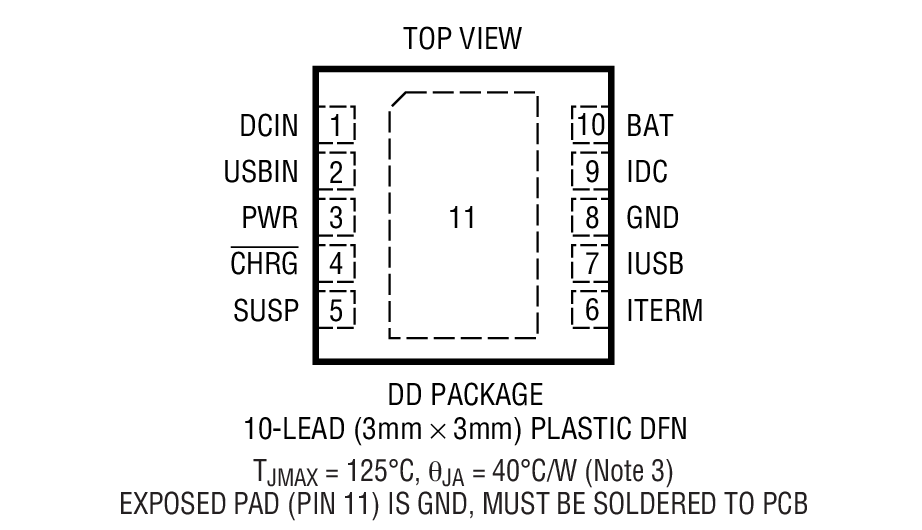

LTC4096 - 封装图解：

LTC4096 - LTC4096是Dual Input Standalone Li-Ion Battery Chargers

LTC4096是Linear公司的一款线性充电器产品，LTC4096是Dual Input Standalone Li-Ion Battery Chargers，本站介绍了LTC4096的封装应用图解、特点和优点、功能等，并给出了与LTC4096相关的凌力尔特元器件型号供参考。

LTC4096 - Dual Input Standalone Li-Ion Battery Chargers

LTC4096/LTC4096X - Dual Input Standalone Li-Ion Battery Chargers - Linear Technology（凌力尔特）

功能描述

The LTC4096/LTC4096X are standalone linear chargers that are capable of charging a single-cell Li-Ion or Li-Polymer battery from both wall adapter and USB inputs. The chargers can detect power at the inputs and automatically select the appropriate power source for charging.

No external sense resistor or blocking diode is required for charging due to the internal MOSFET architecture. Internal thermal feedback regulates the battery charge current to maintain a constant die temperature during high power operation or high ambient temperature conditions. The float voltage is fixed at 4.2V and the charge current is programmed with an external resistor. The LTC4096 terminates the charge cycle when the charge current drops below the user programmed termination threshold after the final float voltage is reached. The LTC4096 can be put into shutdown mode reducing the DCIN supply current to 20µA, the USBIN supply current to 10µA, and the battery drain current to less than 2µA even with power applied to both inputs.

Other features include trickle charge (LTC4096 only), automatic recharge, undervoltage lockout, charge status output and power present output with 120mA drive capability.

特点

Charges Single-Cell Li-Ion Battery from Wall Adapter and USB Inputs

Automatic Input Detection (DC Input has Charging Priority)

Charge Current Programmable up to 1.2A from Wall Adapter Input

C/X Charge Current Termination

Input Power Present Output (PWR) with 120mA Drive Capability

Independent DC, USB Charge Current Programming

Preset Float Voltage with ±0.6% Accuracy

Thermal Regulation Maximizes Charge Rate Without Risk of Overheating

Charge Status Output

Automatic Recharge

20µA Charger Quiescent Current in Shutdown

Available in a Thermally Enhanced, Low Profile (0.75mm) 10-Lead (3mm × 3mm) DFN Package

应用

Cellular Telephones

MP3 Players

Portable Handheld Devices

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC4096EDD	3x3 DFN-10	E	$2.28	$1.50
LTC4096EDD#PBF	3x3 DFN-10	E	$2.28	$1.50
LTC4096EDD#TR	3x3 DFN-10	E		$1.56
LTC4096EDD#TRPBF	3x3 DFN-10	E		$1.56
LTC4096XEDD	3x3 DFN-10	E	$2.28	$1.50
LTC4096XEDD#PBF	3x3 DFN-10	E	$2.28	$1.50
LTC4096XEDD#TR	3x3 DFN-10	E		$1.56
LTC4096XEDD#TRPBF	3x3 DFN-10	E		$1.56
