MSK5917RH是Positive Adjustable Regulator

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> MSK5917RH

MSK5917RH技术文档下载：

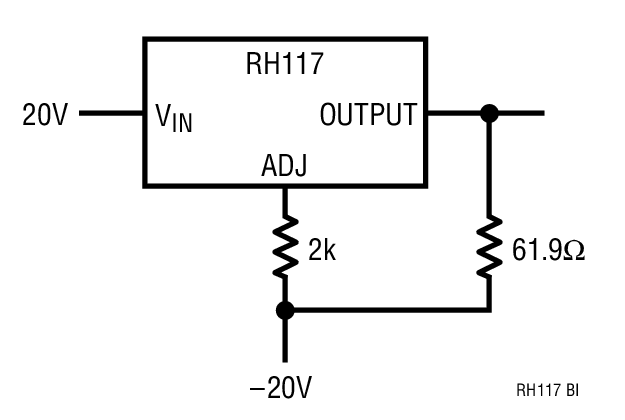

MSK5917RH - 典型应用图例：

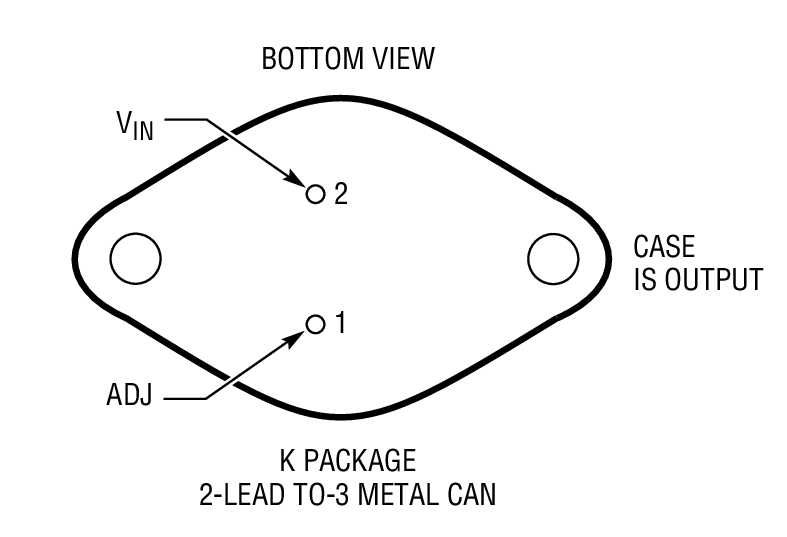

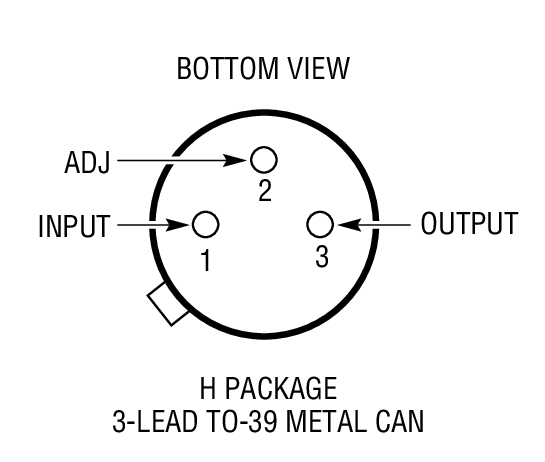

MSK5917RH - 封装图解：

MSK5917RH - MSK5917RH是Positive Adjustable Regulator

MSK5917RH是Linear公司的一款合乎航天使用要求的线性稳压器产品，MSK5917RH是Positive Adjustable Regulator，本站介绍了MSK5917RH的封装应用图解、特点和优点、功能等，并给出了与MSK5917RH相关的凌力尔特元器件型号供参考。

MSK5917RH - Positive Adjustable Regulator

RH117 - Positive Adjustable Regulator - Linear Technology（凌力尔特）

功能描述

The RH117 is a 3-terminal positive adjustable regulator capable of supplying up to 0.5A (H package) or 1.5A (K package). The output is adjusted using two external resistors for a range of 1.2V to 37V. The devices have full current limit thermal overload safe area protection, all of which remain functional even if the adjustment terminal is disconnected.

The wafer lots are processed to LTC?s in-house Class S flow to yield circuits usable in stringent military applications. In addition to 883 processing, the RH117 is subjected to 100% burn-in in thermal limit.

特点

ABSOLUTE MAXIMUM RATINGS

Power Dissipation...... Internally Limited

Input-to-Output Voltage Differential........ 40V

Operating JunctionTemperature Range ?55°C to 150°C

Storage Temperature Range ?65°C to 150°C

Lead Temperature (Soldering, 10 sec).......300°C

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
