LT1025 - Micropower Thermocouple Cold Junction Compensator
LT1025 - Micropower Thermocouple Cold Junction Compensator - Linear Technology（凌力尔特）

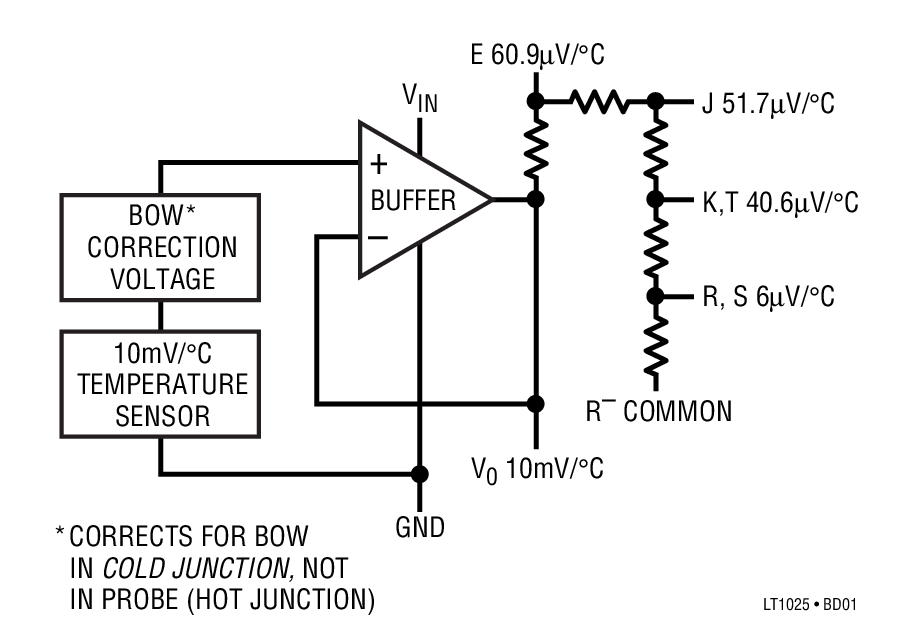

The LT?1025 is a micropower thermocouple cold junctioncompensator for use with type E, J, K, R, S, and Tthermocouples. It utilizes wafer level and post-packagetrimming to achieve 0.5°C initial accuracy. Special curvaturecorrection circuitry is used to match the ?bow? found in allthermocouples so that accurate cold junction compensationis maintained over a wider temperature range.
The LT1025 will operate with a supply voltage from 4V to 36V.Typical supply current is 80μA, resulting in less than 0.1°Cinternal temperature rise for supply voltages under 10V.A 10mV/°C output is available at low impedance, in additionto the direct thermocouple voltages of 60.9μV/°C (E),51.7μV/°C (J), 40.3μV/°C (K, T) and 5.95μV/°C (R, S). Alloutputs are essentially independent of power supply voltage.

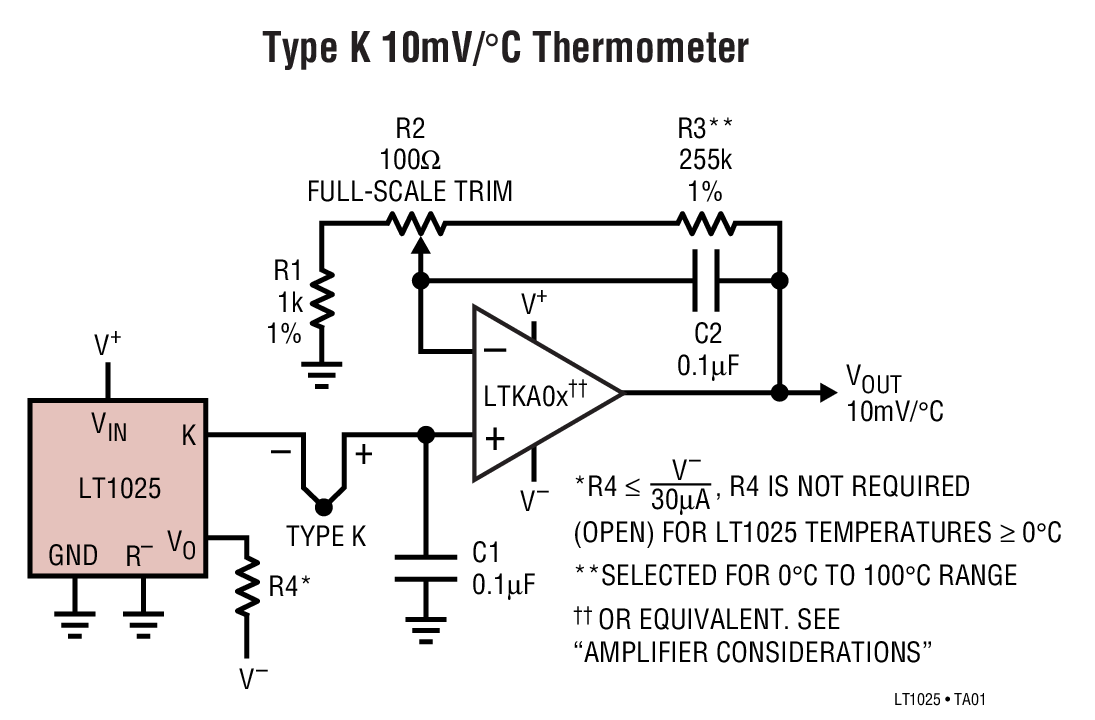

A special kit is available (LTK001) which contains an LT1025and a custom tailored thermocouple amplifier. The amplifierand compensator are matched to allow a much tighter specificationof temperature error than would be obtained by addingthe compensator and amplifier errors on a worst-case basis.The amplifier from this kit is available separately as LTKA0x.

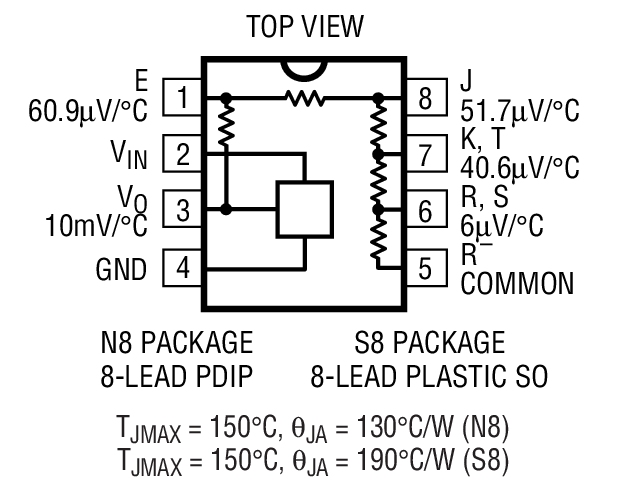

The LT1025 is available in either an 8-pin PDIP or 8-pin SOpackage for temperatures between 0°C and 70°C.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1025ACN8 | N-8 | C | $5.75 | $4.60 |
| LT1025ACN8#PBF | N-8 | C | $5.75 | $4.60 |
| LT1025CN8 | N-8 | C | $3.08 | $2.55 |
| LT1025CN8#PBF | N-8 | C | $3.08 | $2.55 |
| LT1025CS8 | SO-8 | C | $4.21 | $2.95 |
| LT1025CS8#PBF | SO-8 | C | $4.21 | $2.95 |
| LT1025CS8#TR | SO-8 | C | $3.01 | |
| LT1025CS8#TRPBF | SO-8 | C | $3.01 |
