当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1043
LTC1043技术文档下载：
LTC1043技术文档产品手册下载
LTC1043 - 典型应用图例：

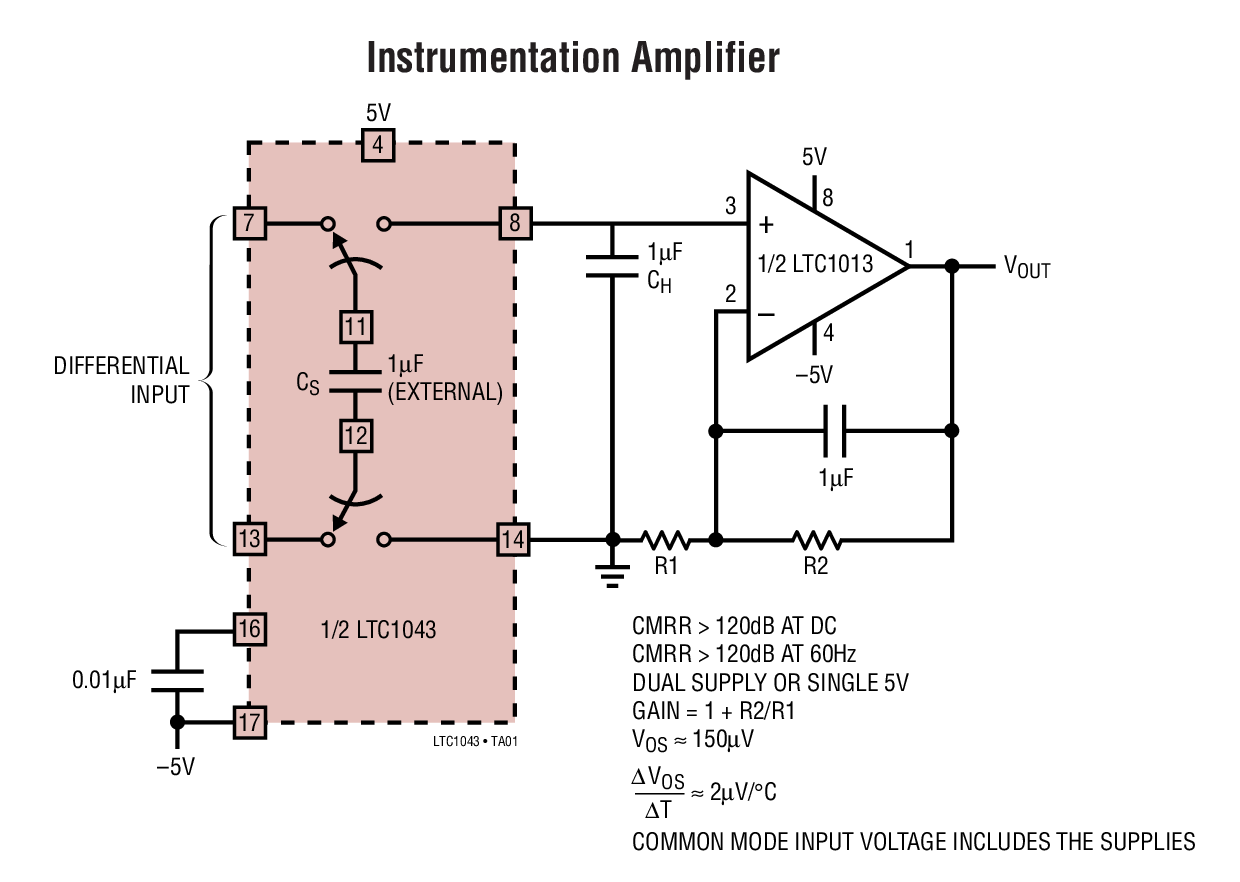

LTC1043典型应用图例一

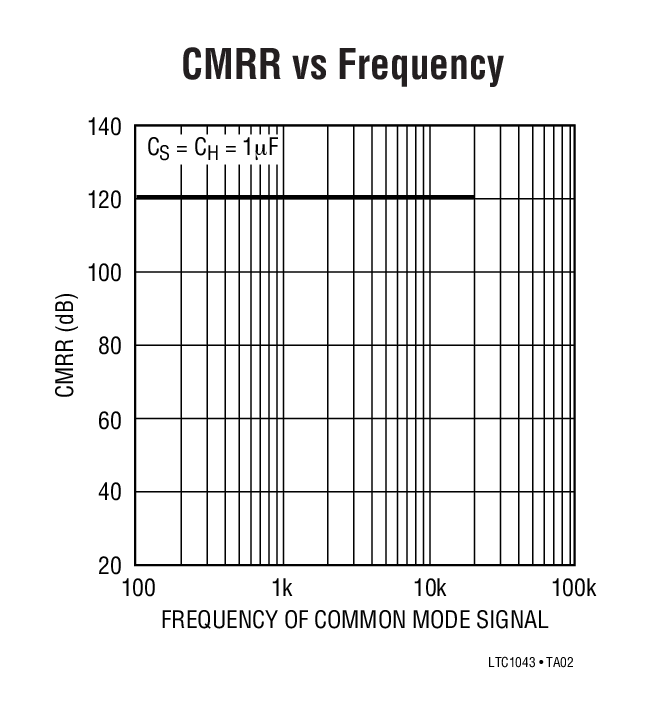

LTC1043典型应用图例二
LTC1043 - 封装图解：

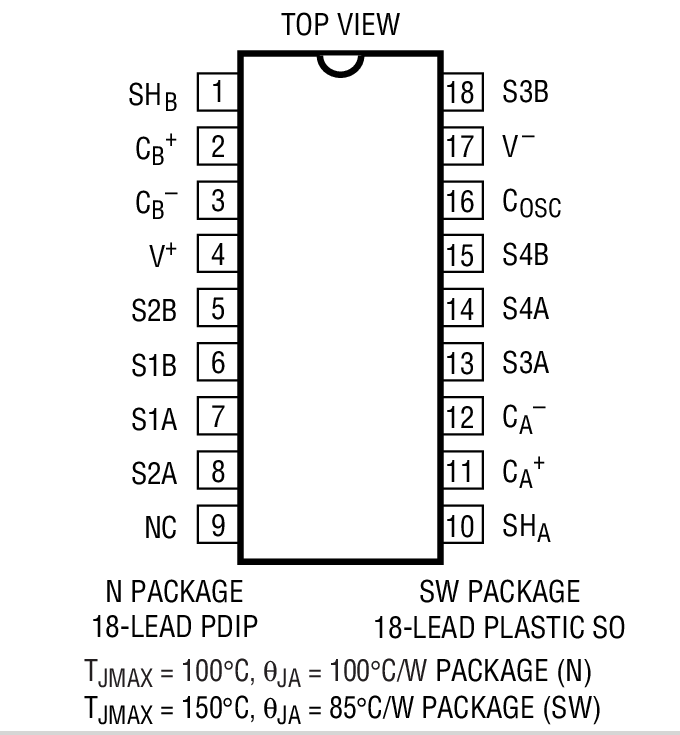

LTC1043封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1043介绍

LTC1043 - LTC1043是Dual Precision Instrumentation Switched-Capacitor Building Block

LTC1043是LINEAR凌力尔特公司的一款开关电容构件产品，LTC1043是LTC1043是Dual Precision Instrumentation Switched-Capacitor Building Block，本站介绍了LTC1043的封装应用图解、特点和优点、功能等，并给出了与LTC1043相关的LINEAR元器件型号供参考。

LTC1043 - LTC1043是Dual Precision Instrumentation Switched-Capacitor Building Block - 开关电容构件 - 信号调理 - 凌力尔特

LTC1043 - Dual Precision Instrumentation Switched-Capacitor Building Block

LTC1043 - Dual Precision Instrumentation Switched-Capacitor Building Block - Linear Technology（凌力尔特）

功能描述

The LTC?1043 is a monolithic, charge-balanced, dual switched capacitor instrumentation building block. A pair of switches alternately connects an external capacitor to an input voltage and then connects the charged capacitor across an output port. The internal switches have a break-before-make action. An internal clock is provided and its frequency can be adjusted with an external capacitor.The LTC1043 can also be driven with an external CMOS clock.

The LTC1043, when used with low clock frequencies, provides ultra precision DC functions without requiringprecise external components. Such functions are differential voltage to single-ended conversion, voltageinversion, voltage multiplication and division by 2, 3, 4, 5, etc. The LTC1043 can also be used for precise VμF and FμV circuits without trimming, and it is also a building block for switched capacitor filters, oscillators and modulators.

The LTC1043 is manufactured using Linear Technology’s enhanced LTCMOS silicon gate process.

特点
  • Instrumentation Front End with 120dB CMRR
  • Precise, Charge-Balanced Switching
  • Operates from 3V to 18V
  • Internal or External Clock
  • Operates up to 5MHz Clock Rate
  • Low Power
  • Two Independent Sections with One Clock
    • 应用
  • Precision Instrumentation Amplifiers
  • Ultra Precision Voltage Inverters, Multipliers and Dividers
  • V-F and F-V Converters
  • Sample and Hold
  • Switched-Capacitor Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1043CN N-18 C $3.42 $2.85
    LTC1043CN#PBF N-18 C $3.42 $2.85
    LTC1043CSW SW-18 C $3.75 $3.00
    LTC1043CSW#PBF SW-18 C $3.75 $3.00
    LTC1043CSW#TR SW-18 C $3.10
    LTC1043CSW#TRPBF SW-18 C $3.10
