LT1497是Dual 125mA, 50MHz Current Feedback Amplifier

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1497

LT1497技术文档下载：

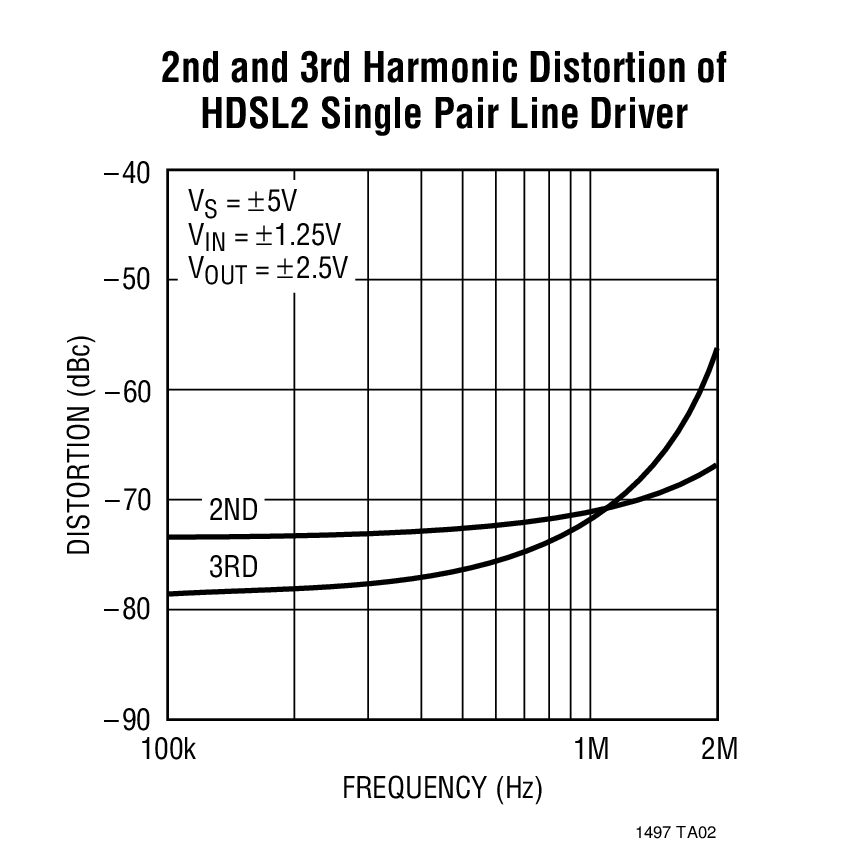

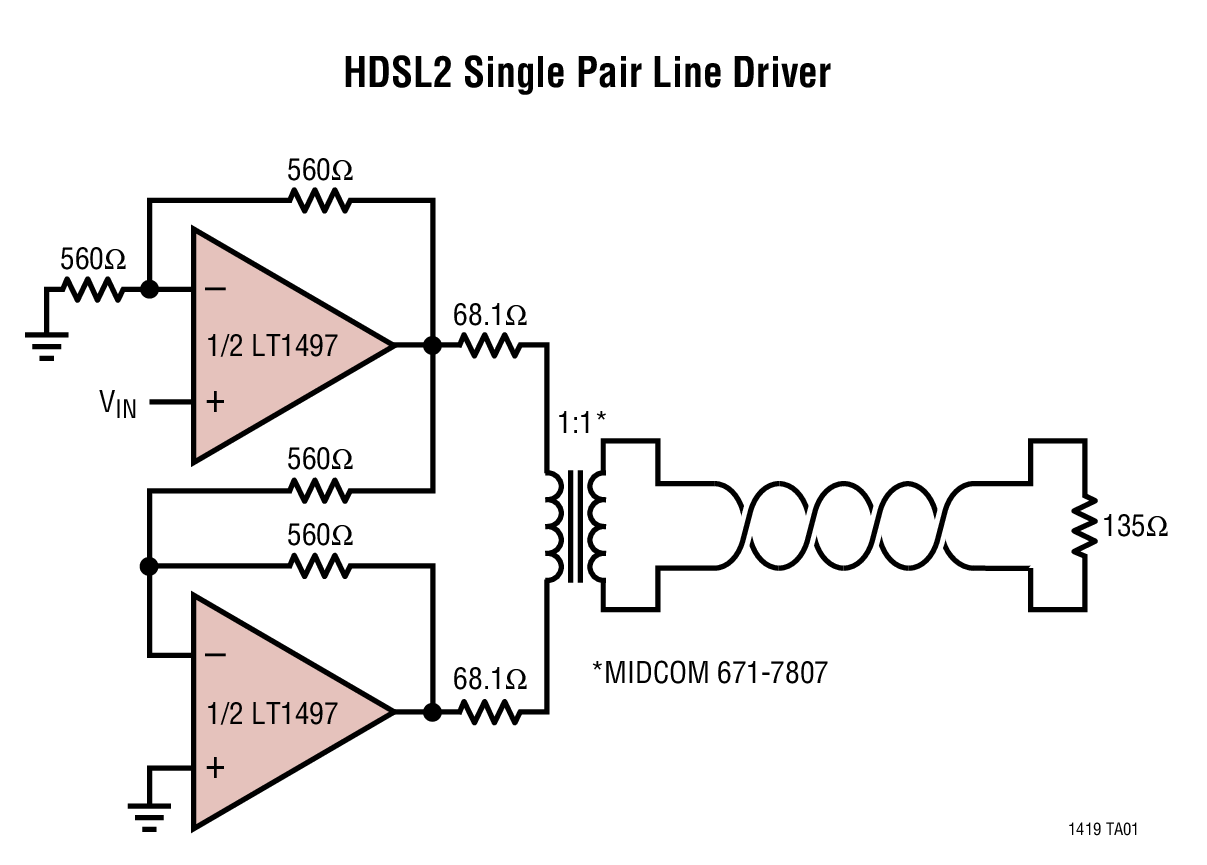

LT1497 - 典型应用图例：

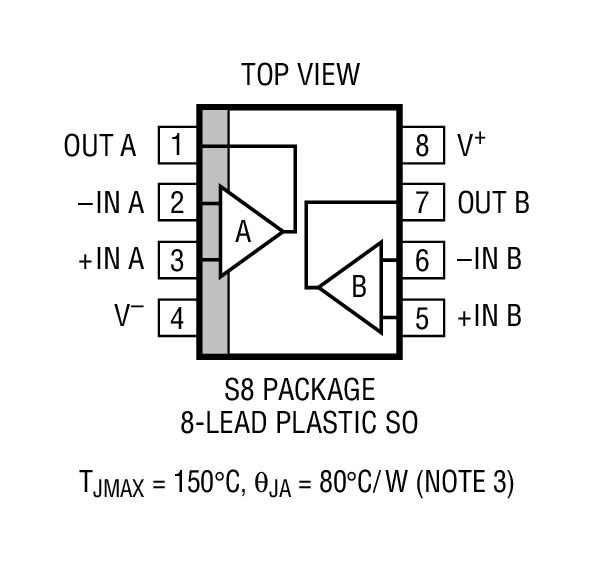

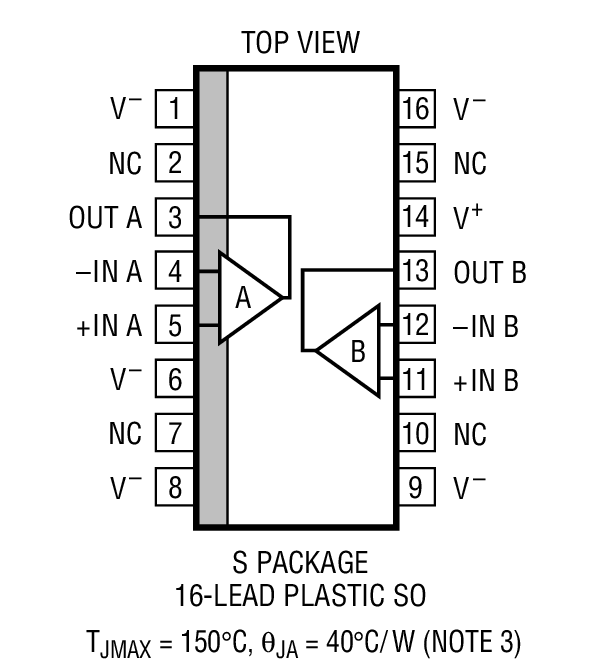

LT1497 - 封装图解：

LT1497 - LT1497是Dual 125mA, 50MHz Current Feedback Amplifier

LT1497是Linear公司的一款高输出电流放大器产品，LT1497是Dual 125mA, 50MHz Current Feedback Amplifier，本站介绍了LT1497的封装应用图解、特点和优点、功能等，并给出了与LT1497相关的凌力尔特元器件型号供参考。

LT1497 - Dual 125mA, 50MHz Current Feedback Amplifier

LT1497 - Dual 125mA, 50MHz Current Feedback Amplifier - Linear Technology（凌力尔特）

功能描述

The LT®1497 dual current feedback amplifier features low power, high output drive, excellent video characteristics and outstanding distortion performance. From a low 7mA maximum supply current per amplifier, the LT1497 drives ±100mA with only 1.9V of headroom. Twisted pairs can be driven differentially with ?70dBc distortion up to 1MHz for ±40mA peak signals. The LT1497 is available in a low thermal resistance 16-pin SO package for operation with supplies up to ±15V. For ±5V operation the device is also available in a low thermal resistance SO-8 package. The device has thermal and current limit circuits that protect against fault conditions.The LT1497 is manufactured on Linear Technology’s complementary bipolar process. The device has characteristics that bridge the performance between the LT1229 and LT1207 dual current feedback amplifiers. The LT1229 has 30mA output drive, 100MHz bandwidth and 12mA supply current. The LT1207 has 250mA output drive, 60MHz bandwidth and 40mA supply current.

特点

Minimum Output Current: ±125mA

Maximum Supply Current per Amp: 7mA, Vs = ±5V

Bandwidth: 50MHz, Vs = ±15V

Slew Rate: 900V/µs, Vs = ±15V

Wide Supply Range: Vs = ±2.5V to ±15V (Enhanced øJA 16-Pin SO Package)

Enhanced øJA SO-8 Package for ±5V Operation

0.02% Differential Gain: Av = 2, RL = 150ohms

0.015° Differential Phase: Av = 2, RL = 150ohms

±13V Output Swing: IL = 100mA, Vs = ±15V

±3.1V Output Swing: IL = 100mA, Vs = ±5V

55ns Settling Time to 0.1%, 10V Step

Thermal Shutdown Protection

应用

Twisted-Pair Drivers

Video Amplifiers

Cable Drivers

Test Equipment Amplifiers

Buffers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1497CS	SO-16	C	$4.85	$4.05
LT1497CS#PBF	SO-16	C	$4.85	$4.05
LT1497CS#TR	SO-16	C		$4.11
LT1497CS#TRPBF	SO-16	C		$4.11
LT1497CS8	SO-8	C	$4.05	$3.35
LT1497CS8#PBF	SO-8	C	$4.05	$3.35
LT1497CS8#TR	SO-8	C		$3.41
LT1497CS8#TRPBF	SO-8	C		$3.41
