LTC2292 - LTC2292是Dual 12-Bit, 40Msps Low Power 3V ADC
LTC2292是Linear公司的一款高速 ADC产品，LTC2292是Dual 12-Bit, 40Msps Low Power 3V ADC，本站介绍了LTC2292的封装应用图解、特点和优点、功能等，并给出了与LTC2292相关的凌力尔特元器件型号供参考。
LTC2292 - Dual 12-Bit, 40Msps Low Power 3V ADC
LTC2292 - Dual 12-Bit, 40Msps Low Power 3V ADC - Linear Technology（凌力尔特）
功能描述

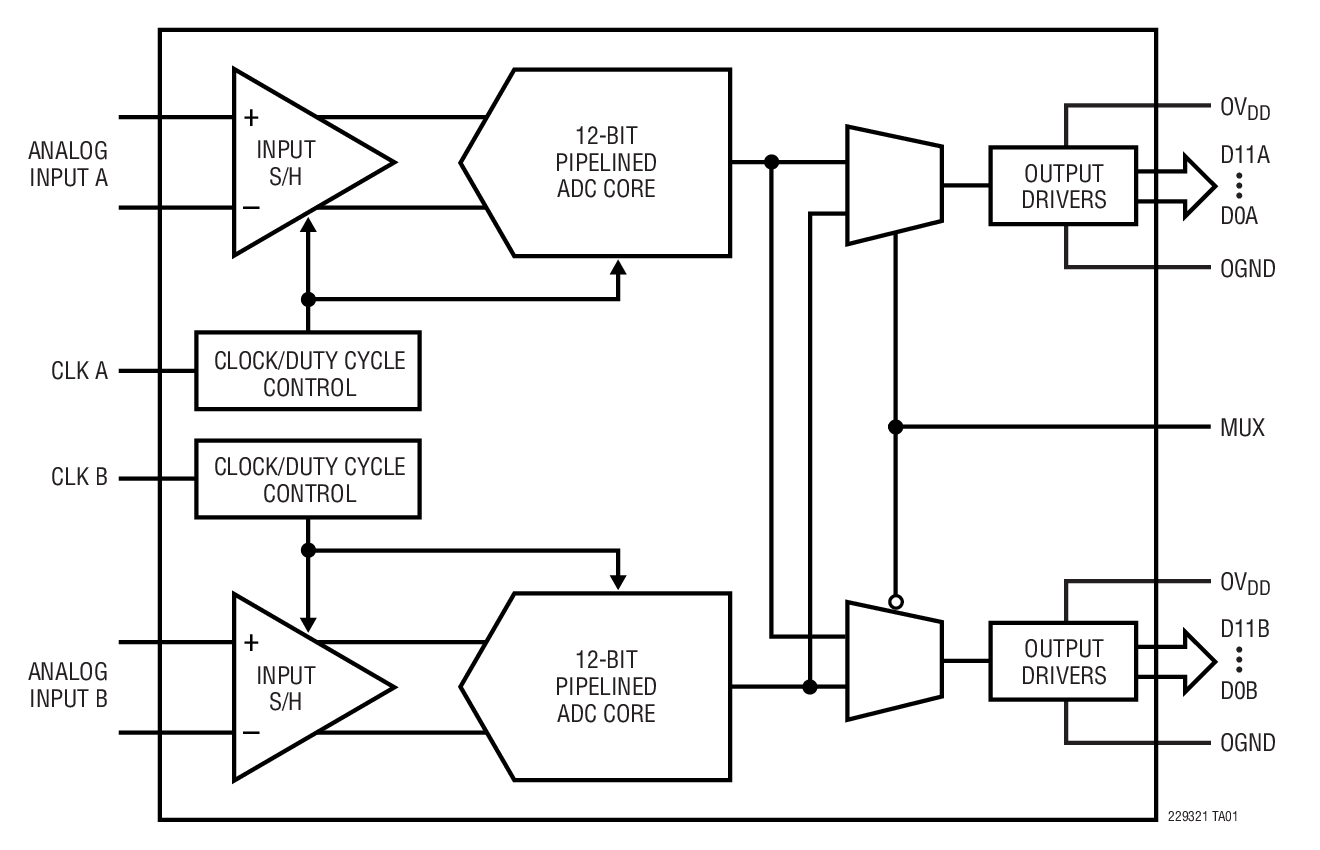

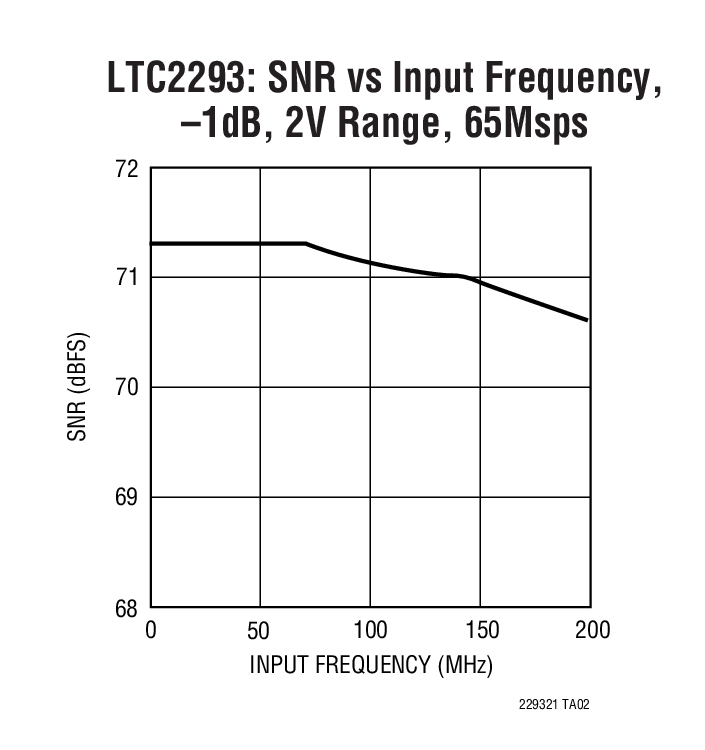

The LTC2293/LTC2292/LTC2291 are 12-bit 65Msps/40Msps/25Msps, low power dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2293/LTC2292/LTC2291 are perfect for demanding imaging and communications applications with AC performance that includes 71.3dB SNR and 90dB SFDR for signals at the Nyquist frequency.
DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share a digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
特点

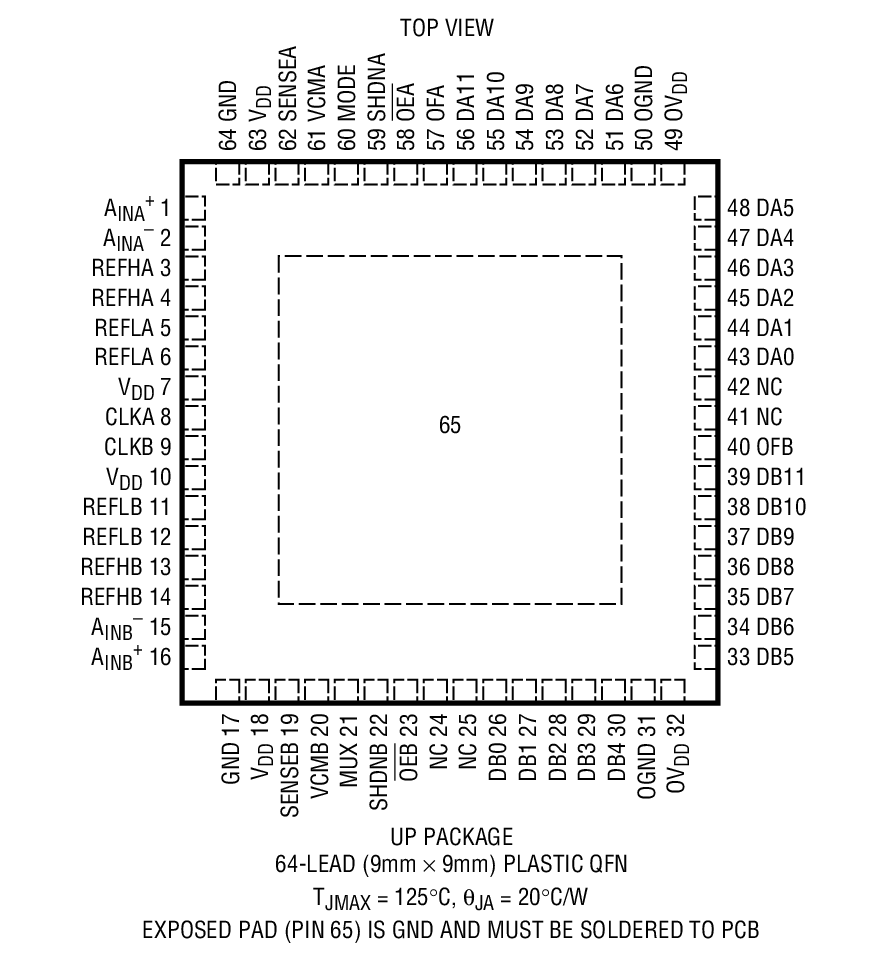

Integrated Dual 12-Bit ADCs Sample Rate: 65Msps/40Msps/25Msps Single 3V Supply (2.7V to 3.4V) Low Power: 400mW/235mW/150mW 71.3 dB SNR 90dB SFDR 110dB Channel Isolation at 100MHz Multiplexed or Separate Data Bus Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit)10Msps: LTC2290 (12-Bit), LTC2295 (14-Bit) 64-Pin (9mm × 9mm) QFN Package应用
Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC2292CUP | 9x9 QFN-64 | C | $16.03 | $11.88 |
| LTC2292CUP#PBF | 9x9 QFN-64 | C | $16.03 | $11.88 |
| LTC2292CUP#TR | 9x9 QFN-64 | C | | $11.98 |
| LTC2292CUP#TRPBF | 9x9 QFN-64 | C | | $11.98 |
| LTC2292IUP | 9x9 QFN-64 | I | $19.23 | $14.25 |
| LTC2292IUP#PBF | 9x9 QFN-64 | I | $19.23 | $14.25 |
| LTC2292IUP#TR | 9x9 QFN-64 | I | | $14.35 |
| LTC2292IUP#TRPBF | 9x9 QFN-64 | I | | $14.35 |
