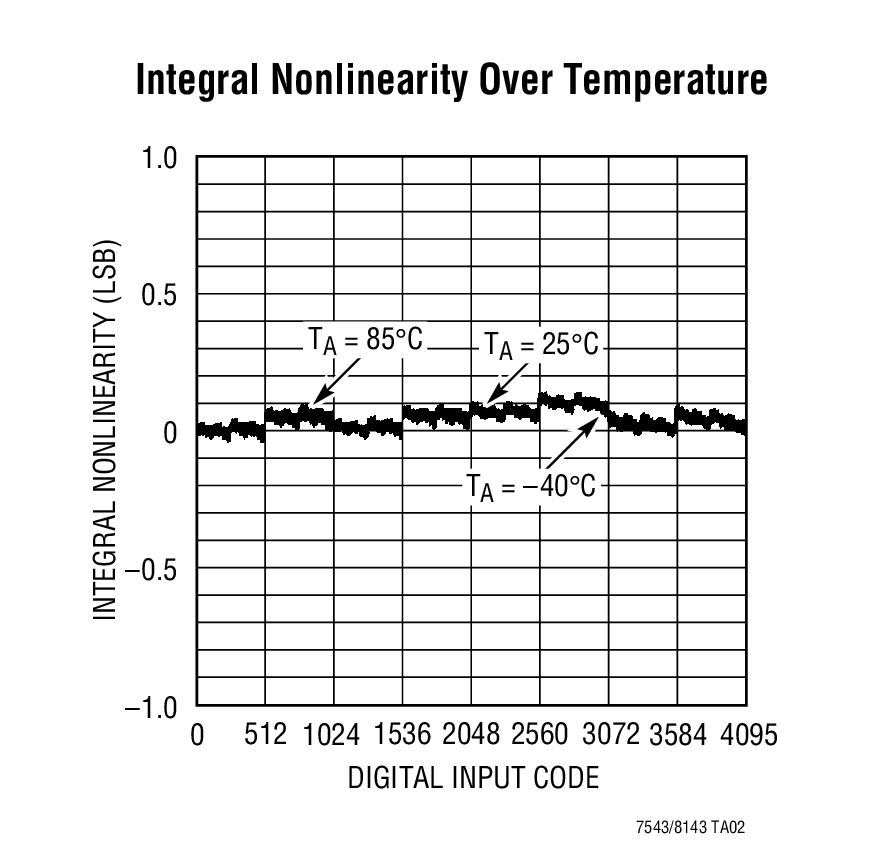

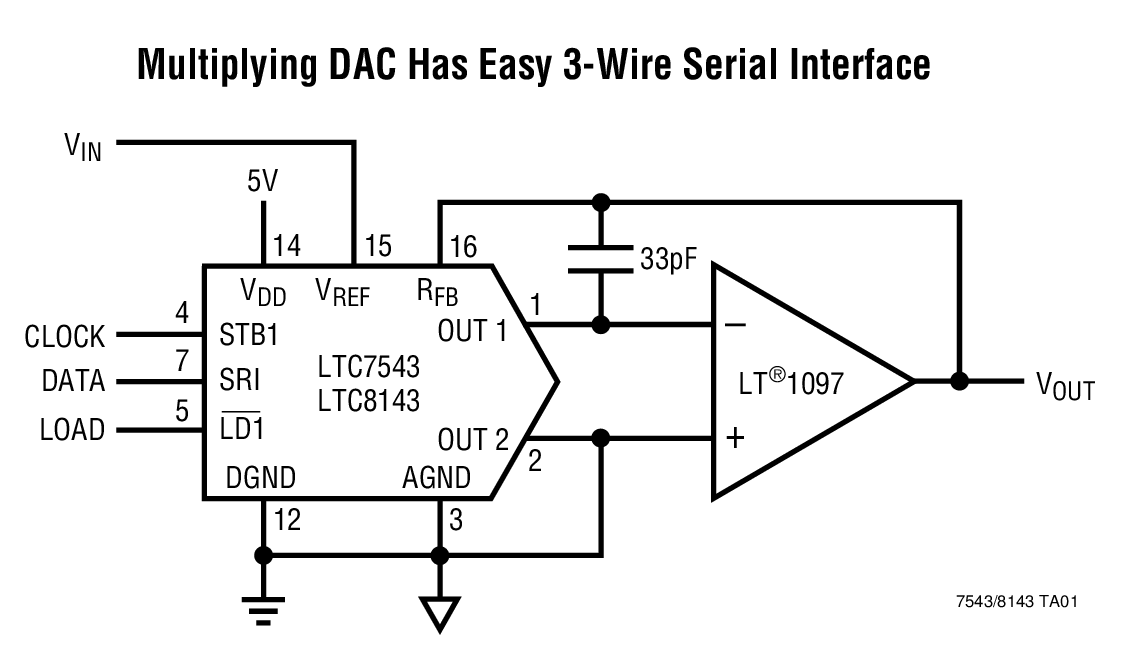

LTC7543 - 典型应用图例：

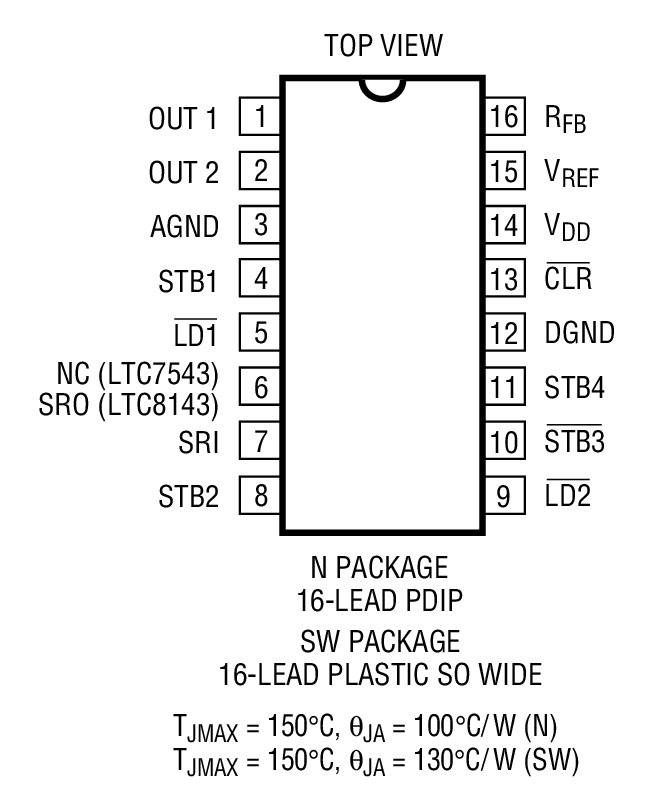

LTC7543 - 封装图解：

LTC7543 - LTC7543是Improved Industry Standard Serial 12-Bit Multiplying DACs

LTC7543是Linear公司的一款电流输出 DAC产品，LTC7543是Improved Industry Standard Serial 12-Bit Multiplying DACs，本站介绍了LTC7543的封装应用图解、特点和优点、功能等，并给出了与LTC7543相关的凌力尔特元器件型号供参考。

LTC7543 - Improved Industry Standard Serial 12-Bit Multiplying DACs

LTC7543 - Improved Industry Standard Serial 12-Bit Multiplying DACs - Linear Technology（凌力尔特）

功能描述

The LTC7543/LTC8143 are serial-input 12-bit multiplying digital-to-analog converters (DACs). They are superior pin compatible replacements for the AD7543 and DAC-8143. Improvements include better accuracy, better stability over temperature and supply variations, lower sensitivity to output amplifier offset, tighter timing specifications and lower output capacitance.An easy-to-use serial interface includes an asynchronous CLEAR input for systems requiring initialization to a known state. The LTC8143 has a serial data out put to allow daisy-chaining multiple DACs on a 3-wire interface bus.These DACs are extremely versatile. They can be used for 2-quadrant and 4-quadrant multiplying, programmable gain and single supply applications, such as noninverting voltage output and biased or offset ground mode.Parts are available in 16-pin PDIP and SO packages and are specified over the extended industrial temperature range, ?40°C to 85°C.

特点

Improved Direct Replacement for AD7543 and DAC-8143

Low Cost

DNL and INL Over Temperature: ±0.5LSB

Easy, Fast and Flexible Serial Interface

Daisy-Chain 3-Wire Interface for Multiple DAC Systems (LTC8143)

1LSB Maximum Gain Error Over Temperature Eliminates Adjustment

Asynchronous Clear Input for Initialization

Four-Quadrant Multiplication

Low Power Consumption

16-Pin PDIP and SO Packages

应用

Process Control and Industrial Automation

Remote Microprocessor-Controlled Systems

Digitally Controlled Filters and Power Supplies

Programmable Gain Amplifiers

Automatic Test Equipment
