LTC1856是具停机功能的8通道、±10V 输入 14位、100ksps ADC 转换器

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1856

LTC1856技术文档下载：

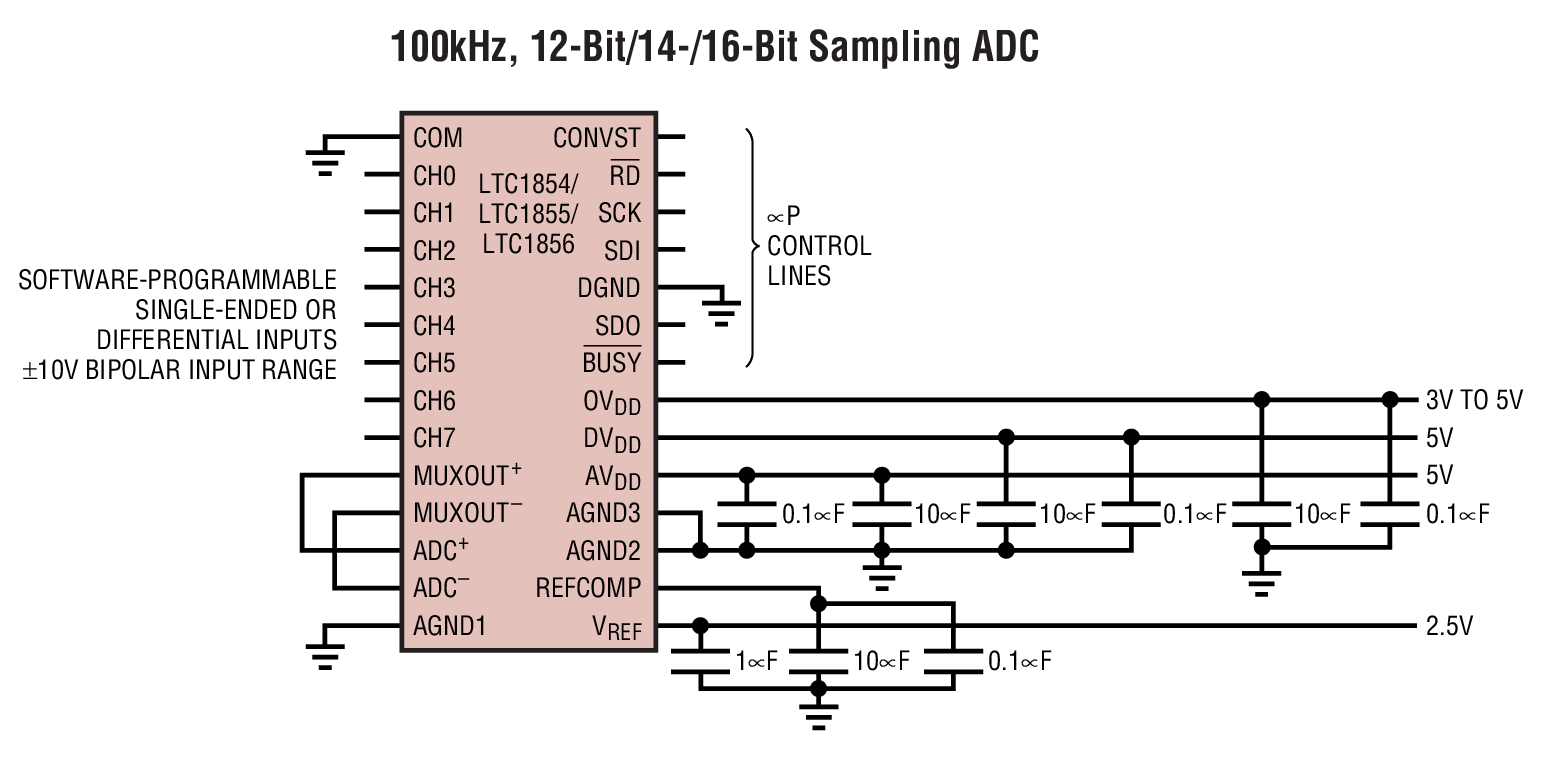

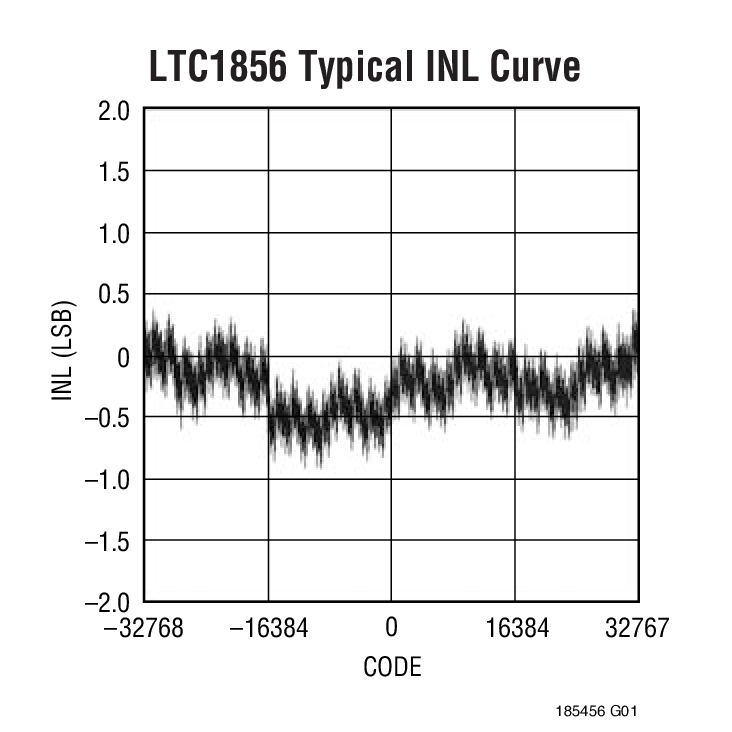

LTC1856 - 典型应用图例：

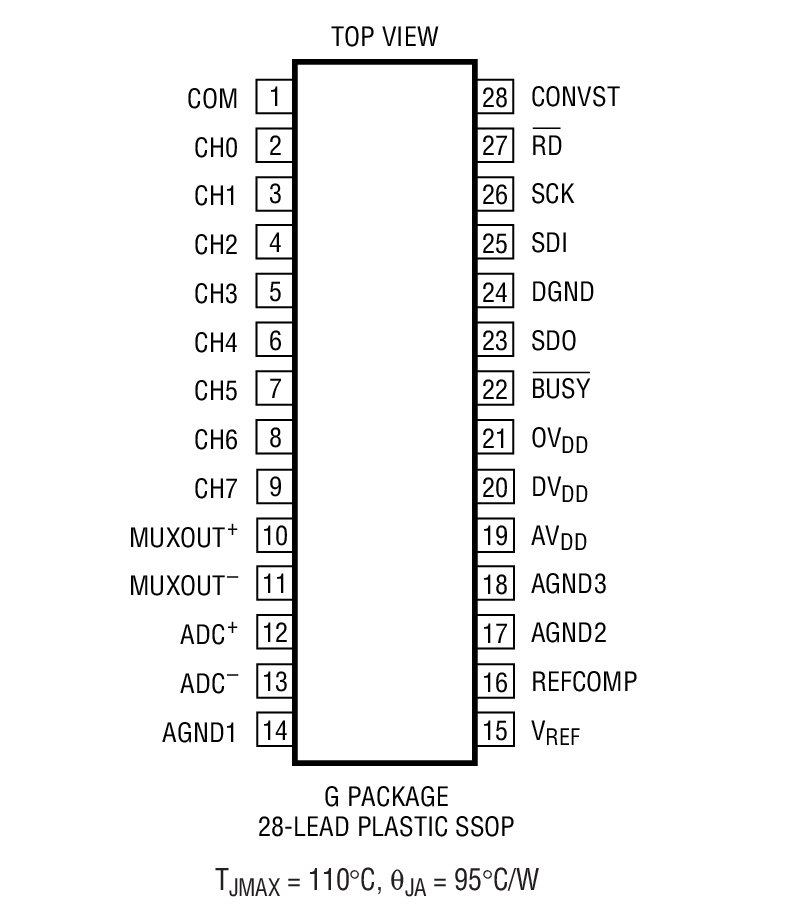

LTC1856 - 封装图解：

LTC1856 - LTC1856是具停机功能的8通道、±10V 输入 14位、100ksps ADC 转换器

LTC1856是Linear公司的一款通用型 SAR ADC产品，LTC1856是具停机功能的8通道、±10V 输入 14位、100ksps ADC 转换器，本站介绍了LTC1856的封装应用图解、特点和优点、功能等，并给出了与LTC1856相关的凌力尔特元器件型号供参考。

LTC1856 - 具停机功能的8通道、±10V 输入 14位、100ksps ADC 转换器

LTC1856 - 具停机功能的8通道、±10V 输入 14位、100ksps ADC 转换器 - Linear Technology（凌力尔特）

功能描述

The LTC1854/LTC1855 are 8-channel, low power, 12-/14-bit, 100ksps, analog-to-digital converters (ADCs). These ADCs operate from a single 5V supply and the 8-channel multiplexer can be programmed for singleended inputs or pairs of differential inputs or combinations of both. In addition, all channels are fault protected to ±30V. A fault condition on any channel will not affect the conversion result of the selected channel.

An onboard precision reference minimize external components. The low 40mW power dissipation is made even more attractive with two user selectable power shutdown modes. DC specifications include, ±1.5LSB INL for the LTC1855 and ±1LSB for the LTC1854.

The internal clock is trimmed for 5µs maximum conversion time and the sampling rate is guaranteed at 100ksps. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

特点

Single 5V Supply

Sample Rate: 100ksps

8-Channel Multiplexer with ±30V Protection

±10V Bipolar Input RangeSingle Ended or Differential

±1.5LSB INL for the LTC1855, ±1LSB INL for the LTC1854

No Missing Codes Over Temperature

Power Dissipation: 40mW (Typ)

SPI/MICROWIRETM Compatible Serial I/O

Power Shutdown: Nap and Sleep

SINAD: 83dB (Typ) for the LTC1855

Operates with Internal or External Reference
