LTC2294 - LTC2294是Dual 12-Bit, 80Msps Low Power 3V ADC
LTC2294是Linear公司的一款高速 ADC产品，LTC2294是Dual 12-Bit, 80Msps Low Power 3V ADC，本站介绍了LTC2294的封装应用图解、特点和优点、功能等，并给出了与LTC2294相关的凌力尔特元器件型号供参考。
LTC2294 - Dual 12-Bit, 80Msps Low Power 3V ADC
LTC2294 - Dual 12-Bit, 80Msps Low Power 3V ADC - Linear Technology（凌力尔特）
功能描述
The LTC2294 is a 12-bit 80Msps, low power dual 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2294 is perfect for demanding imaging and communications applications with AC performance that includes 70.6dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency.
DC specs include ±0.4LSB INL (typ), ±0.2LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.3LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share a digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
特点

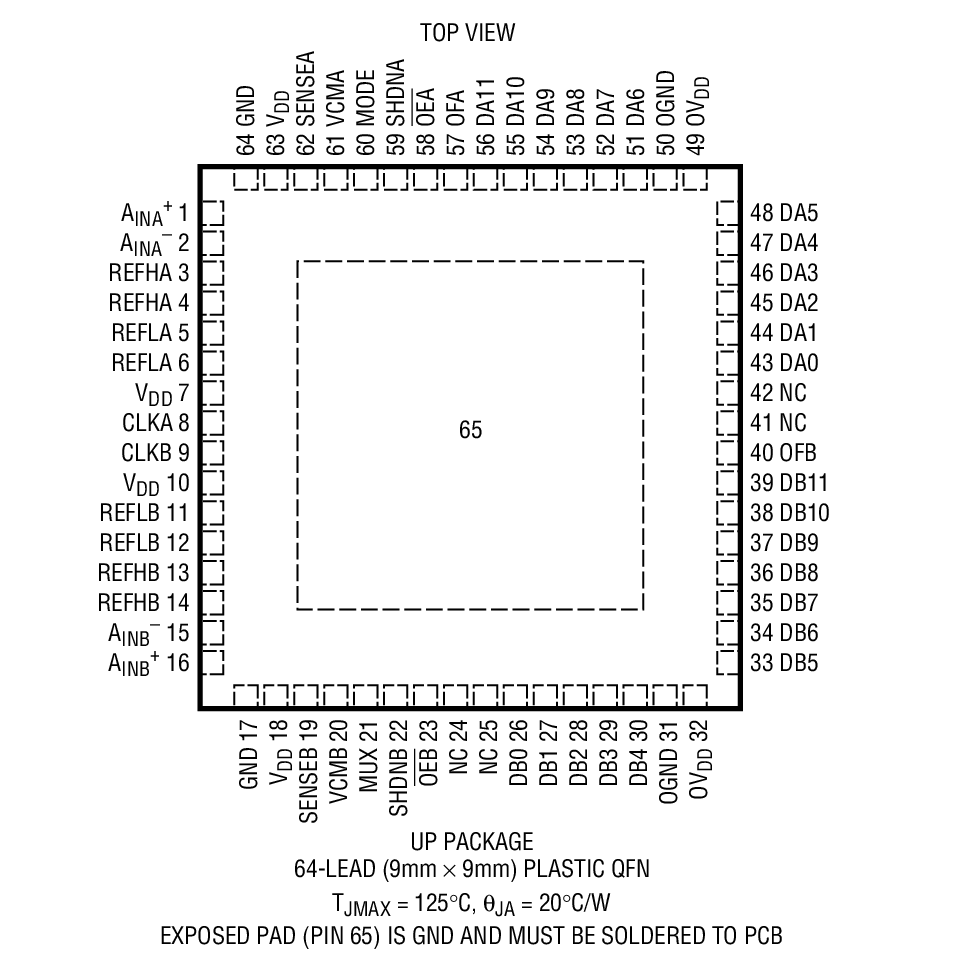

Integrated Dual 12-Bit ADCs Sample Rate: 80Msps Single 3V Supply (2.7V to 3.4V) Low Power: 422mW 70.6dB SNR at 70MHz Input 90dB SFDR at 70MHz Input 110dB Channel Isolation at 100MHz Multiplexed or Separate Data Bus Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit)80Msps: LTC2294 (12-Bit), LTC2299 (14-Bit)65Msps: LTC2293 (12-Bit), LTC2298 (14-Bit)40Msps: LTC2292 (12-Bit), LTC2297 (14-Bit)25Msps: LTC2291 (12-Bit), LTC2296 (14-Bit) 64-Pin (9mm × 9mm) QFN Package应用
Wireless and Wired Broadband Communication Imaging Systems Spectral Analysis Portable Instrumentation以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC2294CUP | 9x9 QFN-64 | C | $34.25 | $25.05 |
| LTC2294CUP#PBF | 9x9 QFN-64 | C | $34.25 | $25.05 |
| LTC2294CUP#TR | 9x9 QFN-64 | C | | $25.15 |
| LTC2294CUP#TRPBF | 9x9 QFN-64 | C | | $25.15 |
| LTC2294IUP | 9x9 QFN-64 | I | $41.00 | $30.00 |
| LTC2294IUP#PBF | 9x9 QFN-64 | I | $41.00 | $30.00 |
| LTC2294IUP#TR | 9x9 QFN-64 | I | | $30.10 |
| LTC2294IUP#TRPBF | 9x9 QFN-64 | I | | $30.10 |
