LT1223 - LT1223是100MHz Current Feedback Amplifier
LT1223是Linear公司的一款高速放大器产品，LT1223是100MHz Current Feedback Amplifier，本站介绍了LT1223的封装应用图解、特点和优点、功能等，并给出了与LT1223相关的凌力尔特元器件型号供参考。
LT1223 - 100MHz Current Feedback Amplifier
LT1223 - 100MHz Current Feedback Amplifier - Linear Technology（凌力尔特）
功能描述

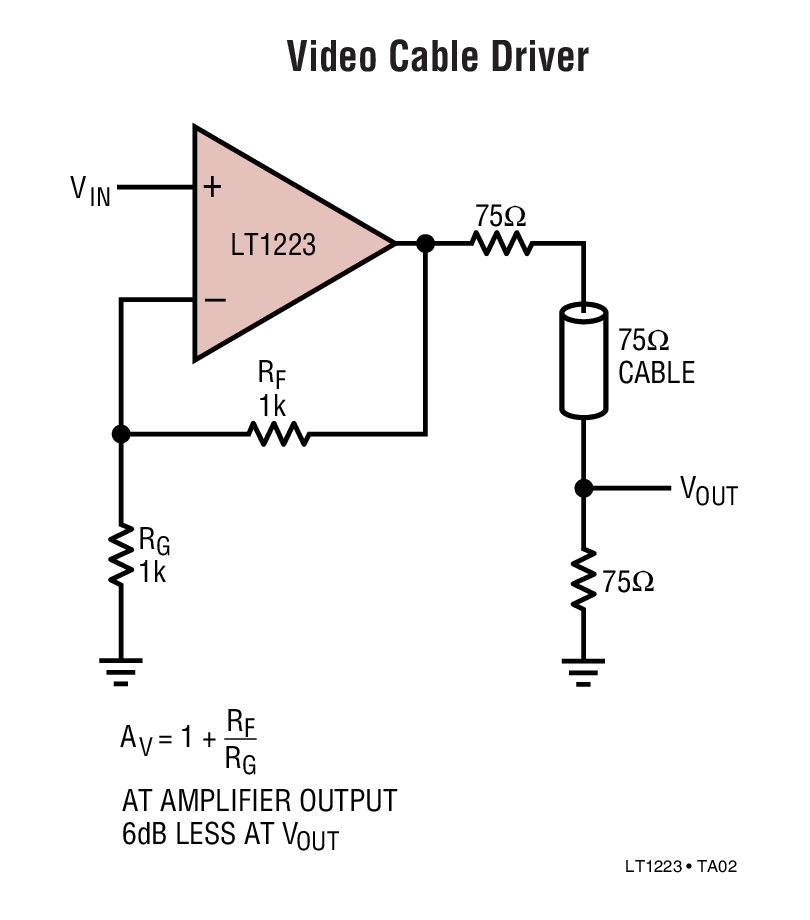

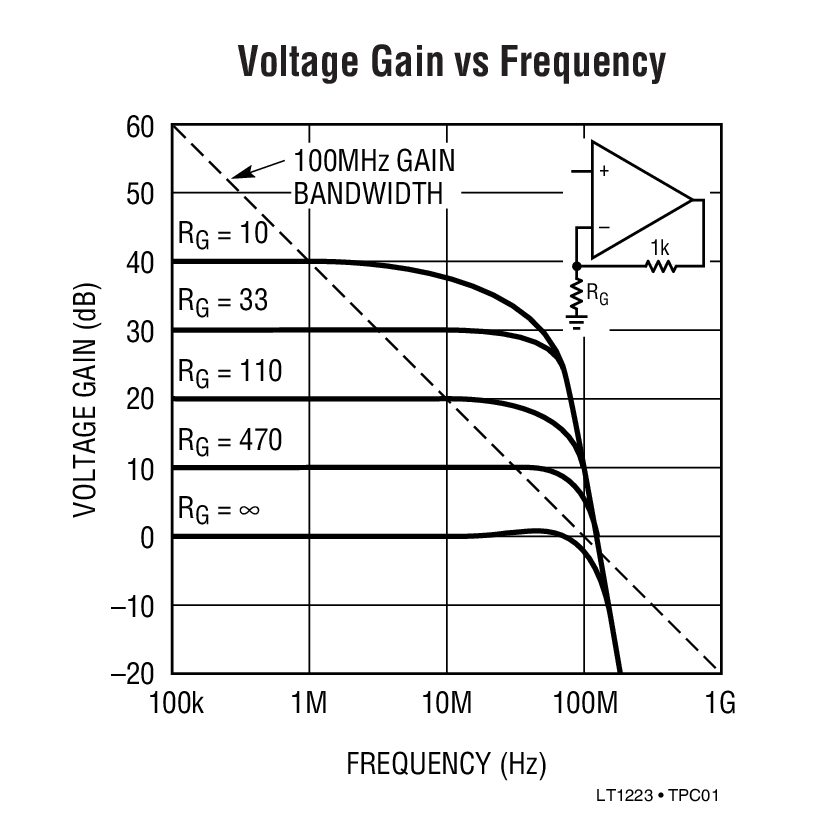

The LT1223 is a 100MHz current feedback amplifier with very good DC characteristics. The LT1223's high slew rate, 1000V/μs, wide supply range, ±15V, and large output drive, ±50mA, make it ideal for driving analog signals over double-terminated cables. The current feedback amplifier has high gain bandwidth at high gains, unlike conventional op amps.
The LT1223 comes in the industry standard pinout and can upgrade the performance of many older products.
The LT1223 is manufactured on Linear Technology's proprietary complementary bipolar process.
?
特点

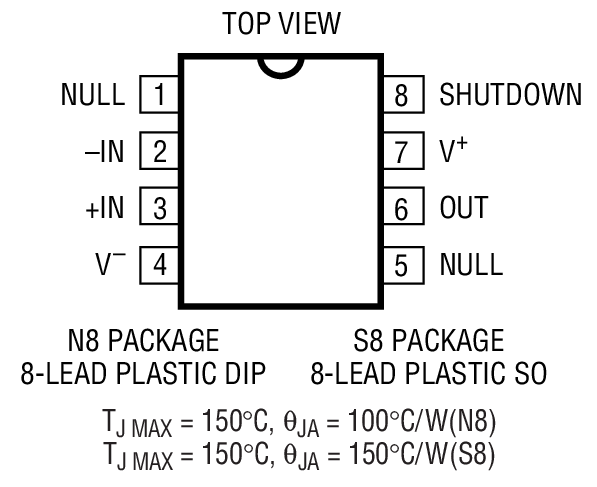

100MHz Bandwidth at AV = 1 1000V/μs Slew Rate Wide Supply Range: ±5V to ±15V 1mV Input Offset Voltage 1μA Input Bias Current 5M Ohms Input Resistance 75ns Settling Time to 0.1% 50mA Output Current 6mA Quiescent Current Available in 8-Lead Plastic DIP and SO Packages应用
Video Amplifiers Buffers IF and RF Amplification Cable Drivers 8-, 10-, 12-Bit Data Acquisition Systems以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT1223CN8 | N-8 | C | $3.58 | $2.85 |
| LT1223CN8#PBF | N-8 | C | $3.58 | $2.85 |
| LT1223CS8 | SO-8 | C | $4.08 | $3.30 |
| LT1223CS8#PBF | SO-8 | C | $4.08 | $3.30 |
| LT1223CS8#TR | SO-8 | C | | $3.36 |
| LT1223CS8#TRPBF | SO-8 | C | | $3.36 |
