LT6411 - 650MHz Differential ADC Driver/Dual Selectable Gain Amplifier

LT6411 - 650MHz Differential ADC Driver/Dual Selectable Gain Amplifier - Linear Technology（凌力尔特）

The LT6411 is a dual amplifier with individually selectable gains of +1, +2 and 1. The amplifiers have excellent distortion performance for driving ADCs as well as excellent bandwidth and slew rate for video, data transmission and other high speed applications. Single-ended to differential conversion with a system gain of 2 is particularly straightforward by configuring one amplifier with a gain of +1 and the other amplifier with a gain of 1. The LT6411 can be used on split supplies as large as ±6V and on a single supply as low as 4.5V. Each amplifier draws only 8mA of quiescent current when enabled. When disabled, the output pins become high impedance and each amplifier draws less than 350μA. The LT6411 is manufactured on Linear Technology’s proprietary, low voltage, complimentary, bipolar process and is available in the ultra-compact, 3mm × 3mm, 16pin QFN package.

650MHz –3dB Small-Signal Bandwidth

600MHz –3dB Large-Signal Bandwidth

High Slew Rate: 3300V/µs

Easily Configured for Single-Ended to Differential Conversion

200MHz ±0.1dB Bandwidth

User Selectable Gain of +1, +2 and –1

No External Resistors Required

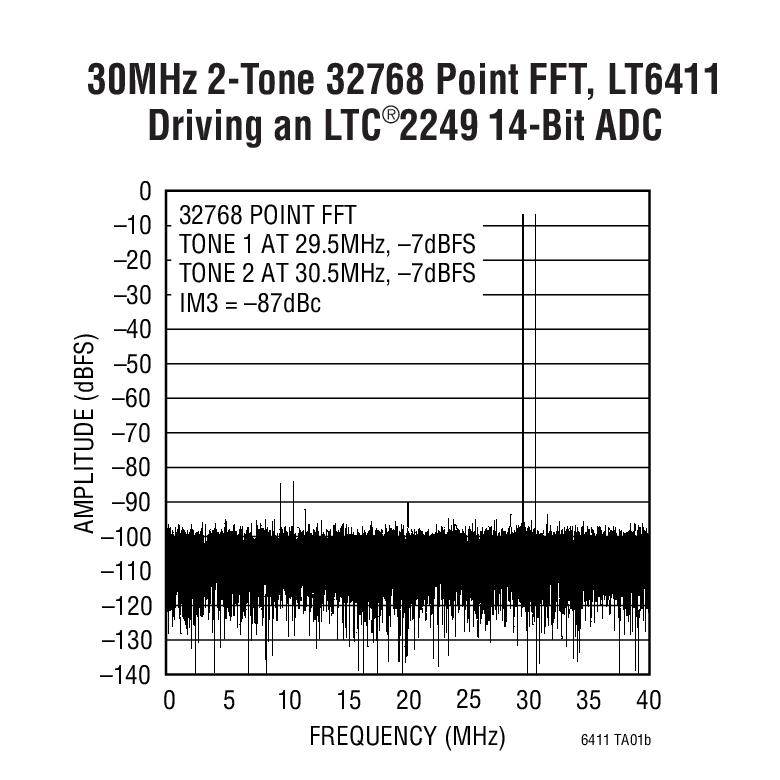

46.5dBm Equivalent OIP3 at 30MHz When Driving an ADC

IM3 with 2VP-P Composite, Differential Output:–87dBc at 30MHz, –83dBc at 70MHz

–77dB SFDR at 30MHz, 2VP-P Differential Output

6ns 0.1% Settling Time for 2V Step

Low Supply Current: 8mA per Ampifier

Differential Gain of 0.02%, Differential Phase of 0.01°

50dB Channel Separation at 100MHz

Wide Supply Range: ±2.25V (4.5V) to ±6.3V (12.6V)

3mm × 3mm 16-Pin QFN Package

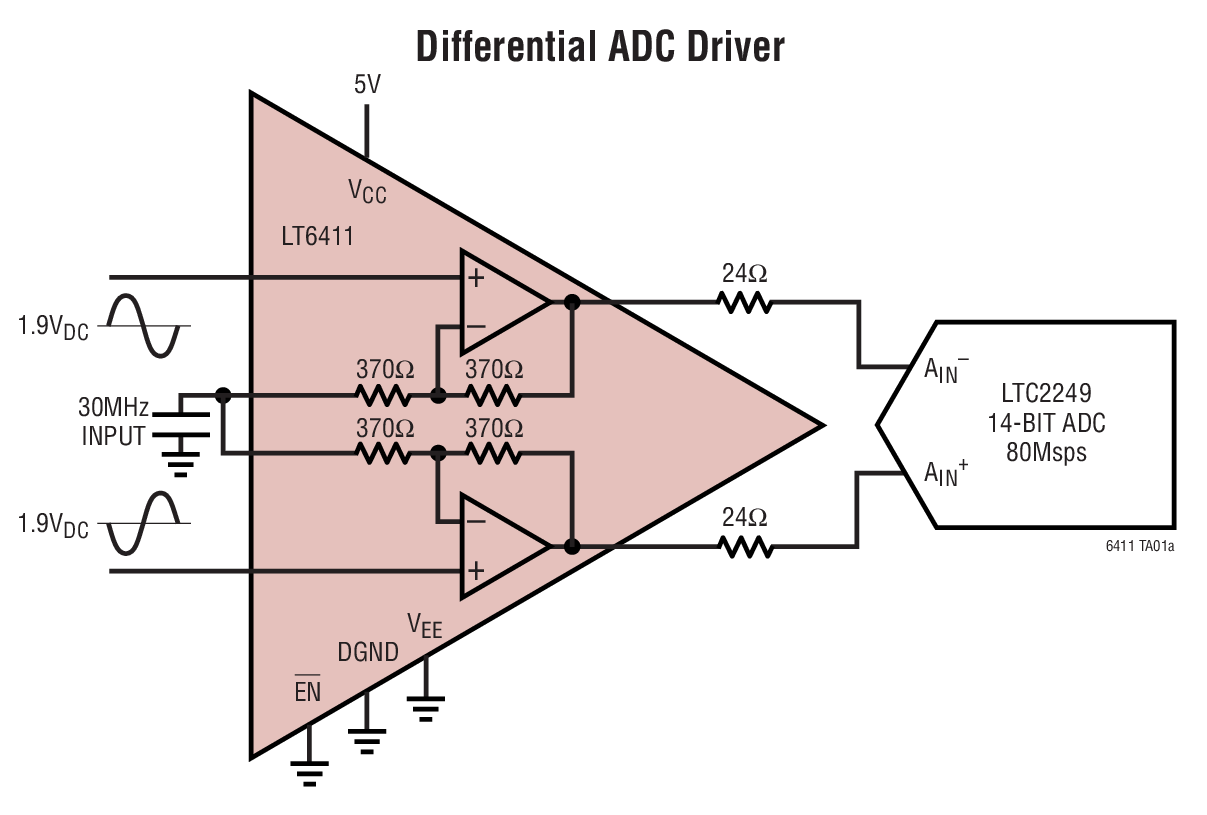

Differential ADC Driver

Single-Ended to Differential Conversion

Differential Video Line Driver
