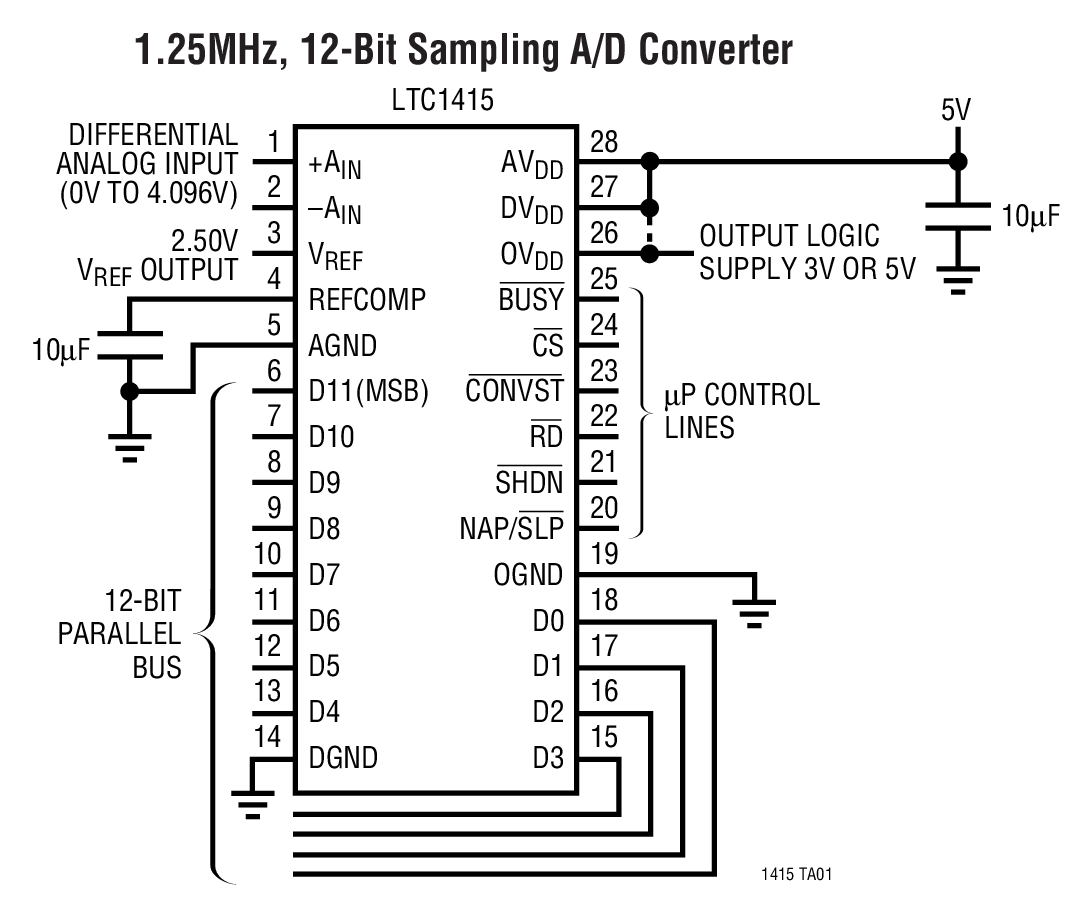

LTC1415典型应用图例一

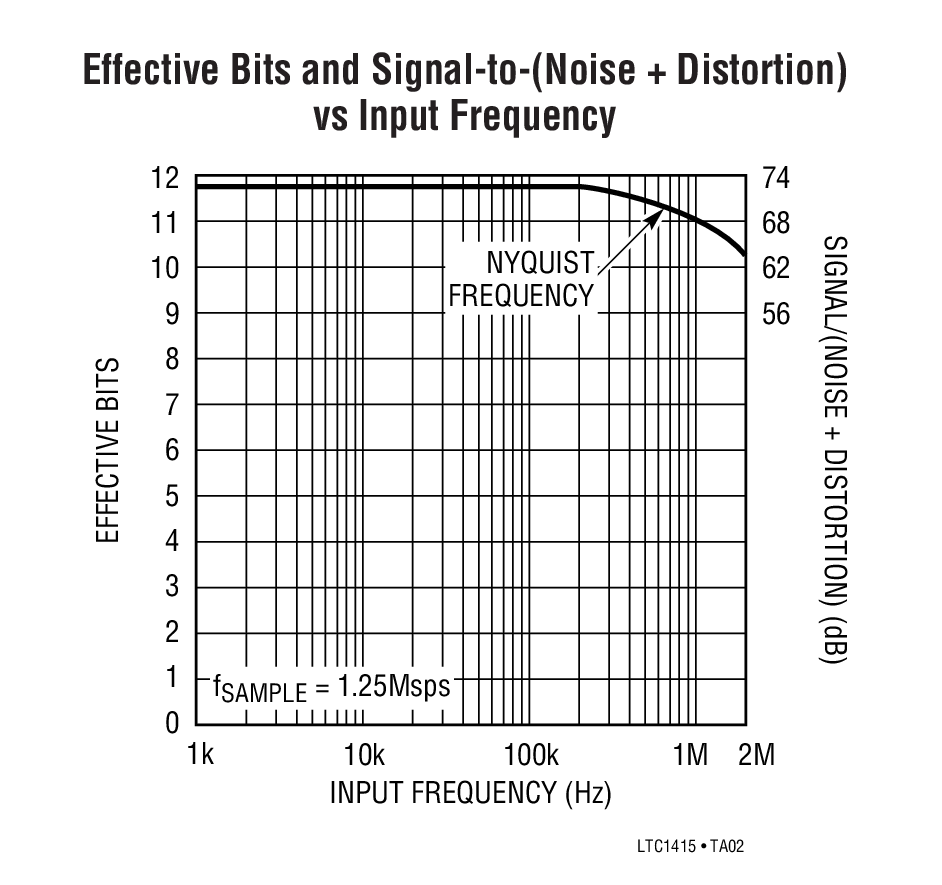

LTC1415典型应用图例二
LTC1415 - 封装图解：

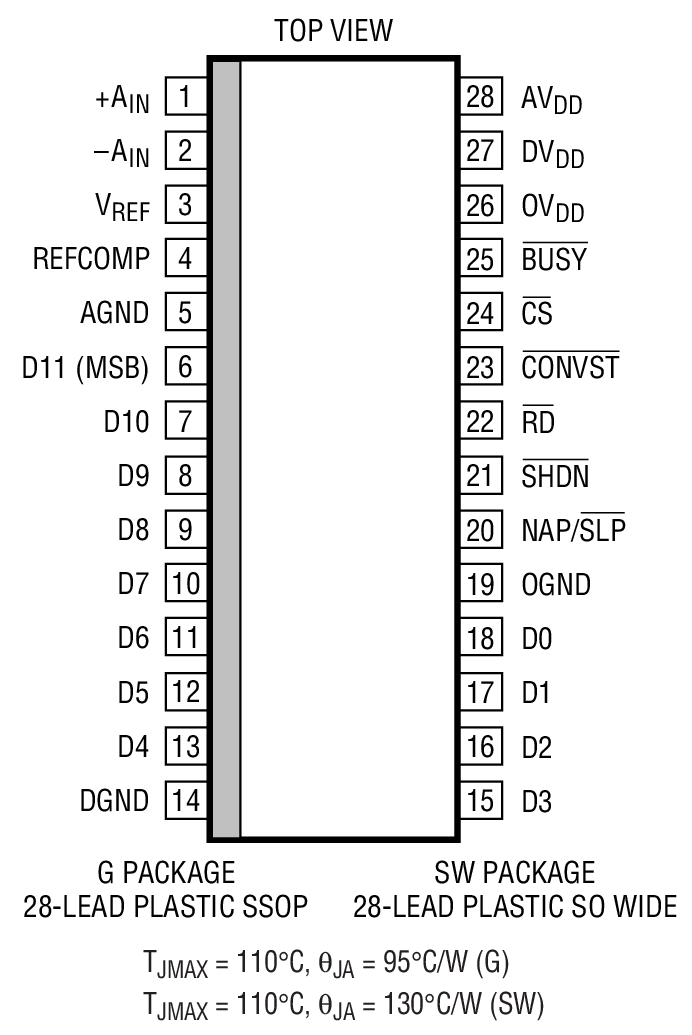

LTC1415封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1415介绍

LTC1415 - LTC1415是12-Bit, 1.25Msps, 55mW Sampling A/D Converter

LTC1415是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1415是LTC1415是12-Bit, 1.25Msps, 55mW Sampling A/D Converter，本站介绍了LTC1415的封装应用图解、特点和优点、功能等，并给出了与LTC1415相关的LINEAR元器件型号供参考。

LTC1415 - LTC1415是12-Bit, 1.25Msps, 55mW Sampling A/D Converter - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1415 - 12-Bit, 1.25Msps, 55mW Sampling A/D Converter

LTC1415 - 12-Bit, 1.25Msps, 55mW Sampling A/D Converter - Linear Technology（凌力尔特）

功能描述
The LTC1415 is a 700ns, 1.25Msps, 12-bit sampling A/D converter that draws only 55mW from a single 5V supply. This easy-to-use device includes a high dynamic range sample-and-hold, precision reference and a trimmed internal clock. Two power shutdown modes provide flexibility for low power systems.

The LTC1415’s full-scale input range is 4.096V. Low linearity errors ±0.35LSB INL, ±0.25LSB DNL make it ideal for imaging systems. Outstanding AC performance includes 72dB S/(N + D) and 80dB THD with an input frequency of 100kHz.

The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 18MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.

The ADC has a µP compatible, 12-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors. A separate output logic supply pin allows direct connection to 3V components.

特点
  • 1.25Msps Sample Rate
  • Single 5V Supply
  • Power Dissipation: 55mW
  • Nap and Sleep Power Shutdown Modes
  • ?0.35LSB INL and ?0.25LSB DNL
  • 72dB S/(N + D) and 80dB THD at 100kHz
  • External or Internal Reference Operation
  • True Differential Inputs Reject Common Mode Noise
  • Input Range: 4.096V (1mV/LSB)
  • 28-Pin SSOP and SO Packages
    • 应用
  • High Speed Data Acquisition
  • Imaging Systems
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • Telecommunications
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1415CG SSOP-28 C $12.20 $10.40
    LTC1415CG#PBF SSOP-28 C $12.20 $10.40
    LTC1415CG#TR SSOP-28 C $10.50
    LTC1415CG#TRPBF SSOP-28 C $10.50
    LTC1415CSW SW-28 C $11.65 $9.90
    LTC1415CSW#PBF SW-28 C $11.65 $9.90
    LTC1415CSW#TR SW-28 C $10.00
    LTC1415CSW#TRPBF SW-28 C $10.00
    LTC1415IG SSOP-28 I $13.30 $11.40
    LTC1415IG#PBF SSOP-28 I $13.30 $11.40
    LTC1415IG#TR SSOP-28 I $11.50
    LTC1415IG#TRPBF SSOP-28 I $11.50
    LTC1415ISW SW-28 I $12.75 $10.90
    LTC1415ISW#PBF SW-28 I $12.75 $10.90
    LTC1415ISW#TR SW-28 I $11.00
    LTC1415ISW#TRPBF SW-28 I $11.00
