LTC1326技术文档下载：

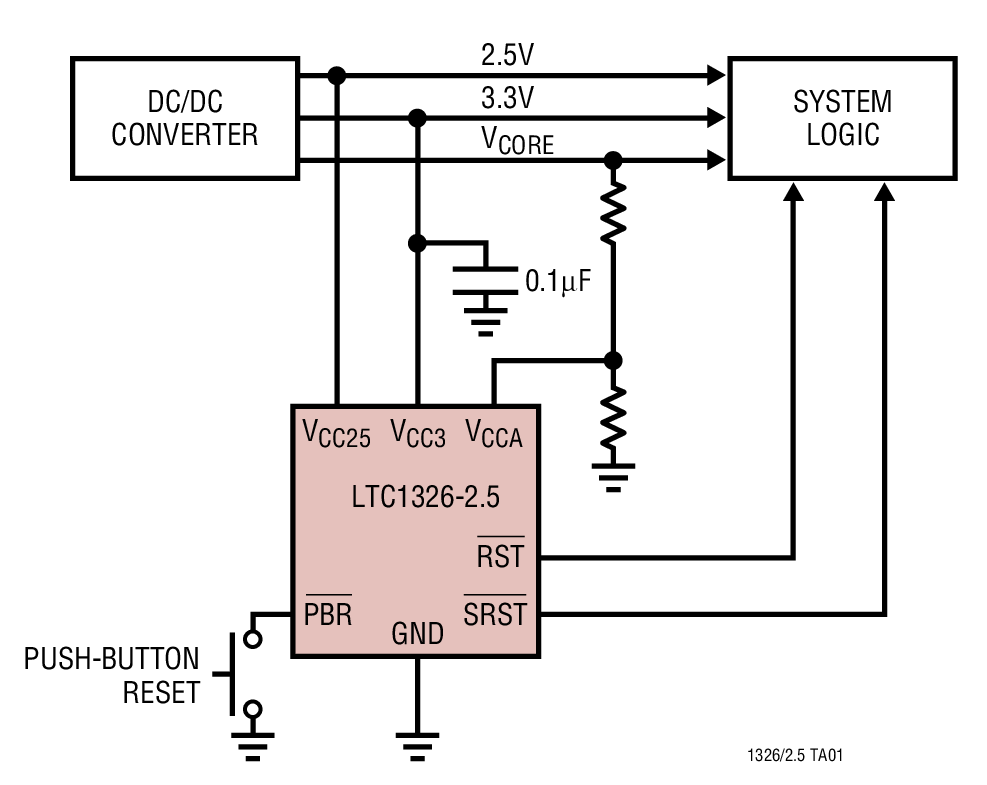

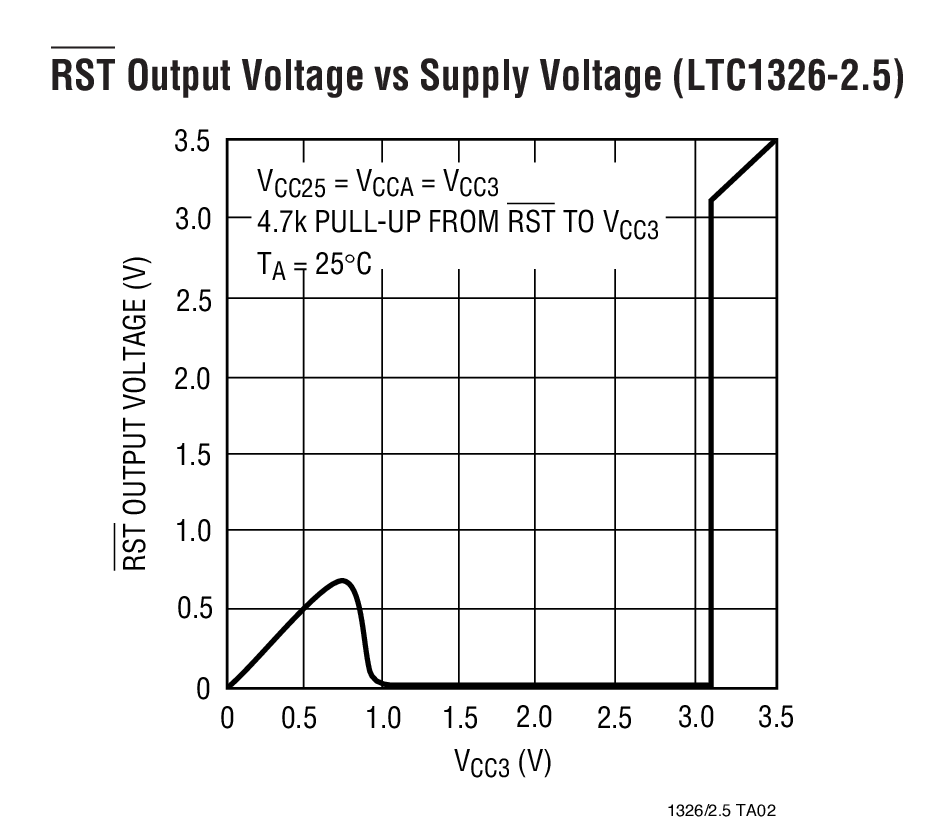

LTC1326 - 典型应用图例：

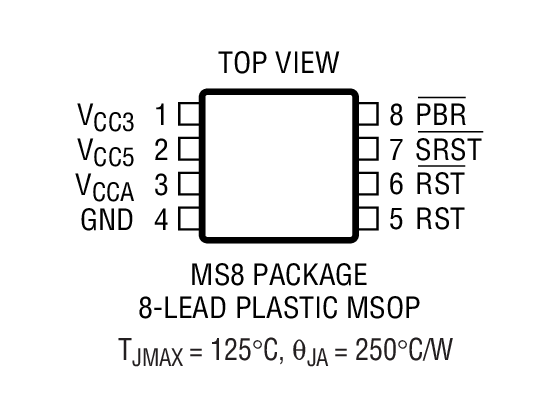

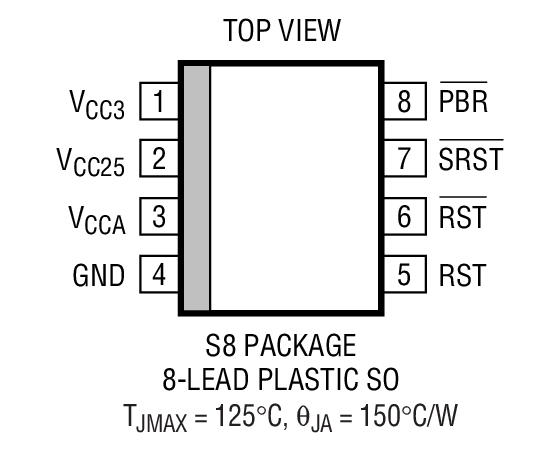

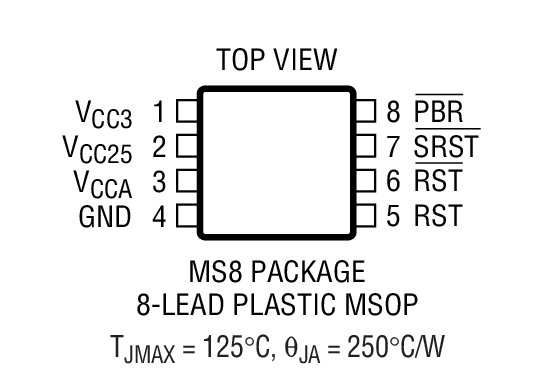

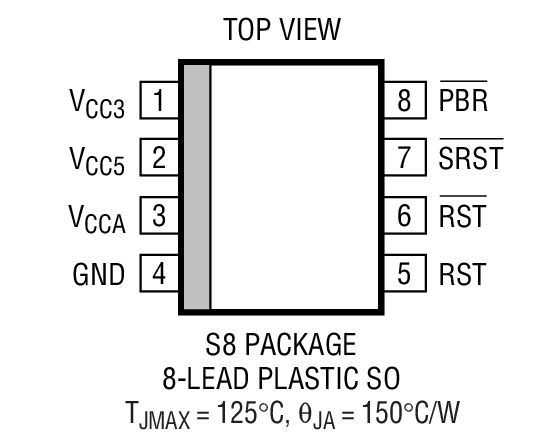

LTC1326 - 封装图解：
LTC1326 - LTC1326是Micropower Precision Triple Supply Monitor
LTC1326是Linear公司的一款三电源监视器产品，LTC1326是Micropower Precision Triple Supply Monitor，本站介绍了LTC1326的封装应用图解、特点和优点、功能等，并给出了与LTC1326相关的凌力尔特元器件型号供参考。
LTC1326 - Micropower Precision Triple Supply Monitor
LTC1326 - Micropower Precision Triple Supply Monitor - Linear Technology（凌力尔特）
功能描述
The LTC?1326/LTC1326-2.5 are triple supply monitors intended for systems with multiple supply voltages. They provide micropower operation, small size and high accuracy supply monitoring. Tight 0.75% threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. The 20μA typical supply current makes the LTC1326/LTC1326-2.5 ideal for power-conscious systems. The RST output is guaranteed to be in the correct state for VCC3, VCC5 or VCC25 down to 1V. The LTC1326/LTC1326-2.5 can be configured to monitor one, two or three inputs, depending on system requirements. A manual push-button reset input provides the ability to generate a very narrow ?soft? reset pulse (100μs typ) or a 200ms reset pulse equivalent to a power-on reset. Both SRST and RST outputs are open-drain and can be OR-tied with other reset sources.特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1326CMS8 | MS-8 | C | $2.85 | $2.30 |
| LTC1326CMS8-2.5 | MS-8 | C | $2.85 | $2.30 |
| LTC1326CMS8-2.5#PBF | MS-8 | C | $2.85 | $2.30 |
| LTC1326CMS8-2.5#TR | MS-8 | C | $2.36 | |
| LTC1326CMS8-2.5#TRPBF | MS-8 | C | $2.36 | |
| LTC1326CMS8#PBF | MS-8 | C | $2.85 | $2.30 |
| LTC1326CMS8#TR | MS-8 | C | $2.36 | |
| LTC1326CMS8#TRPBF | MS-8 | C | $2.36 | |
| LTC1326CS8 | SO-8 | C | $2.70 | $2.20 |
| LTC1326CS8-2.5 | SO-8 | C | $2.70 | $2.20 |
| LTC1326CS8-2.5#PBF | SO-8 | C | $2.70 | $2.20 |
| LTC1326CS8-2.5#TR | SO-8 | C | $2.26 | |
| LTC1326CS8-2.5#TRPBF | SO-8 | C | $2.26 | |
| LTC1326CS8#PBF | SO-8 | C | $2.70 | $2.20 |
| LTC1326CS8#TR | SO-8 | C | $2.26 | |
| LTC1326CS8#TRPBF | SO-8 | C | $2.26 | |
| LTC1326IMS8 | MS-8 | I | $3.85 | $3.05 |
| LTC1326IMS8-2.5 | MS-8 | I | $3.85 | $3.05 |
| LTC1326IMS8-2.5#PBF | MS-8 | I | $3.85 | $3.05 |
| LTC1326IMS8-2.5#TR | MS-8 | I | $3.11 | |
| LTC1326IMS8-2.5#TRPBF | MS-8 | I | $3.11 | |
| LTC1326IMS8#PBF | MS-8 | I | $3.85 | $3.05 |
| LTC1326IMS8#TR | MS-8 | I | $3.11 | |
| LTC1326IMS8#TRPBF | MS-8 | I | $3.11 | |
| LTC1326IS8 | SO-8 | I | $3.60 | $2.95 |
| LTC1326IS8-2.5 | SO-8 | I | $3.60 | $2.95 |
| LTC1326IS8-2.5#PBF | SO-8 | I | $3.60 | $2.95 |
| LTC1326IS8-2.5#TR | SO-8 | I | $3.01 | |
| LTC1326IS8-2.5#TRPBF | SO-8 | I | $3.01 | |
| LTC1326IS8#PBF | SO-8 | I | $3.60 | $2.95 |
| LTC1326IS8#TR | SO-8 | I | $3.01 | |
| LTC1326IS8#TRPBF | SO-8 | I | $3.01 |
