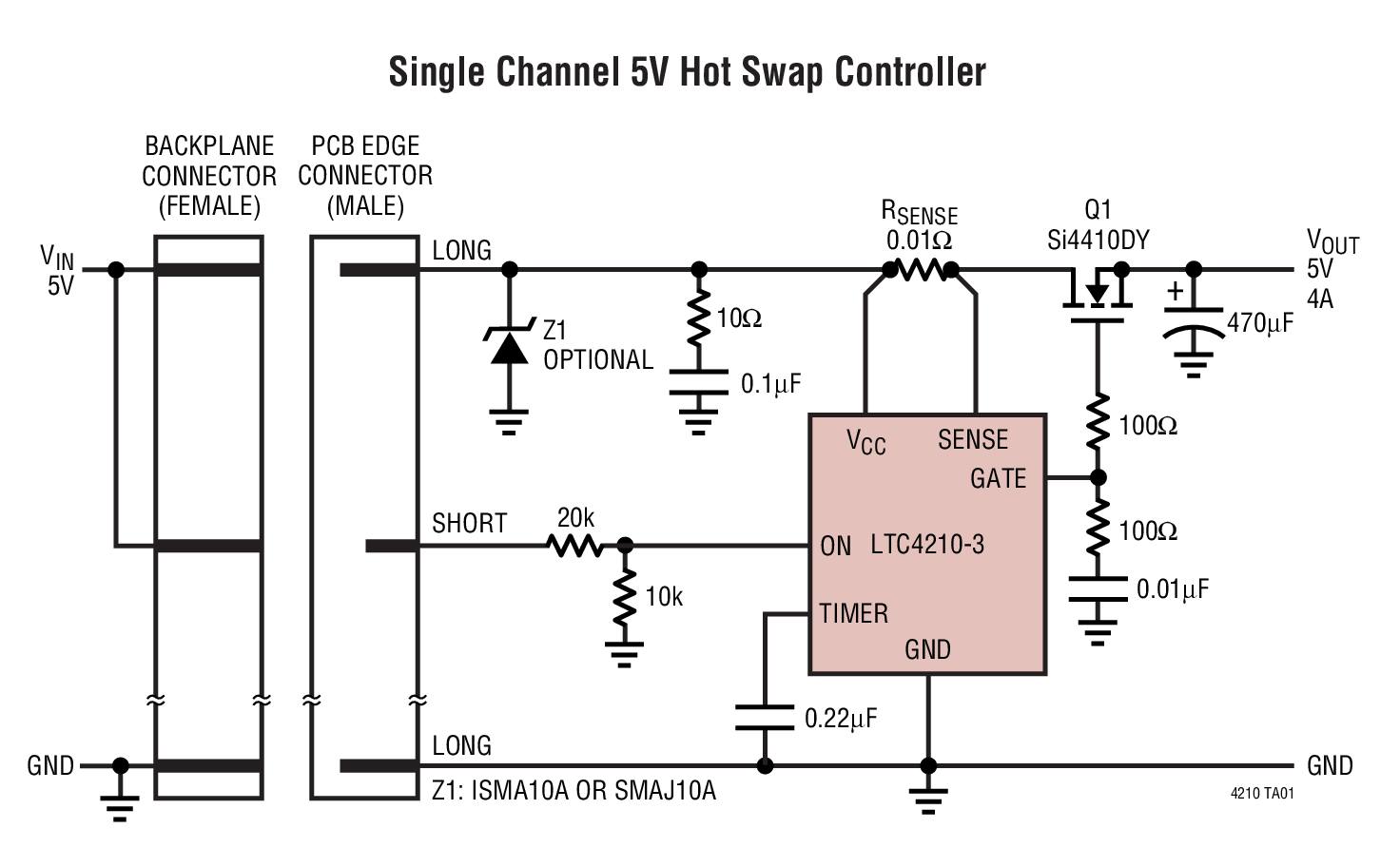

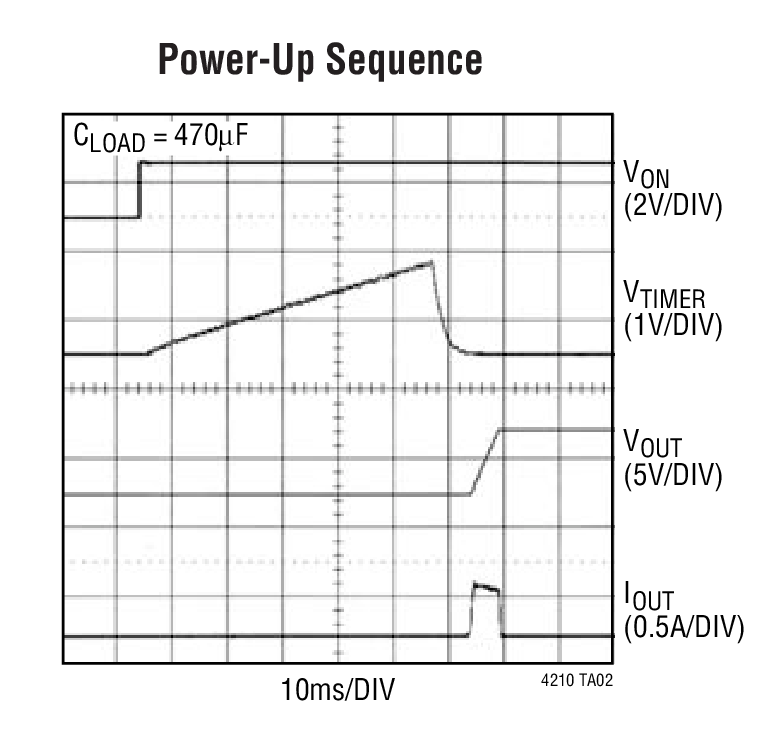

LTC4210-4 - 典型应用图例：

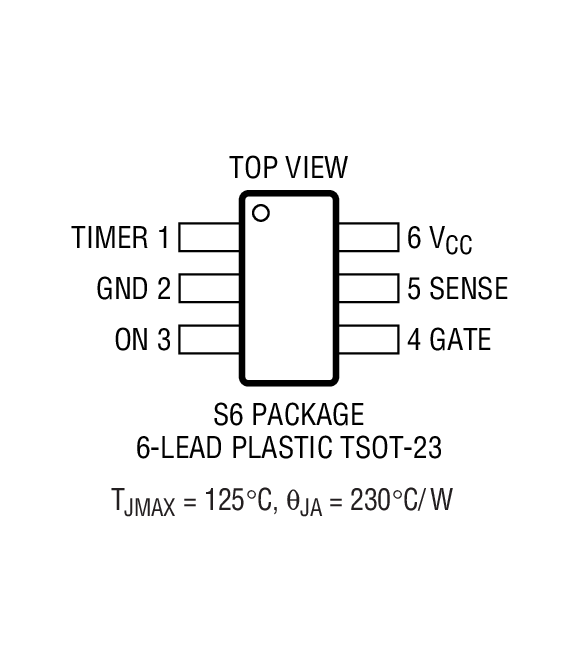

LTC4210-4 - 封装图解：

LTC4210-4 - LTC4210-4是Hot Swap Controller in 6-Lead SOT-23 Package

LTC4210-4是Linear公司的一款低电压热插拔控制器产品，LTC4210-4是Hot Swap Controller in 6-Lead SOT-23 Package，本站介绍了LTC4210-4的封装应用图解、特点和优点、功能等，并给出了与LTC4210-4相关的凌力尔特元器件型号供参考。

LTC4210-4 - Hot Swap Controller in 6-Lead SOT-23 Package

LTC4210-3/LTC4210-4 - Hot Swap Controller in 6-Lead SOT-23 Package - Linear Technology（凌力尔特）

功能描述

The LTC4210-3/LTC4210-4 is a 6-pin SOT-23 Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the GATE of an external N-channel MOSFET for a supply voltage ranging from 2.7V to 7V. The LTC4210 provides the initial timing cycle and allows the GATE to be ramped up at an adjustable rate.

The LTC4210 features a fast current limit loop providing active current limiting together with a circuit breaker timer. The signal at the ON pin turns the part on and off and is also used for the reset function.

The LTC4210-3 retries on overcurrent fault and the LTC4210-4 latches off on an overcurrent fault.

特点

Allows Safe Board Insertion and Removal from a Live Backplane

Adjustable Analog Current Limit with Circuit Breaker

Fast Response Limits Peak Fault Current

Automatic Retry or Latch Off On Current Fault

Adjustable Supply Voltage Power-Up Rate

High Side Drive for External MOSFET Switch

Controls Supply Voltages from 2.7V to 7V

Undervoltage Lockout

Adjustable Overvoltage Protection

Low Profile (1mm) SOT-23 (ThinSOTTM) Package

应用

Hot Board Insertion

Electronic Circuit Breaker

Industrial High Side Switch/Circuit Breaker
