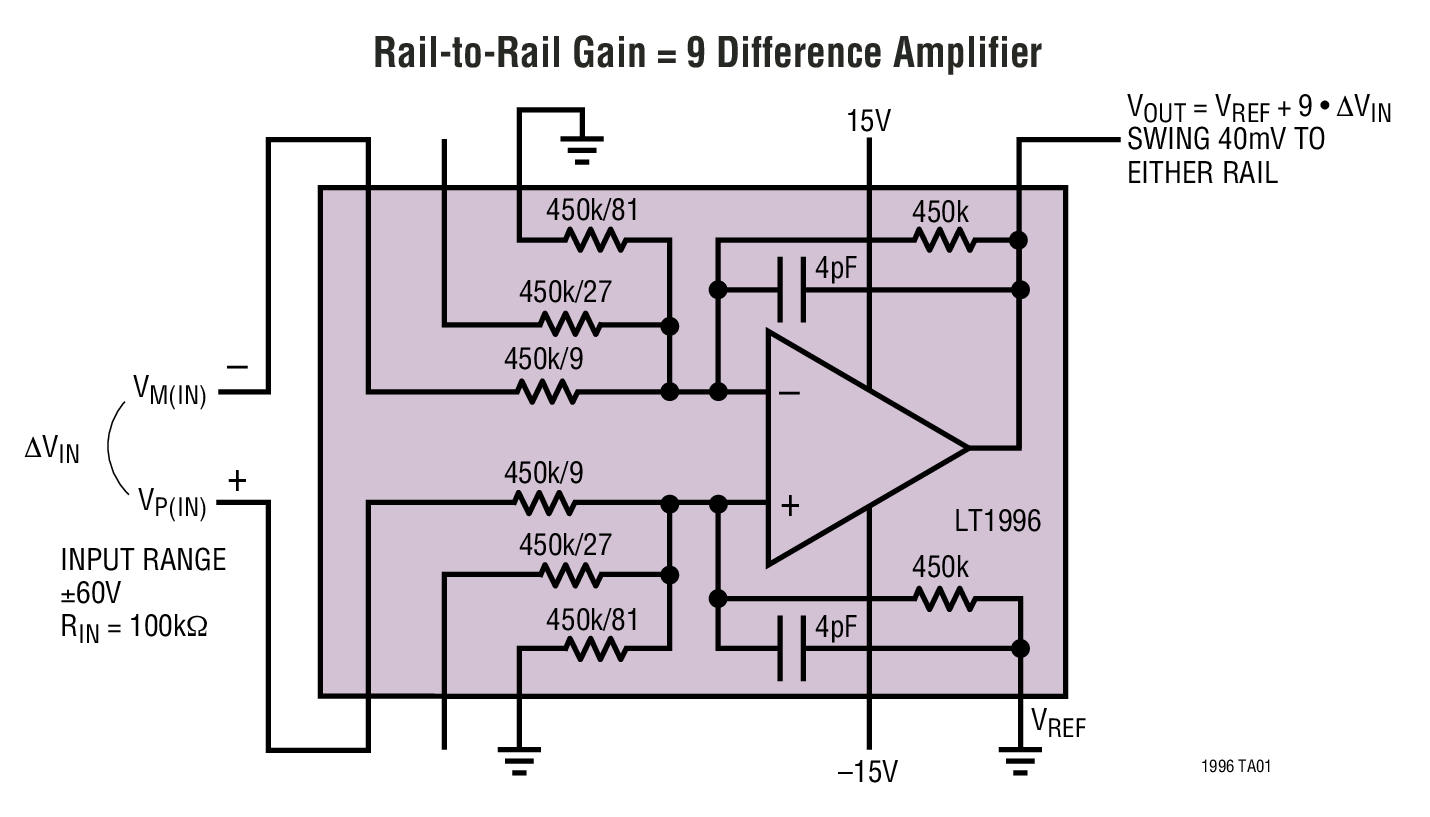

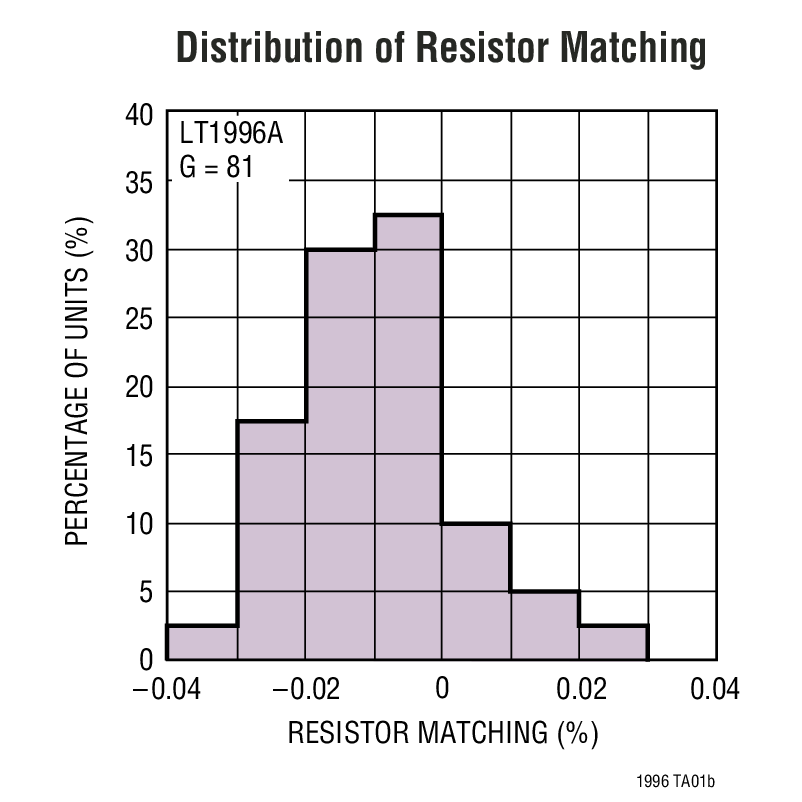

LT1996 - 典型应用图例：
LT1996典型应用图例一
LT1996典型应用图例二

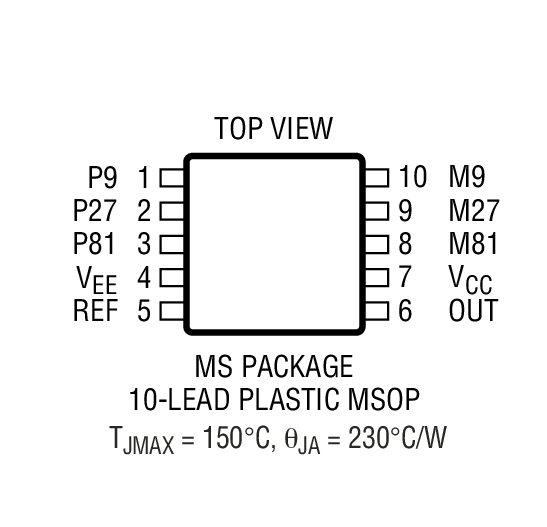

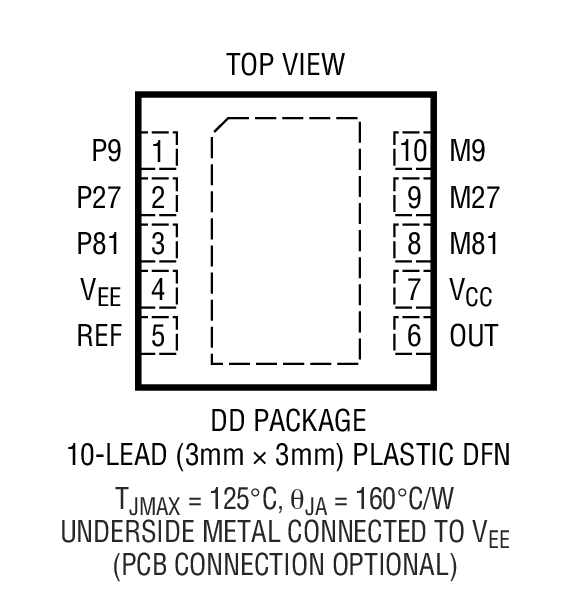

LT1996 - 封装图解：
LT1996封装图解一
LT1996封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1996介绍

LT1996 - LT1996是Precision, 100μA Gain Selectable Amplifier

LT1996是LINEAR凌力尔特公司的一款精准放大器产品，LT1996是LT1996是Precision, 100μA Gain Selectable Amplifier，本站介绍了LT1996的封装应用图解、特点和优点、功能等，并给出了与LT1996相关的LINEAR元器件型号供参考。

LT1996 - LT1996是Precision, 100μA Gain Selectable Amplifier - 精准放大器 - 信号调理 - 凌力尔特

LT1996 - Precision, 100μA Gain Selectable Amplifier

LT1996 - Precision, 100μA Gain Selectable Amplifier - Linear Technology（凌力尔特）

功能描述
The LT1996 combines a precision operational amplifier with eight precision resistors to form a one-chip solution for accurately amplifying voltages. Gains from -117 to 118 with a gain accuracy of 0.05% can be achieved without any external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a common mode rejection ratio of greater than 80dB.

The amplifier features a 50µV maximum input offset voltage and a gain bandwidth product of 560kHz. The device operates from any supply voltage from 2.7V to 36V and draws only 100µA supply current on a 5V supply. The output swings to within 40mV of either supply rail.

The internal resistors have excellent matching characteristics; variation is 0.05% over temperature with a guaranteed matching temperature coefficent of less than 3ppm/°C. The resistors are also extremely stable over voltage, exhibiting a nonlinearity of less than 10ppm.

The LT1996 is fully specified at 5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and DFN packages. For an amplifier with selectable gains from -13 to 14, see the LT1991 data sheet.

特点
  • Download "The Configurator" Software
  • Pin Configurable as a Difference Amplifier,
  • Inverting and Noninverting Amplifier
  • Difference AmplifierGain Range 9 to 117CMRR >80dB
  • Noninverting AmplifierGain Range 0.008 to 118
  • Inverting AmplifierGain Range -0.08 to -117
  • Gain Error: <0.05%
  • Gain Drift: < 3ppm/°C
  • Wide Supply Range: Single 2.7V to Split ±18V
  • Micropower Operation: 100µA Supply
  • Input Offset Voltage: 50µV (Max)
  • Gain Bandwidth Product: 560kHz
  • Rail-to-Rail Output
  • Space Saving 10-Lead MSOP and DFN Packages
    • 应用
  • Handheld Instrumentation
  • Medical Instrumentation
  • Strain Gauge Amplifiers
  • Differential to Single-Ended Conversion
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1996ACDD 3x3 DFN-10 C $2.52 $2.09
    LT1996ACDD#PBF 3x3 DFN-10 C $2.52 $2.09
    LT1996ACDD#TR 3x3 DFN-10 C $2.15
    LT1996ACDD#TRPBF 3x3 DFN-10 C $2.15
    LT1996ACMS MS-10 C $2.28 $1.89
    LT1996ACMS#PBF MS-10 C $2.28 $1.89
    LT1996ACMS#TR MS-10 C $1.95
    LT1996ACMS#TRPBF MS-10 C $1.95
    LT1996AIDD 3x3 DFN-10 I $3.01 $2.49
    LT1996AIDD#PBF 3x3 DFN-10 I $3.01 $2.49
    LT1996AIDD#TR 3x3 DFN-10 I $2.55
    LT1996AIDD#TRPBF 3x3 DFN-10 I $2.55
    LT1996AIMS MS-10 I $2.77 $2.29
    LT1996AIMS#PBF MS-10 I $2.77 $2.29
    LT1996AIMS#TR MS-10 I $2.35
    LT1996AIMS#TRPBF MS-10 I $2.35
    LT1996CDD 3x3 DFN-10 C $2.10 $1.59
    LT1996CDD#PBF 3x3 DFN-10 C $2.10 $1.59
    LT1996CDD#TR 3x3 DFN-10 C $1.65
    LT1996CDD#TRPBF 3x3 DFN-10 C $1.65
    LT1996CMS MS-10 C $1.80 $1.39
    LT1996CMS#PBF MS-10 C $1.80 $1.39
    LT1996CMS#TR MS-10 C $1.45
    LT1996CMS#TRPBF MS-10 C $1.45
    LT1996IDD 3x3 DFN-10 I $2.30 $1.90
    LT1996IDD#PBF 3x3 DFN-10 I $2.30 $1.90
    LT1996IDD#TR 3x3 DFN-10 I $1.96
    LT1996IDD#TRPBF 3x3 DFN-10 I $1.96
    LT1996IMS MS-10 I $2.05 $1.69
    LT1996IMS#PBF MS-10 I $2.05 $1.69
    LT1996IMS#TR MS-10 I $1.75
    LT1996IMS#TRPBF MS-10 I $1.75
