当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC3400-1

LTC3400-1技术文档下载：

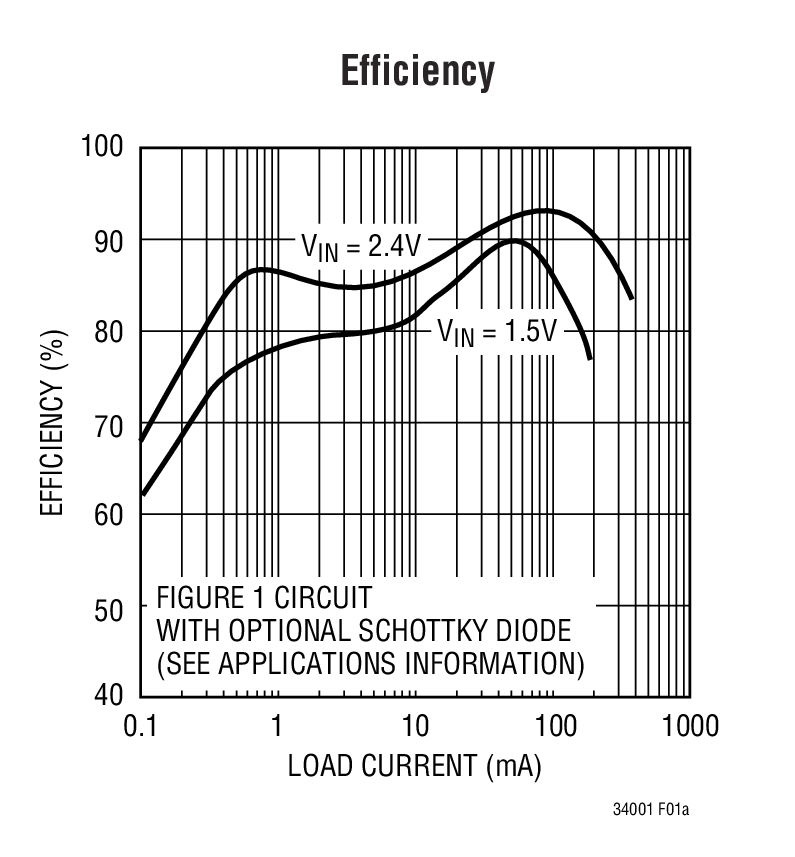

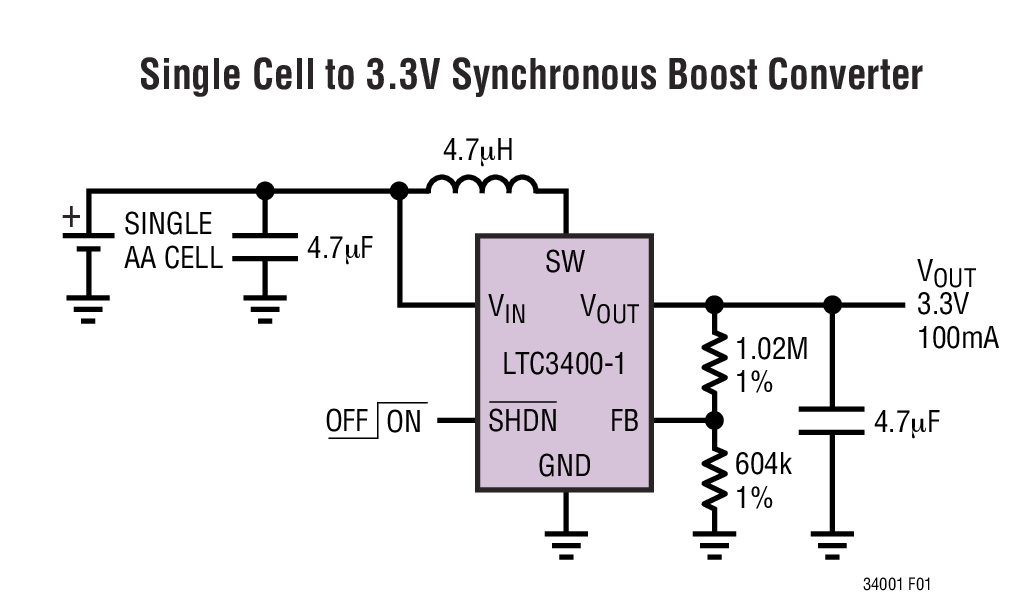

LTC3400-1 - 典型应用图例：

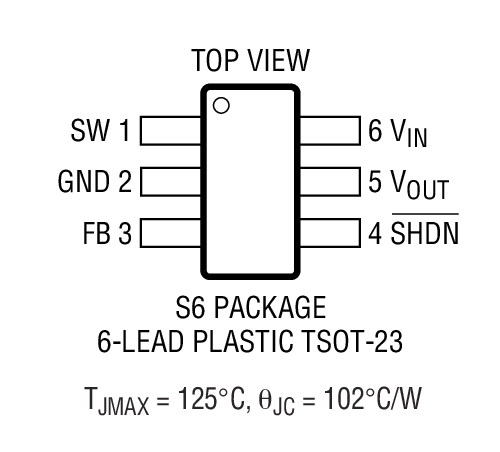

LTC3400-1 - 封装图解：

LINEAR凌力尔特芯片：

LTC3400-1 - LTC3400-1是600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT

LTC3400-1是LINEAR凌力尔特公司的一款微功率升压产品，LTC3400-1是LTC3400-1是600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT，本站介绍了LTC3400-1的封装应用图解、特点和优点、功能等，并给出了与LTC3400-1相关的LINEAR元器件型号供参考。

LTC3400-1 - LTC3400-1是600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT - 微功率升压 - 电源管理 - 凌力尔特

LTC3400-1 - 600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT

LTC3400-1 - 600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT - Linear Technology（凌力尔特）

功能描述

The LTC3400-1 is a synchronous, fixed frequency, stepup DC/DC converter delivering high efficiency in a 6-lead ThinSOT? package. Capable of supplying 3.3V at 100mA from a single AA cell input, the device contains an internal NMOS switch and PMOS synchronous rectifier.

A switching frequency of 1.2MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. The current mode PWM design is internally compensated, reducing external parts count. The LTC3400-1 features automatic shifting to power saving Burst Mode operation at light loads. In shutdown, VOUT and VIN are connected, which allows the input battery to be used for backup power. The LTC3400-1 features low shutdown current of under 1μA.

The LTC3400-1 is offered in the low profile (1mm) SOT-23 package.

US Patent Numbers 5,481,178; 6,580,258; 6,304,066; 6,127,815; 6,498,466; 6,611,131.

特点

Up to 92% Efficiency

Generates 3.3V at 100mA from a Single AA Cell

Low Start-Up Voltage: 0.85V

VOUT Connected to VIN in Shutdown

Internal Synchronous Rectifier

2.5V to 5V Output Range

Automatic Burst Mode Operation

Logic Controlled Shutdown (<1μA)

Antiringing Control Minimizes EMI

Tiny External Components

Low Profile (1mm) SOT-23 Package

应用

Pagers

MP3 Players

Digital Cameras

LCD Bias Supplies

Handheld Instruments

Wireless Handsets

GPS Receivers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC3400ES6-1	SOT-23	E	$2.84
LTC3400ES6-1#TR	SOT-23	E	$2.84	$2.01
LTC3400ES6-1#TRM	SOT-23	E	$2.84	$2.03
LTC3400ES6-1#TRMPBF	SOT-23	E	$2.84	$2.03
LTC3400ES6-1#TRPBF	SOT-23	E	$2.84	$2.01
